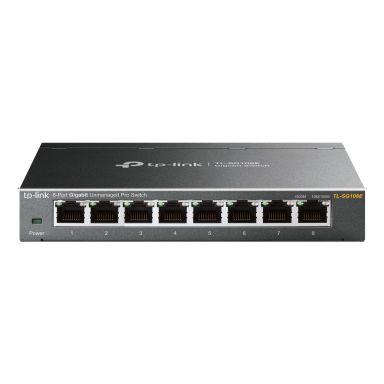

TP-LINK 8-Port Gigabit Easy Smart Switch
In Stock
|
£28.29
£33.95 (Inc. VAT)
Network
IGMP snooping
Yes
Networking standards
IEEE 802.1Q-IEEE 802.1ab-IEEE 802.1p-IEEE 802.3-IEEE 802.3u-IEEE 802.3x
VLAN support
Yes
Rate limiting
Yes
Port mirroring
Yes
Number of VLANs
32
Link aggregation
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Virtual LAN features
VLAN support
Yes
Number of VLANs
32
Data transmission
Number of multicast groups filtered
128
Number of VLANs
32
Jumbo frames
16000
Throughput
11.9 Mpps
Packet buffer memory
1.5 MB
MAC address table
4000 entries
Switching capacity
16 Gbit/s
Store-and-forward
Yes
Number of queues
4
Jumbo frames support
Yes
Performance
Packet buffer memory
1.5 MB
Auto-negotiation
Yes
Technical details
Product colour
Black
Housing material
Metal
Management features
Switch type
Unmanaged
Web-based management
Yes
Quality of Service (QoS) support
Yes
Switch layer
L2
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Security
IGMP snooping
Yes
Multicast features
Number of multicast groups filtered
128
Certificates
Certification
FCC- CE- RoHS
Memory
Packet buffer memory
1.5 MB
Design
Product colour
Black
LED indicators
Yes
Housing material
Metal
Certification
FCC- CE- RoHS
Indication
LED indicators
Yes
Power
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Input current
0.6 A
DC input voltage
9 V
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
12.55 BTU/h
Weight & dimensions
Width
158 mm
Depth
101 mm
Height
25 mm
Packaging data
Package type
Box
User guide
Yes
Cables included
AC
Packaging content
User guide
Yes
Cables included
AC
