0 Reviews
| Add your review
In Stock
|
£111.95
£134.34 (Inc. VAT)
Ports & interfaces | |
---|---|
Basic switching RJ-45 Ethernet ports quantity | 16 |
Gigabit Ethernet (copper) ports quantity | 16 |
Network | |
IGMP snooping | Yes |
Cable length detection | Yes |
Full duplex | Yes |
VLAN support | Yes |
Rate limiting | Yes |
Port mirroring | Yes |
Number of VLANs | 32 |
Link aggregation | Yes |
Flow control support | Yes |
Broadcast storm control | Yes |
Auto MDI/MDI-X | Yes |
Auto-negotiation | Yes |
Virtual LAN features | |
VLAN support | Yes |
Number of VLANs | 32 |
Data transmission | |
Number of VLANs | 32 |
Jumbo frames | 9000 |
Packet buffer memory | 4.1 MB |
MAC address table | 8000 entries |
Switching capacity | 32 Gbit/s |
Store-and-forward | Yes |
Number of queues | 4 |
Jumbo frames support | Yes |
Forwarding rate | 23.81 Mpps |
Performance | |
Packet buffer memory | 4.1 MB |
Stackable | Yes |
Auto-negotiation | Yes |
Technical details | |
Product colour | Black |
Stackable | Yes |
Housing material | Metal |
Management features | |
Switch type | Unmanaged |
Quality of Service (QoS) support | Yes |
Security | |
Loop protection | Yes |
IGMP snooping | Yes |
Memory | |
Packet buffer memory | 4.1 MB |
Design | |
Wall mountable | Yes |
Product colour | Black |
Stackable | Yes |
LED indicators | Yes |
Housing material | Metal |
Indication | |
LED indicators | Yes |
Power | |
Power consumption (max) | 144.28 W |
Power supply included | Yes |
AC input voltage | 220 V |
AC input frequency | 50 Hz |
Power consumption (typical) | 11.72 W |
Input current | 0.6 A |
DC input voltage | 9 V |
Power over Ethernet (PoE) | |
Power over Ethernet (PoE) | No |
Operational conditions | |
Storage temperature (T-T) | -40 - 70 °C |
Storage relative humidity (H-H) | 5 - 90% |
Operating temperature (T-T) | 0 - 40 °C |
Operating relative humidity (H-H) | 10 - 90% |
Heat dissipation | 490.55 BTU/h |
Weight & dimensions | |
Width | 286 mm |
Depth | 111.7 mm |
Height | 25.4 mm |

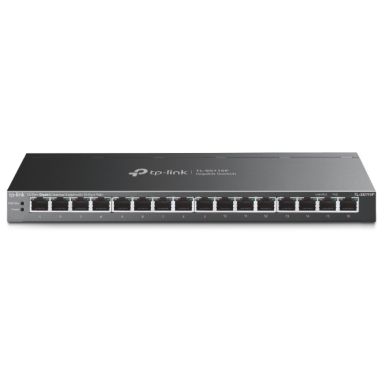

TP-Link TL-SG116P 16-Port Gigabit Desktop Switch with 16-Port PoE+
