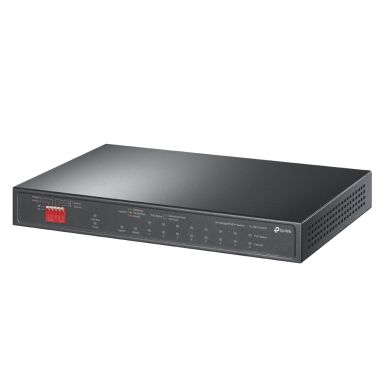

TP-Link 10-Port Gigabit Desktop Switch with 6-Port PoE+ and 2-Port PoE++
In Stock
|
$137.52
$165.02 (Inc. VAT)
Ports & interfaces
Copper ethernet cabling technology
10BASE-T, 100BASE-TX
Basic switching RJ-45 Ethernet ports quantity
10
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity
1
Gigabit Ethernet (copper) ports quantity
10
Network
IGMP snooping
Yes
Cable types supported
Cat3, Cat4, Cat5, Cat5e
MAC address auto-learning supported
Yes
MAC address auto-aging supported
Yes
Copper ethernet cabling technology
10BASE-T, 100BASE-TX
Networking standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
No
Auto-negotiation
Yes
Performance
Auto-negotiation
Yes
Harmonized System (HS) code
85176990
Fanless
Yes
Technical details
Product colour
Black
Housing material
Steel
Rack mounting
No
Management features
Switch type
Unmanaged
Quality of Service (QoS) support
Yes
Data transmission
MAC address table
4000 entries
Switching capacity
20 Gbit/s
Store-and-forward
Yes
Forwarding rate
14.88 Mpps
Security
IGMP snooping
Yes
Certificates
Certification
FCC, CE, RoHS
Design
Product colour
Black
LED indicators
Yes
Housing material
Steel
Certification
FCC, CE, RoHS
Rack mounting
No
Indication
LED indicators
Yes
Power
Power consumption (max)
144.1 W
Power supply included
Yes
AC input voltage
90 - 220 V
AC input frequency
50 Hz
Number of power supply units
1
Input voltage
53.5 V
Input current
2.43 A
Power source
DC/PoE
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity
2
Total Power over Ethernet (PoE) budget
123 W
Power over Ethernet (PoE)
Yes
Power over Ethernet 4PPoE (PoE++) ports quantity
6
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
482.17 BTU/h
Weight & dimensions
Width
209 mm
Depth
126 mm
Height
26 mm
Packaging data
Package type
Box
User guide
Yes
Cables included
AC
Logistics data
Harmonized System (HS) code
85176990
Other features
Input voltage
53.5 V
Packaging content
User guide
Yes
Cables included
AC
TP-Link 10-Port Gigabit Desktop Switch with 6-Port PoE+ and 2-Port PoE++
