0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
Performance | |
---|---|
Packet buffer memory | 4.1 MB |
Auto-negotiation | Yes |
Harmonized System (HS) code | 85176990 |
Technical details | |
Form factor | 1U |
Product colour | Black |
Housing material | Metal |
Rack mounting | Yes |
Management features | |
Switch type | Unmanaged |
Quality of Service (QoS) support | Yes |
Ports & interfaces | |
Basic switching RJ-45 Ethernet ports quantity | 18 |
Combo SFP ports quantity | 2 |
Gigabit Ethernet (copper) ports quantity | 18 |
Network | |
Flow control support | Yes |
Ethernet LAN data rates | 101001000 Mbit/s |
Auto MDI/MDI-X | Yes |
10G support | No |
Auto-negotiation | Yes |
Data transmission | |
Jumbo frames | 10000 |
Packet buffer memory | 4.1 MB |
MAC address table | 8000 entries |
Switching capacity | 36 Gbit/s |
Jumbo frames support | Yes |
Forwarding rate | 26.78 Mpps |
Certificates | |
Certification | CE FCC RoHS |
Memory | |
Packet buffer memory | 4.1 MB |
Design | |
Form factor | 1U |
Product colour | Black |
LED indicators | Yes |
Housing material | Metal |
Certification | CE FCC RoHS |
Rack mounting | Yes |
Number of fans | 2 fan(s) |
Indication | |
LED indicators | Yes |
Power | |
Power consumption (max) | 286.64 W |
Power supply included | Yes |
AC input voltage | 100 - 240 V |
AC input frequency | 50 - 60 Hz |
Power source | AC |
Power over Ethernet (PoE) | |
Power over Ethernet (PoE) power per port | 30 W |
Power over Ethernet plus (PoE+) ports quantity | 16 |
Total Power over Ethernet (PoE) budget | 250 W |
Power over Ethernet (PoE) | Yes |
Operational conditions | |
Storage temperature (T-T) | -40 - 70 °C |
Storage relative humidity (H-H) | 5 - 90% |
Operating temperature (T-T) | 0 - 50 °C |
Operating relative humidity (H-H) | 10 - 90% |
Heat dissipation | 977.44 BTU/h |
Weight & dimensions | |
Width | 440 mm |
Depth | 180 mm |
Height | 44 mm |

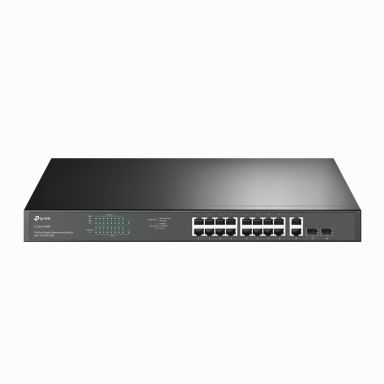

TP-Link TL-SG1218MP network switch Unmanaged Gigabit Ethernet
