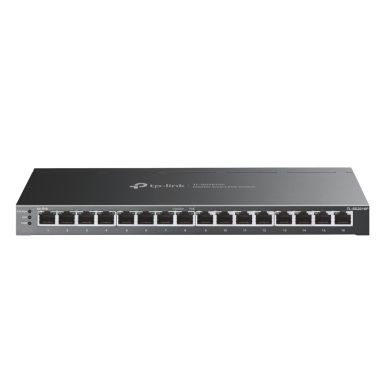

TP-Link JetStream 16-Port Gigabit Smart Switch with 8-Port PoE+
In Stock
|
$165.43
$198.52 (Inc. VAT)
Management features
Multicast support
Yes
ARP inspection
Yes
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
MIB support
RFC1213, RFC1493, RFC2674, RFC2620, RFC2618, RFC2925, RFC1757
Switch layer
L2/L3/L4
Configuring Location Settings (CLI)
Yes
Cloud-managed
Yes
Ports & interfaces
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Power connector
DC-in jack
Network
IGMP snooping
Yes
GARP VLAN Registration Protocol (GVRP)
Yes
Cable types supported
Cat3, Cat4, Cat5, Cat5e
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards
IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3x
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Number of VLANs
4000
Link aggregation
Yes
Flow control support
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
10G support
No
Auto-negotiation
Yes
Virtual LAN features
Multicast VLAN, Tagged VLAN, Voice VLAN
Virtual LAN features
VLAN support
Yes
Number of VLANs
4000
Virtual LAN features
Multicast VLAN, Tagged VLAN, Voice VLAN
Data transmission
Number of VLANs
4000
Multicast Listener Discovery (MLD) snooping
MLD v1, MLD v2
Jumbo frames
9000
Packet buffer memory
4.1 MB
MAC address table
8000 entries
Switching capacity
16 Gbit/s
Number of queues
8
Jumbo frames support
Yes
IPv4 & IPv6 features
IPv4 & IPv6 features
Dual stack IPv4/IPv6
Performance
Packet buffer memory
4.1 MB
Auto-negotiation
Yes
Minimum system requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7/8/10/11, MAC OS, NetWare, UNIX, Linux
Firmware upgradeable
Yes
Fanless
Yes
Power
Power connector
DC-in jack
Power consumption (max)
146.5 W
Input current
1.31 A
DC input voltage
53.5 V
Power source
DC/PoE
Technical details
Product colour
Black
Housing material
Metal
Firmware upgradeable
Yes
Security
IP-MAC-Port binding
Yes
BPDU filtering/protection
Yes
Authentication
Guest VLAN, MAC-based authentication, Port-based authentication
SSH/SSL support
Yes
Security algorithms
EAP-MD5, HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS
MAC address filtering
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
Queue scheduling algorithms
SP, Weighted Round Robin (WRR)
MAC address entries
Dynamic MAC address entries, Static MAC address entries
DHCP features
DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Multicast features
Multicast support
Yes
Multicast Listener Discovery (MLD) snooping
MLD v1, MLD v2
Protocols
Supported network protocols
ICMP, TCPv6, UDPv6, Ping6, Tracert6, Telnet (v6), TFTP, TCP/UDP, DSCP/IP, SSLv3, TLS 1.2
GARP VLAN Registration Protocol (GVRP)
Yes
IPv4 & IPv6 features
Dual stack IPv4/IPv6
Certificates
Certification
CE, FCC, RoHS
Memory
Packet buffer memory
4.1 MB
Design
Product colour
Black
LED indicators
PoE, Power, System
Housing material
Metal
Certification
CE, FCC, RoHS
Indication
LED indicators
PoE, Power, System
Mobile network
GARP VLAN Registration Protocol (GVRP)
Yes
System requirements
Minimum system requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7/8/10/11, MAC OS, NetWare, UNIX, Linux
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
120 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
499.98 BTU/h
Weight & dimensions
Width
286 mm
Depth
111.7 mm
Height
25.4 mm
Packaging data
Package width
227 mm
Package depth
434 mm
Package height
70 mm
Package weight
1.94 kg
Manual
Yes
Other features
Ethernet LAN data rates
10,100,1000 Mbit/s
Packaging content
Manual
Yes
TP-Link JetStream 16-Port Gigabit Smart Switch with 8-Port PoE+
