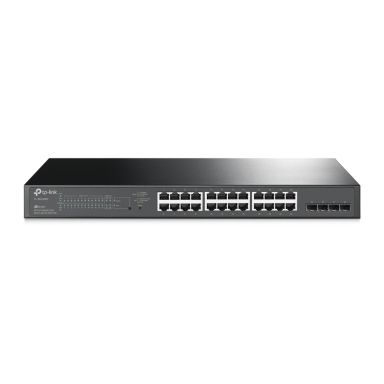

TP-LINK JetStream 28-Port Gigabit Smart PoE Switch with 24-Port PoE+
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Management features | |
|---|---|
| Multicast support | Yes |
| ARP inspection | Yes |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Copper ethernet cabling technology | 10BASE-T-10BASE-TX |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Fiber ports quantity | 4 |
| Fiber optic connector | SFP |
| Network | |
| IGMP snooping | Yes |
| Cable types supported | Cat3-Cat4-Cat5-Cat5e |
| Copper ethernet cabling technology | 10BASE-T-10BASE-TX |
| Networking standards | IEEE 802.1D-IEEE 802.1Q-IEEE 802.1p-IEEE 802.1s-IEEE 802.1w-IEEE 802.1x-IEEE 802.3ab-IEEE 802.3ad-IEEE 802.3af-IEEE 802.3at-IEEE 802.3az-IEEE 802.3i-IEEE 802.3u-IEEE 802.3x-IEEE 802.3z |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4000 |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Virtual LAN features | MAC address-based VLAN-Protocol-based VLAN-Voice VLAN |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Virtual LAN features | MAC address-based VLAN-Protocol-based VLAN-Voice VLAN |
| Data transmission | |
| Number of VLANs | 4000 |
| Jumbo frames | 9000 |
| MAC address table | 8000 entries |
| Switching capacity | 56 Gbit/s |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Forwarding rate | 41.7 Mpps |
| Optical fiber | |
| Fiber optic connector | SFP |
| Fiber ethernet cabling technology | 1000BASE-X |
| Performance | |
| Auto-negotiation | Yes |
| Firmware upgradeable | Yes |
| Technical details | |
| Product colour | Black |
| Firmware upgradeable | Yes |
| Rack mounting | Yes |
| Security | |
| Loop protection | Yes |
| IP-MAC-Port binding | Yes |
| BPDU filtering/protection | Yes |
| Security algorithms | HTTPS-SNMP-SNMPv2-SNMPv3-SSH-SSH-2-SSL/TLS |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Queue scheduling algorithms | SP- WRR+SP- Weighted Round Robin (WRR) |
| Authentication type | RADIUS |
| DHCP features | DHCP relay-DHCP server-DHCP snooping-DHCPv6 client |
| Multicast features | |
| Multicast support | Yes |
| Certificates | |
| Certification | CE- FCC- RoHS |
| Design | |
| Product colour | Black |
| Certification | CE- FCC- RoHS |
| Rack mounting | Yes |
| Number of fans | 2 fan(s) |
| Power | |
| Power consumption (max) | 308.6 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 1052.94 BTU/h |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 220 mm |
| Height | 44 mm |
| Packaging data | |
| Rack mount kit | Yes |
| User guide | Yes |
| Cables included | AC |
| Packaging content | |
| Rack mount kit | Yes |
| User guide | Yes |
| Cables included | AC |
