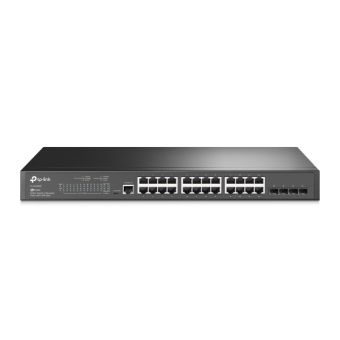

TP-LINK JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots
0 Reviews
| Add your review
In Stock
|
£124.63
£149.56 (Inc. VAT)
| Management features | |
|---|---|
| Multicast support | Yes |
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| MIB support | Yes |
| Switch layer | L2 |
| Configuring Location Settings (CLI) | Yes |
| Cloud-managed | Yes |
| Network | |
| IGMP snooping | Yes |
| IGMP proxy | Yes |
| Active link detection | Yes |
| Networking standards | IEEE 802.1D-IEEE 802.1Q-IEEE 802.1ad-IEEE 802.1p-IEEE 802.1s-IEEE 802.1w-IEEE 802.1x-IEEE 802.3x |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10-100-1000 Mbit/s |
| Broadcast storm control | Yes |
| 10G support | No |
| Policy-based routing | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Rack mounting | Yes |
| Ports & interfaces | |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45/Micro-USB |
| Data transmission | |
| Number of static routes | 48 |
| MAC address table | 8000 entries |
| Switching capacity | 56 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 41.66 Mpps |
| Security | |
| Loop protection | Yes |
| Authentication | MAC-based authentication- Port-based authentication |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| IGMP proxy | Yes |
| DHCP features | DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Rack mounting | Yes |
| Indication | |
| LED indicators | Yes |
| Power | |
| Power consumption (max) | 19.22 W |
| Power supply included | No |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 65.58 BTU/h |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Packaging data | |
| Quick start guide | Yes |
| Cables included | LAN (RJ-45) |
| Other features | |
| Ethernet LAN data rates | 10-100-1000 Mbit/s |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | LAN (RJ-45) |
