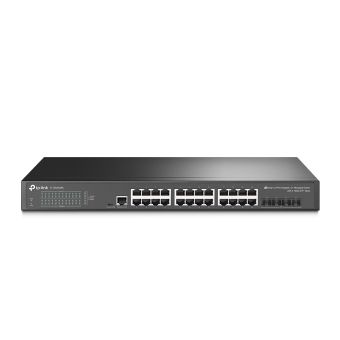

TP-Link JetStream 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots

Multicast support

Yes

ARP inspection

Yes

Switch type

Managed

Web-based management

Yes

System event log

Yes

Quality of Service (QoS) support

Yes

MIB support

Yes

Switch layer

L2+/L3

Configuring Location Settings (CLI)

Yes

Cloud-managed

Yes

IGMP snooping

Yes

GARP VLAN Registration Protocol (GVRP)

Yes

Active link detection

Yes

Networking standards

IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z

Head-of-line (HOL) blocking

Yes

VLAN support

Yes

Spanning tree protocol

Yes

Rate limiting

Yes

Port mirroring

Yes

Number of VLANs

4000

Link aggregation

Yes

Flow control support

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

Broadcast storm control

Yes

10G support

Yes

Policy-based routing

Yes

Virtual LAN features

Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN

IPv6 routes

48

IPv4 routes

48

VLAN support

Yes

Number of VLANs

4000

Virtual LAN features

Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN

Number of VLANs

4000

Multicast Listener Discovery (MLD) snooping

Yes

Jumbo frames

9000

Number of static routes

48

Packet buffer memory

12 MB

MAC address table

16000 entries

Switching capacity

128 Gbit/s

Store-and-forward

Yes

Jumbo frames support

Yes

Static route

Yes

Forwarding rate

95.23 Mpps

IPv4 & IPv6 features

IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert

Packet buffer memory

12 MB

Harmonized System (HS) code

85176990

Fanless

Yes

Power connector

AC-in jack

Power consumption (max)

23.6 W

Power supply included

Yes

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Power source

AC

Form factor

1U

Product colour

Black

Rack mounting

Yes

SFP+ module slots quantity

4

Basic switching RJ-45 Ethernet ports quantity

24

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Gigabit Ethernet (copper) ports quantity

24

Console port

RJ-45/micro-USB

Power connector

AC-in jack

Loop protection

Yes

IP-MAC-Port binding

Yes

BPDU filtering/protection

Yes

Authentication

Guest VLAN, MAC-based authentication, Port-based authentication

SSH/SSL support

Yes

IGMP snooping

Yes

Access Control List (ACL)

Yes

Authentication type

AAA, RADIUS, TACACS+

DHCP features

DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping

Multicast support

Yes

Multicast Listener Discovery (MLD) snooping

Yes

Management protocols

SNMPv1/v2c/v3, SNTP

GARP VLAN Registration Protocol (GVRP)

Yes

IPv4 & IPv6 features

IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert

Packet buffer memory

12 MB

Form factor

1U

Product colour

Black

LED indicators

Yes

Rack mounting

Yes

LED indicators

Yes

GARP VLAN Registration Protocol (GVRP)

Yes

Power over Ethernet (PoE)

No

Storage temperature (T-T)

-40 - 70 °C

Storage relative humidity (H-H)

5 - 90%

Operating temperature (T-T)

0 - 45 °C

Operating relative humidity (H-H)

10 - 90%

Heat dissipation

80.353 BTU/h

Width

440 mm

Depth

180 mm

Height

44 mm

Quick start guide

Yes

Package width

528 mm

Package depth

250 mm

Package height

80 mm

Package weight

2.69 kg

Cables included

LAN (RJ-45)

Harmonized System (HS) code

85176990

Ethernet LAN data rates

10,100,1000 Mbit/s

Quick start guide

Yes

Cables included

LAN (RJ-45)
