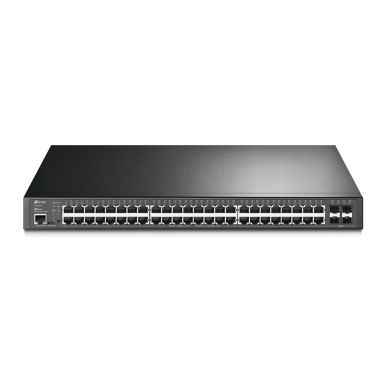

TP-Link JetStream 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+
In Stock
|
$572.78
$687.34 (Inc. VAT)
Management features
Reset button
Yes
Multicast support
Yes
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
MIB support
Yes
Switch layer
L2/L3
Cloud-managed
Yes
Network
IGMP snooping
Yes
GARP VLAN Registration Protocol (GVRP)
Yes
Active link detection
Yes
Networking standards
IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
Head-of-line (HOL) blocking
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Number of VLANs
4000
Link aggregation
Yes
IP routing
Yes
Flow control support
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Broadcast storm control
Yes
10G support
No
Policy-based routing
Yes
Virtual LAN features
MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Virtual LAN features
VLAN support
Yes
Number of VLANs
4000
Virtual LAN features
MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Data transmission
Number of VLANs
4000
Jumbo frames
9000
Number of static routes
48
Packet buffer memory
12 MB
MAC address table
16000 entries
Switching capacity
104 Gbit/s
Store-and-forward
Yes
Jumbo frames support
Yes
Static route
Yes
Forwarding rate
77.4 Mpps
Performance
Packet buffer memory
12 MB
Harmonized System (HS) code
85176990
Power
Power connector
AC-in jack
Power consumption (max)
485.4 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power source
AC
Technical details
Form factor
1U
Product colour
Black
Rack mounting
Yes
Ports & interfaces
SFP module slots quantity
4
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Console port
RJ-45/micro-USB
Power connector
AC-in jack
Security
Loop protection
Yes
BPDU filtering/protection
Yes
Authentication
MAC-based authentication, Port-based authentication
SSH/SSL support
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
Password protection
Yes
DHCP features
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Multicast features
Multicast support
Yes
Protocols
Management protocols
SNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)
Yes
Memory
Packet buffer memory
12 MB
Design
Reset button
Yes
Form factor
1U
Product colour
Black
LED indicators
Yes
Rack mounting
Yes
Number of fans
3 fan(s)
Indication
LED indicators
Yes
Mobile network
GARP VLAN Registration Protocol (GVRP)
Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet plus (PoE+) ports quantity
48
Total Power over Ethernet (PoE) budget
384 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
1656.19 BTU/h
Weight & dimensions
Width
440 mm
Depth
330 mm
Height
44 mm
Packaging data
Package type
Box
Quick start guide
Yes
Package width
440 mm
Package depth
528 mm
Package height
100 mm
Package weight
6.77 kg
Manual
Yes
Cables included
AC
Logistics data
Harmonized System (HS) code
85176990
Other features
Ethernet LAN data rates
10,100,1000 Mbit/s
Packaging content
Quick start guide
Yes
Manual
Yes
Cables included
AC
TP-Link JetStream 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+
