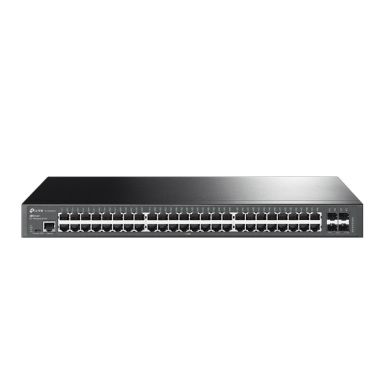

TP-Link JetStream 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
In Stock
|
$464.09
$556.91 (Inc. VAT)
Management features
Multicast support
Yes
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
MIB support
RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618,
Switch layer
L2+
Public MIB
Yes
Huawei-proprietary MIB
Yes
Configuring Location Settings (CLI)
Yes
Cloud-managed
Yes
Network
IGMP snooping
Yes
GARP VLAN Registration Protocol (GVRP)
Yes
IGMP proxy
Yes
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad
Head-of-line (HOL) blocking
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Number of VLANs
4000
Link aggregation
Yes
Flow control support
Yes
Broadcast storm control
Yes
10G support
Yes
Virtual LAN features
Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN
IPv6 routes
48
IPv4 routes
48
Virtual LAN features
VLAN support
Yes
Number of VLANs
4000
Virtual LAN features
Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN
Data transmission
Number of VLANs
4000
Multicast Listener Discovery (MLD) snooping
Yes
Jumbo frames
9000
Number of static routes
48
Packet buffer memory
12 MB
MAC address table
16000 entries
Switching capacity
176 Gbit/s
Jumbo frames support
Yes
Static route
Yes
Forwarding rate
130.9 Mpps
IPv4 & IPv6 features
IPv4 & IPv6 features
IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
Performance
Packet buffer memory
12 MB
Public MIB
Yes
Huawei-proprietary MIB
Yes
Harmonized System (HS) code
85176990
Power
Power connector
AC-in jack
Power consumption (max)
32.72 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power source
AC
Technical details
Form factor
1U
Product colour
Black
Rack mounting
Yes
Public MIB
Yes
Huawei-proprietary MIB
Yes
Ports & interfaces
SFP+ module slots quantity
4
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Console port
RJ-45/Micro-USB
Power connector
AC-in jack
Security
Loop protection
Yes
IP-MAC-Port binding
Yes
BPDU filtering/protection
Yes
Authentication
Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication
Static port security
Yes
SSH/SSL support
Yes
MAC address filtering
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
Queue scheduling algorithms
SP, WRR+SP, Weighted Round Robin (WRR)
Password protection
Yes
Authentication type
AAA, RADIUS, TACACS+
IGMP proxy
Yes
DHCP features
DHCP client, DHCP relay, DHCP server
Multicast features
Multicast support
Yes
Multicast Listener Discovery (MLD) snooping
Yes
Protocols
Management protocols
SNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)
Yes
IPv4 & IPv6 features
IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
Certificates
Certification
CE, FCC, RoHS
Memory
Packet buffer memory
12 MB
Design
Form factor
1U
Product colour
Black
LED indicators
Yes
Certification
CE, FCC, RoHS
Rack mounting
Yes
Indication
LED indicators
Yes
Mobile network
GARP VLAN Registration Protocol (GVRP)
Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 45 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
111.65 BTU/h
Weight & dimensions
Width
440 mm
Depth
220 mm
Height
44 mm
Packaging data
Quick start guide
Yes
Package width
528 mm
Package depth
336 mm
Package height
100 mm
Package weight
4 kg
Cables included
AC
Rack rails
Yes
Logistics data
Harmonized System (HS) code
85176990
Packaging content
Quick start guide
Yes
Cables included
AC
