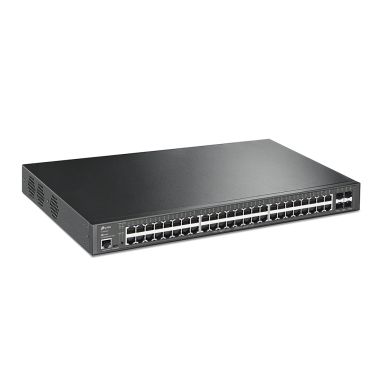

TP-Link JetStream 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 48-Port PoE+

ARP inspection

Yes

Reset button

Yes

Switch type

Managed

Web-based management

Yes

System event log

Yes

Quality of Service (QoS) support

Yes

Multicast support

Yes

Switch layer

L2+

Configuring Location Settings (CLI)

Yes

Cloud-managed

Yes

SFP+ module slots quantity

4

Basic switching RJ-45 Ethernet ports quantity

48

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Console port

RJ-45/Micro-USB

Power connector

AC-in jack

Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z

Head-of-line (HOL) blocking

Yes

VLAN support

Yes

Spanning tree protocol

Yes

Rate limiting

Yes

Port mirroring

Yes

Link aggregation

Yes

Flow control support

Yes

Broadcast storm control

Yes

10G support

Yes

IGMP snooping

Yes

Jumbo frames

9000

Packet buffer memory

12 MB

MAC address table

16000 entries

Switching capacity

176 Gbit/s

Store-and-forward

Yes

Jumbo frames support

Yes

Forwarding rate

130.9 Mpps

IP-MAC-Port binding

Yes

BPDU filtering/protection

Yes

Authentication

Auto VLAN, Guest VLAN

Static port security

Yes

SSH/SSL support

Yes

MAC address filtering

Yes

IGMP snooping

Yes

Access Control List (ACL)

Yes

DHCP features

DHCP client, DHCP relay, DHCP server

Multicast support

Yes

Reset button

Yes

Form factor

1U

Product colour

Black

LED indicators

Yes

Rack mounting

Yes

Number of fans

3 fan(s)

Certification

CE, FCC, RoHS

Power consumption (max)

635.7 W

Power supply included

Yes

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Power source

AC

Power connector

AC-in jack

Power over Ethernet (PoE) power per port

30 W

Power over Ethernet plus (PoE+) ports quantity

48

Total Power over Ethernet (PoE) budget

500 W

Power over Ethernet (PoE)

Yes

Storage temperature (T-T)

-40 - 70 °C

Storage relative humidity (H-H)

5 - 90%

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 90%

Heat dissipation

2169.2 BTU/h

VLAN support

Yes

Width

440 mm

Depth

330 mm

Height

44 mm

Quick start guide

Yes

Cables included

AC

Package width

440 mm

Package depth

528 mm

Package height

100 mm

Package weight

6.48 kg

Quick start guide

Yes

Cables included

AC

Packet buffer memory

12 MB

Harmonized System (HS) code

85176990

Form factor

1U

Product colour

Black

Rack mounting

Yes

Packet buffer memory

12 MB

Certification

CE, FCC, RoHS

LED indicators

Yes

Harmonized System (HS) code

85176990
