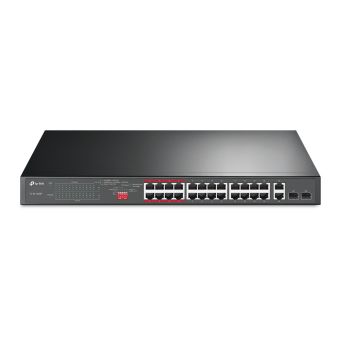

TP-Link 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch
In Stock
|
£153.97
£184.76 (Inc. VAT)
get it next day (UK Mainland Orders)
TP-Link 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch
Write Your Own Review
Management features
Traffic classification
Yes
Switch type
Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
26
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity
2
Gigabit Ethernet (copper) ports quantity
2
Fast Ethernet (copper) ports quantity
24
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Network
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Auto MDI/MDI-X
Yes
10G support
No
Auto-negotiation
Yes
Data transmission
Jumbo frames
10000
Packet buffer memory
4.1 MB
MAC address table
8000 entries
Switching capacity
8.8 Gbit/s
Store-and-forward
Yes
Jumbo frames support
Yes
Forwarding rate
6.54 Mpps
Design
Form factor
1U
Product colour
Grey
LED indicators
Yes
Rack mounting
Yes
Number of fans
2 fan(s)
Certification
CE, FCC, RoHS
Power
Power consumption (max)
281 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power source
AC
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet plus (PoE+) ports quantity
24
Total Power over Ethernet (PoE) budget
250 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
1002.54 BTU/h
Weight & dimensions
Width
440 mm
Depth
180 mm
Height
44 mm
Packaging content
Rack mount kit
Yes
Quick start guide
Yes
Packaging data
Package width
250 mm
Package depth
528 mm
Package height
80 mm
Package weight
3.02 kg
Rack mount kit
Yes
Quick start guide
Yes
Performance
Packet buffer memory
4.1 MB
Auto-negotiation
Yes
Harmonized System (HS) code
85176990
Technical details
Form factor
1U
Product colour
Grey
Rack mounting
Yes
Memory
Packet buffer memory
4.1 MB
Certificates
Certification
CE, FCC, RoHS
Indication
LED indicators
Yes
Logistics data
Harmonized System (HS) code
85176990
| Length | 52.8 cm |
| Width | 25 cm |
| Height | 8 cm |
| Weight | 3.02 kgs |
