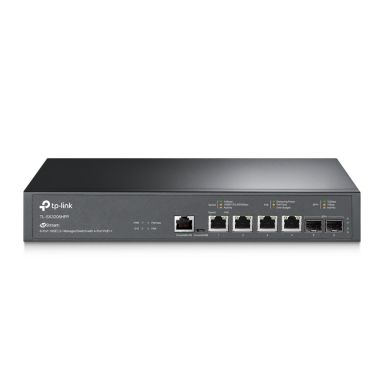

TP-Link JetStream 6-Port 10GE L2+ Managed Switch with 4-Port PoE++
In Stock
|
$622.27
$746.72 (Inc. VAT)
Management features
Multicast support
Yes
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
MIB support
Yes
Switch layer
L2+
Configuring Location Settings (CLI)
Yes
Cloud-managed
Yes
Network
IGMP snooping
Yes
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
Head-of-line (HOL) blocking
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Routing entries
512
Rate limiting
Yes
Port mirroring
Yes
Number of VLANs
4000
Link aggregation
Yes
IP routing
Yes
Flow control support
Yes
Broadcast storm control
Yes
10G support
Yes
Virtual LAN features
Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN
Virtual LAN features
VLAN support
Yes
Number of VLANs
4000
Virtual LAN features
Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN
Data transmission
Number of VLANs
4000
Multicast Listener Discovery (MLD) snooping
MLD v1/v2
Jumbo frames
9000
Number of static routes
48
MAC address table
32000 entries
Switching capacity
120 Gbit/s
Jumbo frames support
Yes
Static route
Yes
Forwarding rate
89.28 Mpps
Power
Power connector
AC-in jack
Power consumption (max)
244.9 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power source
AC
Technical details
Product colour
Black
Rack mounting
Yes
Ports & interfaces
SFP+ module slots quantity
2
Basic switching RJ-45 Ethernet ports quantity
4
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
Console port
RJ-45/Micro-USB
Power connector
AC-in jack
Security
Loop protection
Yes
BPDU filtering/protection
Yes
Authentication
Guest VLAN
SSH/SSL support
Yes
Security algorithms
HTTPS, SSL/TLS
IGMP snooping
Yes
Access Control List (ACL)
Yes
Authentication type
AAA, RADIUS, TACACS+
DHCP features
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client
Multicast features
Multicast support
Yes
Multicast Listener Discovery (MLD) snooping
MLD v1/v2
Protocols
Management protocols
SNMP v1/v2c/v3
Certificates
Certification
CE, FCC, RoHS
Design
Product colour
Black
LED indicators
Yes
Certification
CE, FCC, RoHS
Rack mounting
Yes
Number of fans
2 fan(s)
Performance
Minimum system requirements
Microsoft® Windows® 98SE, NT, 2000, XP, Vista / Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® /Linux.
Harmonized System (HS) code
85176990
Indication
LED indicators
Yes
System requirements
Minimum system requirements
Microsoft® Windows® 98SE, NT, 2000, XP, Vista / Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® /Linux.
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
60 W
Power over Ethernet plus (PoE+) ports quantity
4
Total Power over Ethernet (PoE) budget
200 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
835.67 BTU/h
Weight & dimensions
Width
294 mm
Depth
180 mm
Height
44 mm
Packaging data
Rack mount kit
Yes
Quick start guide
Yes
Package width
400 mm
Package depth
250 mm
Package height
80 mm
Package weight
2.62 kg
Cables included
AC
Logistics data
Harmonized System (HS) code
85176990
Packaging content
Rack mount kit
Yes
Quick start guide
Yes
Cables included
AC
TP-Link JetStream 6-Port 10GE L2+ Managed Switch with 4-Port PoE++
