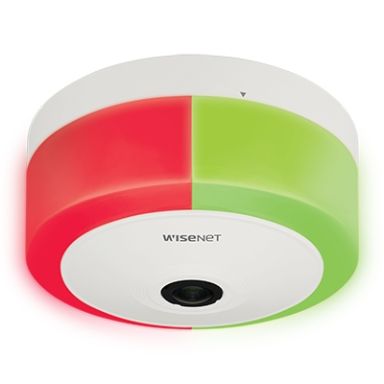

Hanwha TNF-9010 security camera IP security camera Indoor 3008 x 3008 pixels Ceiling/wall
In Stock
|
$647.60
$777.12 (Inc. VAT)
Performance
Type
IP security camera
Connectivity technology
Wired
Placement supported
Indoor
Wide Dynamic Range (WDR)
Yes
Day/night mode
Yes
Alarm input/output
Yes
Design
Product colour
White
Mounting type
Ceiling/wall
Housing material
Aluminium
Camera
Minimum illumination
0.039 lx
Pan range
-180 - 180°
White balance
ATW, AWC, Indoor, Manual, Outdoor
Lens viewing angle, horizontal
187°
Lens viewing angle, vertical
187°
Lens viewing angle, diagonal
187°
Image sensor
Sensor type
CMOS
Optical sensor size
25.4 / 2.3 mm (1 / 2.3")
Number of sensors
1
Lens system
Number of lenses
1
Maximum aperture number
2.2
Detect distance
34.9 m
Observe distance
13.9 m
Recognize distance
7 m
Identify distance
3.5 m
Closest focusing distance
0.5 m
Fixed focal length
1.08 mm
Video
Noise reduction
Yes
Privacy masking
Yes
Flip & mirror
Yes
Highlight Compensation (HLC)
Yes
Bit rate control
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Back Light Compensation (BLC)
Yes
Video compression formats
H.264, H.265, M-JPEG
Maximum resolution
3008 x 3008 pixels
Video streaming
Yes
Total megapixels
12 MP
Audio
Voice codecs
G.711ulaw, G.726
Network
Bluetooth
No
Ethernet interface type
Fast Ethernet
Networking standards
IEEE 802.1x
Number of users
20 user(s)
Streaming method
Multicast, Unicast
Ethernet LAN
Yes
Wi-Fi
No
Supported network protocols
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
Storage
Maximum memory card size
512 GB
Card reader integrated
Yes
Built-in HDD
No
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Internal memory
4096 MB
Flash memory
512 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Composite video out
1
Connectivity technology
Wired
Security
Video motion detection
Yes
Security algorithms
EAP-LEAP, EAP-TLS
IP address filtering
Yes
Power
Power source type
DC, PoE
Power consumption (max)
10 W
Power consumption (Power over Ethernet (PoE))
12.95 W
DC output voltage
12
Operational conditions
Operating temperature (T-T)
-10 - 50 °C
Storage temperature (T-T)
-50 - 60 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Weight & dimensions
Height
80.5 mm
Diameter
15.8 cm
Weight
1.28 kg
Packaging content
Number of cameras
1
Other features
Video compression formats
H.264, H.265, M-JPEG
Hanwha TNF-9010 security camera IP security camera Indoor 3008 x 3008 pixels Ceiling/wall
