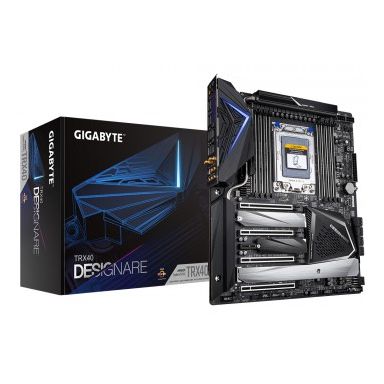

Gigabyte TRX40 Designare motherboard sTRX4 XL-ATX AMD TRX40
In Stock
|
Call For Price
(0808 189 1246)
Internal I/O
Number of M.2 (M) slots
4
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Front panel connector
Yes
12V power connector
Yes
Supported storage drive interfaces
M.2-SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
TPM connector
Yes
Number of SATA III connectors
8
Number of chassis fan connectors
2
Front panel audio connector
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Motherboard chipset family
AMD
Motherboard chipset
AMD TRX40
PC health monitoring
Fan- Temperature- Voltage
Parallel processing technology support
3-Way CrossFireX-3-Way SLI-4-Way CrossFireX-4-Way SLI-Quad-GPU CrossFireX-Quad-GPU SLI
Motherboard form factor
XL-ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Intel Extreme Memory Profile (XMP)
Yes
Windows operating systems supported
Windows 10 Education x64-Windows 10 Enterprise x64-Windows 10 Home x64-Windows 10 Pro x64-Windows 10 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD TRX40
RAID levels
0-1-10
PC health monitoring
Fan- Temperature- Voltage
Audio output channels
7.1 channels
Motherboard form factor
XL-ATX
Component for
PC
Processor
Processor manufacturer
AMD
Compatible processor series
AMD Ryzen Threadripper 3rd Gen
Maximum number of SMP processors
1
Processor socket
Socket sTRX4
Memory
Number of memory slots
8
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Quad-channel
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
2133-2400-2667-2933-3200-3300-3333-3400-3466-3600-3733-3866-4000-4133-4266-4400 MHz
Supported memory module capacities
32GB
Maximum internal memory
256 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2-SATA III
RAID levels
0-1-10
Graphics
Parallel processing technology support
3-Way CrossFireX-3-Way SLI-4-Way CrossFireX-4-Way SLI-Quad-GPU CrossFireX-Quad-GPU SLI
Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB connector type
USB Type-A- USB Type-C
USB 2.0 ports quantity
2
WiFi-AP antenna jack
2
S/PDIF out port
Yes
Ethernet LAN (RJ-45) ports
2
Digital audio optical out
1
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a-802.11b-802.11g-Wi-Fi 4 (802.11n)-Wi-Fi 5 (802.11ac)-Wi-Fi 6 (802.11ax)
Ethernet interface type
Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.0
Features
Windows operating systems supported
Windows 10 Education x64-Windows 10 Enterprise x64-Windows 10 Home x64-Windows 10 Pro x64-Windows 10 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD TRX40
PC health monitoring
Fan- Temperature- Voltage
Audio output channels
7.1 channels
Motherboard form factor
XL-ATX
Component for
PC
Audio chip
Realtek ALC4050H + Realtek ALC1220-VB
Expansion slots
Number of M.2 (M) slots
4
PCI Express x16 slots
4
PCI Express x1 slots
1
BIOS
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
128 Mbit
ACPI version
5.0
Clear CMOS button
Yes
System Management BIOS (SMBIOS) version
2.7
Desktop Management Interface (DMI) version
2.7
DualBIOS
Yes
Processor special features
Intel Extreme Memory Profile (XMP)
Yes
Software
Windows operating systems supported
Windows 10 Education x64-Windows 10 Enterprise x64-Windows 10 Home x64-Windows 10 Pro x64-Windows 10 x64
Drivers included
Yes
Bundled software
Norton Internet Security cFosSpeed XSplit Gamecaster + Broadcaster
Weight & dimensions
Width
325 mm
Depth
269 mm
Packaging content
Quick installation guide
Yes
Drivers included
Yes
Cables included
SATA
Bundled software
Norton Internet Security cFosSpeed XSplit Gamecaster + Broadcaster
Other features
Quick installation guide
Yes
DualBIOS
Yes
Gigabyte TRX40 Designare motherboard sTRX4 XL-ATX AMD TRX40
