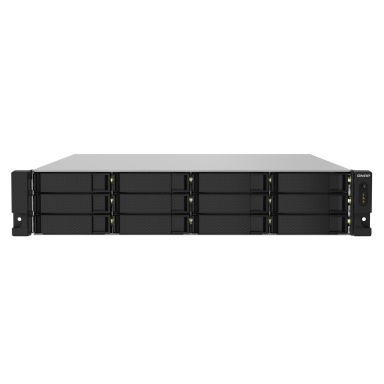

QNAP TS-1232PXU-RP AL324 Ethernet LAN Rack (2U) Black NAS
In Stock
|
$1697.23
$2036.68 (Inc. VAT)
Storage
Online RAID migration
Yes
Online RAID expansion
Yes
Bad block scan
Yes
Storage drives installed
No
Installed storage drive type
No
Supported storage drive types
HDD & SSD
Number of storage drives supported
12
Hot-swap drive bays
Yes
RAID support
Yes
Supported file systems
FAT32-HFS+-NTFS-ext3-ext4
RAID levels
0-1-5-6-10-JBOD
Supported storage drive interfaces
Serial ATA II- Serial ATA III
Storage drive sizes supported
2.5-3.5"
RAID rebuild
Yes
Processor
Processor manufacturer
Annapurna Labs
Processor frequency
1.7 GHz
Processor family
Annapurna Labs
Processor model
AL324
Processor cores
4
Memory
Internal memory type
DDR4
Internal memory
4 GB
Maximum RAM supported
16 GB
Memory slots
1
Flash memory
512 MB
Memory form factor
UDIMM
Network
Load balancing system
Yes
Link aggregation
Yes
Ethernet LAN data rate supported (max)
10000 Mbit/s
Ethernet LAN
Yes
Ethernet LAN data rates
100-1000-2500-10000 Mbit/s
Wake-on-LAN ready
Yes
Supported network protocols
PPTP- L2TP/IPSec- OpenVPN- QBelt
Jumbo frames support
Yes
iSCSI support
Yes
DHCP server
Yes
DHCP client
Yes
WLAN adapter supported
Yes
Ports & interfaces
USB port
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Fiber ports quantity
2
Fiber optic connector
SFP+
Ethernet LAN (RJ-45) ports
2
Hard drive
RAID support
Yes
Supported file systems
FAT32-HFS+-NTFS-ext3-ext4
RAID levels
0-1-5-6-10-JBOD
Design
Cooling type
Active
Fan diameter
7 cm
Product colour
Black
Number of fans
2 fan(s)
LED indicators
HDD- LAN- Status
Chassis type
Rack (2U)
Technical details
Type
NAS
Device class
Small & Medium Business
Backup function
Yes
Backup features
Cloud- iSCSI LUN
Product colour
Black
Noise level
32.2 dB
Multilingual support
Yes
LED indicators
HDD- LAN- Status
Chassis type
Rack (2U)
Buzzer
Yes
Number of fans
2 fan(s)
Performance
Built-in FTP server
Yes
System log
Yes
Share folder
CIFS/SMB
S.M.A.R.T. support
Yes
Hot spare
Yes
Browser supported
Mozilla Firefox- Microsoft Internet Explorer 10+- Apple Safari 7+- Google Chrome
Universal Plug and Play (UPnP)
Yes
Type
NAS
Device class
Small & Medium Business
Backup function
Yes
Backup features
Cloud- iSCSI LUN
On/off switch
Yes
Windows operating systems supported
Windows 10-Windows 7-Windows 8
Server operating systems supported
Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016-Windows Server 2019
Mac operating systems supported
Mac OS X 10.10 Yosemite- Mac OS X 10.11 El Capitan- Mac OS X 10.12 Sierra- Mac OS X 10.13 High Sierra- Mac OS X 10.14 Mojave- Mac OS X 10.15 Catalina
Linux operating systems supported
Yes
Web-based management
Yes
Security algorithms
256-bit AES-FIPS 140-2-HTTPS-SSH-SSL/TLS
Reset button
Yes
Operating system version
4.4.3
Operating system installed
QNAP Turbo System
Noise level
32.2 dB
Multilingual support
Yes
Buzzer
Yes
Access Control List (ACL)
Yes
Snapshot
Yes
USB copy function
Yes
Cooling
Cooling type
Active
Fan diameter
7 cm
Fan voltage
12 V
Number of fans
2 fan(s)
Security
Security algorithms
256-bit AES-FIPS 140-2-HTTPS-SSH-SSL/TLS
Access Control List (ACL)
Yes
Software
Windows operating systems supported
Windows 10-Windows 7-Windows 8
Server operating systems supported
Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016-Windows Server 2019
Mac operating systems supported
Mac OS X 10.10 Yosemite- Mac OS X 10.11 El Capitan- Mac OS X 10.12 Sierra- Mac OS X 10.13 High Sierra- Mac OS X 10.14 Mojave- Mac OS X 10.15 Catalina
Linux operating systems supported
Yes
Operating system version
4.4.3
Operating system installed
QNAP Turbo System
Management features
On/off switch
Yes
Web-based management
Yes
Reset button
Yes
Power
Power supply location
Built-in
Power supply unit (PSU) capacity
250 W
Fan voltage
12 V
AC input voltage
100 - 240 V
Power consumption (typical)
83.57 W
Number of power supply units
2
Weight & dimensions
Width
482 mm
Depth
534 mm
Height
89 mm
Weight
11.3 kg
Package weight
17.3 kg
Packaging content
Number of screws
84
Cables included
AC- LAN (RJ-45)
System requirements
Windows operating systems supported
Windows 10-Windows 7-Windows 8
Server operating systems supported
Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016-Windows Server 2019
Mac operating systems supported
Mac OS X 10.10 Yosemite- Mac OS X 10.11 El Capitan- Mac OS X 10.12 Sierra- Mac OS X 10.13 High Sierra- Mac OS X 10.14 Mojave- Mac OS X 10.15 Catalina
Linux operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
5 - 95%
Packaging data
Package weight
17.3 kg
Cables included
AC- LAN (RJ-45)
QNAP TS-1232PXU-RP AL324 Ethernet LAN Rack (2U) Black NAS
| Length | 53.40 cm |
| Width | 48.20 cm |
| Height | 8.90 cm |
| Weight | 11.300000 kgs |
