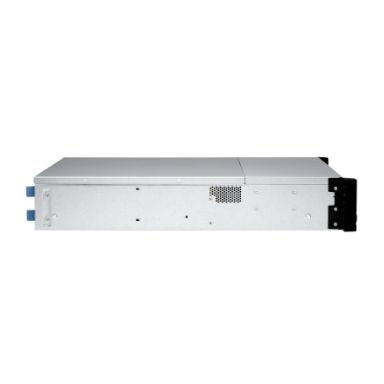

QNAP TS-1886XU-RP D-1602 Ethernet LAN Aluminium, Black NAS
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Storage | |
|---|---|
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| Disk roaming | Yes |
| Bad block scan | Yes |
| Storage drives installed | No |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 18 |
| Hot-swap drive bays | Yes |
| RAID support | Yes |
| Supported file systems | FAT32-HFS+-NTFS-exFAT-ext3-ext4 |
| RAID levels | 0-1-5+S-5-6-6+HS-10+HS-10-50-60-JBOD |
| Supported storage drive interfaces | Serial ATA III |
| Storage drive sizes supported | 2.5-3.5" |
| RAID rebuild | Yes |
| Processor | |
| Processor manufacturer | Intel |
| Tjunction | 105 °C |
| Thermal Design Power (TDP) | 27 W |
| Tcase | 84 °C |
| Scalability | 1S |
| Processor threads | 4 |
| Processor package size | 37.5 x 37.5 mm |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor cache | 3 MB |
| Processor boost frequency | 3.2 GHz |
| PCI Express slots version | 2.0-3.0 |
| On-board graphics adapter model | Not available |
| CPU configuration (max) | 1 |
| Maximum internal memory supported by processor | 128 GB |
| Processor ARK ID | 193686 |
| Processor frequency | 2.5 GHz |
| Processor family | Intel® Xeon® D |
| Processor model | D-1602 |
| Processor cores | 2 |
| Memory | |
| Internal memory type | DDR4 |
| Internal memory | 4 GB |
| Memory clock speed | 2666 MHz |
| Maximum RAM supported | 128 GB |
| Memory slots | 4x DIMM |
| Flash memory | 5120 MB |
| Memory form factor | UDIMM |
| Network | |
| Load balancing system | Yes |
| Link aggregation | Yes |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10-100-1000-10000 Mbit/s |
| Wake-on-LAN ready | Yes |
| Jumbo frames support | Yes |
| iSCSI support | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| WLAN adapter supported | Yes |
| Ports & interfaces | |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| PCI Express x8 (Gen 3.x) slots | 2 |
| PCI Express x4 (Gen 3.x) slots | 2 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
| Ethernet LAN (RJ-45) ports | 4 |
| Hard drive | |
| RAID support | Yes |
| Supported file systems | FAT32-HFS+-NTFS-exFAT-ext3-ext4 |
| RAID levels | 0-1-5+S-5-6-6+HS-10+HS-10-50-60-JBOD |
| Graphics | |
| On-board graphics adapter model | Not available |
| Design | |
| Cooling type | Active |
| Fan diameter | 6 cm |
| Product colour | Aluminium- Black |
| Number of fans | 3 fan(s) |
| LED indicators | HDD- LAN- SSD- Status |
| Technical details | |
| Type | NAS |
| Device class | Large Enterprise Business |
| Backup function | Yes |
| Backup features | Cloud- iSCSI LUN |
| Product colour | Aluminium- Black |
| Number of users | 4096 user(s) |
| Noise level | 56.9 dB |
| LED indicators | HDD- LAN- SSD- Status |
| Buzzer | Yes |
| Number of fans | 3 fan(s) |
| Performance | |
| Built-in FTP server | Yes |
| System log | Yes |
| Share folder access right management | Yes |
| Share folder | 512 |
| S.M.A.R.T. support | Yes |
| Hot spare | Yes |
| Browser supported | Apple Safari 7+- Google Chrome- Microsoft Internet Explorer 10+- Mozilla Firefox |
| Universal Plug and Play (UPnP) | Yes |
| Type | NAS |
| Device class | Large Enterprise Business |
| Backup function | Yes |
| Backup features | Cloud- iSCSI LUN |
| On/off switch | Yes |
| Windows operating systems supported | Windows 10-Windows 10 Education-Windows 10 Education x64-Windows 10 Enterprise-Windows 10 Enterprise x64-Windows 10 Home-Windows 10 Home x64-Windows 10 Pro-Windows 10 Pro x64-Windows 10 x64-Windows 7-Windows 7 Enterprise-Windows 7 Enterprise x64-Windows 7 Home Basic-Windows 7 Home Basic x64-Windows 7 Home Premium-Windows 7 Home Premium x64-Windows 7 Professional-Windows 7 Professional x64-Windows 7 Starter-Windows 7 Starter x64-Windows 7 Ultimate-Windows 7 Ultimate x64-Windows 7 x64-Windows 8-Windows 8 Enterprise-Windows 8 Enterprise x64-Windows 8 Pro-Windows 8 Pro x64-Windows 8 x64 |
| Server operating systems supported | Windows Server 2003-Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016-Windows Server 2019 |
| Mac operating systems supported | Mac OS X 10.7 Lion-Mac OS X 10.8 Mountain Lion-Mac OS X 10.9 Mavericks |
| Linux operating systems supported | Yes |
| Web-based management | Yes |
| Security algorithms | 256-bit AES-FIPS 140-2-HTTPS-SNMP-SSH |
| Reset button | Yes |
| Operating system version | 4.4.1 |
| Operating system installed | QNAP Turbo System |
| Number of users | 4096 user(s) |
| Noise level | 56.9 dB |
| Management protocols | SNMP |
| Buzzer | Yes |
| Access Control List (ACL) | Yes |
| Third-party support | Yes |
| Snapshot | Yes |
| Cooling | |
| Cooling type | Active |
| Fan diameter | 6 cm |
| Fan voltage | 12 V |
| Number of fans | 3 fan(s) |
| Security | |
| Security algorithms | 256-bit AES-FIPS 140-2-HTTPS-SNMP-SSH |
| Access Control List (ACL) | Yes |
| Software | |
| Windows operating systems supported | Windows 10-Windows 10 Education-Windows 10 Education x64-Windows 10 Enterprise-Windows 10 Enterprise x64-Windows 10 Home-Windows 10 Home x64-Windows 10 Pro-Windows 10 Pro x64-Windows 10 x64-Windows 7-Windows 7 Enterprise-Windows 7 Enterprise x64-Windows 7 Home Basic-Windows 7 Home Basic x64-Windows 7 Home Premium-Windows 7 Home Premium x64-Windows 7 Professional-Windows 7 Professional x64-Windows 7 Starter-Windows 7 Starter x64-Windows 7 Ultimate-Windows 7 Ultimate x64-Windows 7 x64-Windows 8-Windows 8 Enterprise-Windows 8 Enterprise x64-Windows 8 Pro-Windows 8 Pro x64-Windows 8 x64 |
| Server operating systems supported | Windows Server 2003-Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016-Windows Server 2019 |
| Mac operating systems supported | Mac OS X 10.7 Lion-Mac OS X 10.8 Mountain Lion-Mac OS X 10.9 Mavericks |
| Linux operating systems supported | Yes |
| Operating system version | 4.4.1 |
| Operating system installed | QNAP Turbo System |
| Management features | |
| On/off switch | Yes |
| Web-based management | Yes |
| Reset button | Yes |
| Management protocols | SNMP |
| Power | |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 550 W |
| Fan voltage | 12 V |
| AC input voltage | 100 - 240 V |
| Redundant power supply (RPS) support | Yes |
| Power consumption (typical) | 117.92 W |
| Number of power supply units | 2 |
| Weight & dimensions | |
| Width | 482 mm |
| Depth | 549.7 mm |
| Height | 88.3 mm |
| Weight | 12.7 kg |
| Package weight | 18.7 kg |
| Packaging content | |
| Number of screws | 112 |
| Cables included | AC- LAN (RJ-45) |
| Processor special features | |
| Thermal Monitoring Technologies | Yes |
| Maximum number of PCI Express lanes | 32 |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel QuickAssist Technology | No |
| Intel 64 | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Embedded options available | No |
| Memory types supported by processor | DDR3-SDRAM-DDR4-SDRAM |
| System requirements | |
| Windows operating systems supported | Windows 10-Windows 10 Education-Windows 10 Education x64-Windows 10 Enterprise-Windows 10 Enterprise x64-Windows 10 Home-Windows 10 Home x64-Windows 10 Pro-Windows 10 Pro x64-Windows 10 x64-Windows 7-Windows 7 Enterprise-Windows 7 Enterprise x64-Windows 7 Home Basic-Windows 7 Home Basic x64-Windows 7 Home Premium-Windows 7 Home Premium x64-Windows 7 Professional-Windows 7 Professional x64-Windows 7 Starter-Windows 7 Starter x64-Windows 7 Ultimate-Windows 7 Ultimate x64-Windows 7 x64-Windows 8-Windows 8 Enterprise-Windows 8 Enterprise x64-Windows 8 Pro-Windows 8 Pro x64-Windows 8 x64 |
| Server operating systems supported | Windows Server 2003-Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016-Windows Server 2019 |
| Mac operating systems supported | Mac OS X 10.7 Lion-Mac OS X 10.8 Mountain Lion-Mac OS X 10.9 Mavericks |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging data | |
| Package weight | 18.7 kg |
| Cables included | AC- LAN (RJ-45) |
| Other features | |
| Processor ARK ID | 193686 |
