Storage | |
---|---|
Total installed storage capacity | 240 TB |
Online RAID migration | Yes |
Online RAID expansion | Yes |
Bad block scan | Yes |
Storage drives installed | Yes |
Installed storage drive type | HDD |
Supported storage drive types | HDD & SSD |
Number of storage drives supported | 24 |
Hot-swap drive bays | Yes |
Supported file systems | FAT32-HFS+-NTFS-ext3-ext4 |
RAID levels | 0-1-5-6-10-50-60-JBOD |
Supported storage drive interfaces | Serial ATA III |
Storage drive sizes supported | 2.5-3.5" |
Processor | |
Processor manufacturer | Intel |
Tjunction | 100 °C |
Thermal Design Power (TDP) | 80 W |
System bus rate | 8 GT/s |
Scalability | 1S |
Processor threads | 12 |
Processor socket | LGA 1151 (Socket H4) |
Processor package size | 37.5 x 37.5 mm |
Processor operating modes | 64-bit |
Processor lithography | 14 nm |
Processor codename | Coffee Lake |
Processor cache type | Smart Cache |
Processor cache | 12 MB |
Processor boost frequency | 4.5 GHz |
PCI Express slots version | 3.0 |
PCI Express configurations | 1x16-2x8-1x8+2x4 |
On-board graphics adapter model | Not available |
ECC supported by processor | Yes |
CPU configuration (max) | 1 |
Bus type | DMI3 |
Maximum internal memory supported by processor | 128 GB |
Memory bandwidth supported by processor (max) | 41.6 GB/s |
Processor ARK ID | 134857 |
Processor frequency | 3.3 GHz |
Processor family | Intel® Xeon® |
Processor model | E-2136 |
Processor cores | 6 |
Memory | |
Internal memory type | DDR4 |
Internal memory | 16 GB |
Maximum RAM supported | 64 GB |
Memory slots | 4 |
Flash memory | 4000 MB |
Network | |
Ethernet LAN data rate supported (max) | 10000 Mbit/s |
Dynamic DNS (DDNS) | Yes |
Ethernet LAN | Yes |
Ethernet LAN data rates | 10-100-1000 Mbit/s |
Wi-Fi | No |
Wake-on-LAN ready | Yes |
Supported network protocols | TCP/IP- IPv4- IPv6 |
Jumbo frames support | Yes |
iSCSI support | Yes |
DHCP server | Yes |
DHCP client | Yes |
WLAN adapter supported | Yes |
Ports & interfaces | |
USB port | Yes |
PCI Express x8 (Gen 3.x) slots | 1 |
PCI Express x4 (Gen 3.x) slots | 2 |
Fiber ports quantity | 2 |
Fiber optic connector | SFP+ |
Ethernet LAN (RJ-45) ports | 4 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
Hard drive | |
Supported file systems | FAT32-HFS+-NTFS-ext3-ext4 |
RAID levels | 0-1-5-6-10-50-60-JBOD |
Graphics | |
On-board graphics adapter model | Not available |
Design | |
Cooling type | Active |
Fan diameter | 9.2 cm |
Cable lock slot type | Kensington |
Product colour | Black |
Number of fans | 4 fan(s) |
LED indicators | HDD- LAN- Status |
Chassis type | Rack (4U) |
Cable lock slot | Yes |
Technical details | |
Type | NAS |
Device class | Small & Medium Business |
Backup function | Yes |
Backup features | Cloud- iSCSI LUN |
Product colour | Black |
Multilingual support | Yes |
LED indicators | HDD- LAN- Status |
Chassis type | Rack (4U) |
Buzzer | Yes |
Number of fans | 4 fan(s) |
Performance | |
Built-in iTunes server | Yes |
Built-in FTP server | Yes |
System log | Yes |
Share folder | CIFS/SMB |
S.M.A.R.T. support | Yes |
Hot spare | Yes |
Browser supported | Apple Safari 7+- Google Chrome- Microsoft Internet Explorer 10+- Mozilla Firefox |
Universal Plug and Play (UPnP) | Yes |
Type | NAS |
Device class | Small & Medium Business |
Backup function | Yes |
Backup features | Cloud- iSCSI LUN |
On/off switch | Yes |
Windows operating systems supported | Yes |
Server operating systems supported | Windows Server 2003-Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016 |
Mac operating systems supported | Yes |
Linux operating systems supported | Yes |
Web-based management | Yes |
Security algorithms | 256-bit AES-FIPS 140-2-HTTPS-SNMP-SSH |
Reset button | Yes |
Operating system version | 4.3.5 |
Operating system installed | QNAP Turbo System |
Multilingual support | Yes |
Buzzer | Yes |
Access Control List (ACL) | Yes |
Cooling | |
Cooling type | Active |
Fan diameter | 9.2 cm |
Number of fans | 4 fan(s) |
Security | |
Cable lock slot type | Kensington |
Security algorithms | 256-bit AES-FIPS 140-2-HTTPS-SNMP-SSH |
Cable lock slot | Yes |
Access Control List (ACL) | Yes |
Software | |
Windows operating systems supported | Yes |
Server operating systems supported | Windows Server 2003-Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016 |
Mac operating systems supported | Yes |
Linux operating systems supported | Yes |
Operating system version | 4.3.5 |
Operating system installed | QNAP Turbo System |
Management features | |
On/off switch | Yes |
Web-based management | Yes |
Reset button | Yes |
Power | |
Power supply location | Built-in |
Power supply unit (PSU) capacity | 600 W |
AC input voltage | 100 - 240 V |
Power consumption (typical) | 168.97 W |
Number of power supply units | 2 |
Weight & dimensions | |
Width | 481 mm |
Depth | 672 mm |
Height | 176.2 mm |
Weight | 20.7 kg |
Package weight | 28.6 kg |
Packaging content | |
Quick installation guide | Yes |
Cables included | AC- LAN (RJ-45) |
Processor special features | |
Thermal Monitoring Technologies | Yes |
Maximum number of PCI Express lanes | 16 |
Intel® Turbo Boost Technology | 2.0 |
Intel® Secure Key | Yes |
Intel® OS Guard | Yes |
Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
Intel® AES New Instructions (Intel® AES-NI) | Yes |
Intel VT-x with Extended Page Tables (EPT) | Yes |
Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Intel Virtualization Technology (VT-x) | Yes |
Intel TSX-NI version | 1.00 |
Intel TSX-NI | Yes |
Intel Trusted Execution Technology | Yes |
Intel Secure Key Technology version | 1.00 |
Intel Enhanced Halt State | Yes |
Intel 64 | Yes |
Idle States | Yes |
Execute Disable Bit | Yes |
Enhanced Intel SpeedStep Technology | Yes |
Embedded options available | No |
Memory channels supported by processor | Dual |
Memory types supported by processor | DDR4-SDRAM |
System requirements | |
Windows operating systems supported | Yes |
Server operating systems supported | Windows Server 2003-Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016 |
Mac operating systems supported | Yes |
Linux operating systems supported | Yes |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 °C |
Operating relative humidity (H-H) | 5 - 95% |
Packaging data | |
Package weight | 28.6 kg |
Cables included | AC- LAN (RJ-45) |
Other features | |
Processor ARK ID | 134857 |

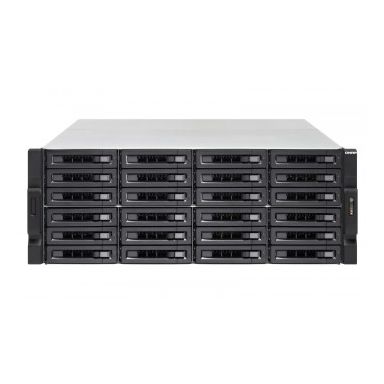

QNAP TS-2483XU-RP Ethernet LAN Rack (4U) Black NAS
