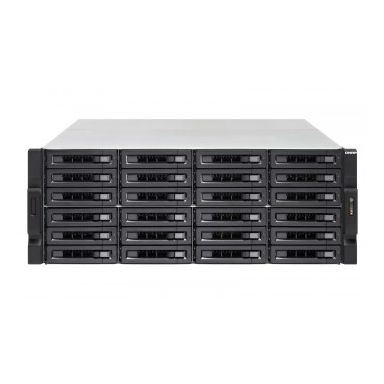

QNAP TS-2483XU-RP Ethernet LAN Rack (4U) Black NAS
In Stock
|
Call For Price
(0808 189 1246)
Storage
Total installed storage capacity
288 TB
Online RAID migration
Yes
Online RAID expansion
Yes
Bad block scan
Yes
Storage drives installed
Yes
Installed storage drive type
HDD
Supported storage drive types
HDD & SSD
Number of storage drives supported
24
Hot-swap drive bays
Yes
Supported file systems
FAT32-HFS+-NTFS-ext3-ext4
RAID levels
0-1-5-6-10-50-60-JBOD
Supported storage drive interfaces
Serial ATA III
Storage drive sizes supported
2.5-3.5"
Processor
Processor manufacturer
Intel
Tjunction
100 °C
Thermal Design Power (TDP)
80 W
System bus rate
8 GT/s
Scalability
1S
Processor threads
12
Processor socket
LGA 1151 (Socket H4)
Processor package size
37.5 x 37.5 mm
Processor operating modes
64-bit
Processor lithography
14 nm
Processor codename
Coffee Lake
Processor cache type
Smart Cache
Processor cache
12 MB
Processor boost frequency
4.5 GHz
PCI Express slots version
3.0
PCI Express configurations
1x16-2x8-1x8+2x4
On-board graphics adapter model
Not available
ECC supported by processor
Yes
CPU configuration (max)
1
Bus type
DMI3
Maximum internal memory supported by processor
128 GB
Memory bandwidth supported by processor (max)
41.6 GB/s
Processor ARK ID
134857
Processor frequency
3.3 GHz
Processor family
Intel® Xeon®
Processor model
E-2136
Processor cores
6
Memory
Internal memory type
DDR4
Internal memory
16 GB
Maximum RAM supported
64 GB
Memory slots
4
Flash memory
4000 MB
Network
Ethernet LAN data rate supported (max)
10000 Mbit/s
Dynamic DNS (DDNS)
Yes
Ethernet LAN
Yes
Ethernet LAN data rates
10-100-1000 Mbit/s
Wi-Fi
No
Wake-on-LAN ready
Yes
Supported network protocols
TCP/IP- IPv4- IPv6
Jumbo frames support
Yes
iSCSI support
Yes
DHCP server
Yes
DHCP client
Yes
WLAN adapter supported
Yes
Ports & interfaces
USB port
Yes
PCI Express x8 (Gen 3.x) slots
1
PCI Express x4 (Gen 3.x) slots
2
Fiber ports quantity
2
Fiber optic connector
SFP+
Ethernet LAN (RJ-45) ports
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
Hard drive
Supported file systems
FAT32-HFS+-NTFS-ext3-ext4
RAID levels
0-1-5-6-10-50-60-JBOD
Graphics
On-board graphics adapter model
Not available
Design
Cooling type
Active
Fan diameter
9.2 cm
Cable lock slot type
Kensington
Product colour
Black
Number of fans
4 fan(s)
LED indicators
HDD- LAN- Status
Chassis type
Rack (4U)
Cable lock slot
Yes
Technical details
Type
NAS
Device class
Small & Medium Business
Backup function
Yes
Backup features
Cloud- iSCSI LUN
Product colour
Black
Multilingual support
Yes
LED indicators
HDD- LAN- Status
Chassis type
Rack (4U)
Buzzer
Yes
Number of fans
4 fan(s)
Performance
Built-in iTunes server
Yes
Built-in FTP server
Yes
System log
Yes
Share folder
CIFS/SMB
S.M.A.R.T. support
Yes
Hot spare
Yes
Browser supported
Apple Safari 7+- Google Chrome- Microsoft Internet Explorer 10+- Mozilla Firefox
Universal Plug and Play (UPnP)
Yes
Type
NAS
Device class
Small & Medium Business
Backup function
Yes
Backup features
Cloud- iSCSI LUN
On/off switch
Yes
Windows operating systems supported
Yes
Server operating systems supported
Windows Server 2003-Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Web-based management
Yes
Security algorithms
256-bit AES-FIPS 140-2-HTTPS-SNMP-SSH
Reset button
Yes
Operating system version
4.3.5
Operating system installed
QNAP Turbo System
Multilingual support
Yes
Buzzer
Yes
Access Control List (ACL)
Yes
Cooling
Cooling type
Active
Fan diameter
9.2 cm
Number of fans
4 fan(s)
Security
Cable lock slot type
Kensington
Security algorithms
256-bit AES-FIPS 140-2-HTTPS-SNMP-SSH
Cable lock slot
Yes
Access Control List (ACL)
Yes
Software
Windows operating systems supported
Yes
Server operating systems supported
Windows Server 2003-Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Operating system version
4.3.5
Operating system installed
QNAP Turbo System
Management features
On/off switch
Yes
Web-based management
Yes
Reset button
Yes
Power
Power supply location
Built-in
Power supply unit (PSU) capacity
600 W
AC input voltage
100 - 240 V
Power consumption (typical)
168.97 W
Number of power supply units
2
Weight & dimensions
Width
481 mm
Depth
672 mm
Height
176.2 mm
Weight
20.7 kg
Package weight
28.6 kg
Packaging content
Quick installation guide
Yes
Cables included
AC- LAN (RJ-45)
Processor special features
Thermal Monitoring Technologies
Yes
Maximum number of PCI Express lanes
16
Intel® Turbo Boost Technology
2.0
Intel® Secure Key
Yes
Intel® OS Guard
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel TSX-NI version
1.00
Intel TSX-NI
Yes
Intel Trusted Execution Technology
Yes
Intel Secure Key Technology version
1.00
Intel Enhanced Halt State
Yes
Intel 64
Yes
Idle States
Yes
Execute Disable Bit
Yes
Enhanced Intel SpeedStep Technology
Yes
Embedded options available
No
Memory channels supported by processor
Dual
Memory types supported by processor
DDR4-SDRAM
System requirements
Windows operating systems supported
Yes
Server operating systems supported
Windows Server 2003-Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
5 - 95%
Packaging data
Package weight
28.6 kg
Cables included
AC- LAN (RJ-45)
Other features
Processor ARK ID
134857
QNAP TS-2483XU-RP Ethernet LAN Rack (4U) Black NAS
| Length | 67.20 cm |
| Width | 48.10 cm |
| Height | 17.62 cm |
| Weight | 20.700000 kgs |
