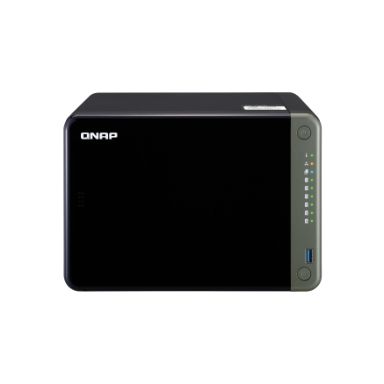

QNAP TS-653D NAS Tower Ethernet LAN Black J4125
In Stock
|
Call For Price
(0808 189 1246)
Storage
Total installed storage capacity
6 TB
Online RAID migration
Yes
Online RAID expansion
Yes
Disk roaming
Yes
Bad block scan
Yes
Storage drives installed
Yes
Installed storage drive type
HDD
Supported storage drive types
HDD & SSD
Number of storage drives supported
6
Storage drive interface
Serial ATA III
Hot-swap drive bays
Yes
RAID support
Yes
Supported file systems
FAT32-HFS+-NTFS-exFAT-ext3-ext4
RAID levels
0-1-5-6-10-50-60-JBOD
Supported storage drive interfaces
Serial ATA II- Serial ATA III
Storage drive sizes supported
2.5-3.5"
RAID rebuild
Yes
Processor
Processor manufacturer
Intel
Tjunction
105 °C
Thermal Design Power (TDP)
10 W
Processor threads
4
Processor socket
BGA 1090
Processor package size
25 x 24 mm
Processor operating modes
64-bit
Processor lithography
14 nm
Processor codename
Gemini Lake Refresh
Processor cache
4 MB
Processor boost frequency
2.7 GHz
PCI Express slots version
2.0
PCI Express configurations
1x4+1x2-4x1-2x1+1x2+1x2
On-board graphics adapter model
Intel® UHD Graphics 600
CPU configuration (max)
1
Maximum internal memory supported by processor
8 GB
Processor ARK ID
197305
Processor frequency
2 GHz
Processor family
Intel® Celeron®
Processor model
J4125
Processor cores
4
Memory
Internal memory type
DDR4
Internal memory
8 GB
Memory clock speed
2400 MHz
Maximum RAM supported
8 GB
Memory slots
2
Flash memory
4096 MB
Memory form factor
SO-DIMM
Network
Load balancing system
Yes
Link aggregation
Yes
Dynamic DNS (DDNS)
Yes
Ethernet LAN
Yes
Ethernet LAN data rates
10-100-1000-2500 Mbit/s
Wake-on-LAN ready
Yes
Jumbo frames support
Yes
iSCSI support
Yes
DHCP server
Yes
DHCP client
Yes
WLAN adapter supported
Yes
Ports & interfaces
USB port
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
HDMI version
2.0
USB 2.0 ports quantity
3
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
2
Hard drive
RAID support
Yes
Supported file systems
FAT32-HFS+-NTFS-exFAT-ext3-ext4
RAID levels
0-1-5-6-10-50-60-JBOD
Graphics
On-board graphics adapter OpenGL version
4.4
On-board graphics adapter model
Intel® UHD Graphics 600
On-board graphics adapter ID
0x3185
On-board graphics adapter dynamic frequency (max)
750 MHz
On-board graphics adapter DirectX version
12.0
On-board graphics adapter burst frequency
750 MHz
On-board graphics adapter base frequency
250 MHz
Maximum on-board graphics adapter memory
8 GB
Number of displays supported (on-board graphics)
3
Design
Cooling type
Active
Fan diameter
9 cm
Cable lock slot type
Kensington
Product colour
Black
Number of fans
2 fan(s)
LED indicators
HDD- LAN- Power- Status- USB
Chassis type
Tower
Cable lock slot
Yes
Technical details
Type
NAS
Device class
Small & Medium Business
Backup function
Yes
Backup features
Cloud- USB drive- iSCSI LUN
Product colour
Black
Noise level
21.3 dB
LED indicators
HDD- LAN- Power- Status- USB
Chassis type
Tower
Buzzer
Yes
Number of fans
2 fan(s)
Performance
Built-in FTP server
Yes
System log
Yes
Share folder access right management
Yes
S.M.A.R.T. support
Yes
Hot spare
Yes
Backup button
Yes
Universal Plug and Play (UPnP)
Yes
Built-in BitTorrent client
Yes
Type
NAS
Device class
Small & Medium Business
Backup function
Yes
Backup features
Cloud- USB drive- iSCSI LUN
On/off switch
Yes
Windows operating systems supported
Windows 10-Windows 10 Education-Windows 10 Education x64-Windows 10 Enterprise-Windows 10 Enterprise x64-Windows 10 Home-Windows 10 Home x64-Windows 10 Pro-Windows 10 Pro x64-Windows 10 x64-Windows 7-Windows 7 Enterprise-Windows 7 Enterprise x64-Windows 7 Home Basic-Windows 7 Home Basic x64-Windows 7 Home Premium-Windows 7 Home Premium x64-Windows 7 Professional-Windows 7 Professional x64-Windows 7 Starter-Windows 7 Starter x64-Windows 7 Ultimate-Windows 7 Ultimate x64-Windows 7 x64-Windows 8-Windows 8 Enterprise-Windows 8 Enterprise x64-Windows 8 Pro-Windows 8 Pro x64-Windows 8 x64
Server operating systems supported
Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016-Windows Server 2019
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Web-based management
Yes
Security algorithms
256-bit AES-FIPS 140-2-HTTPS
Reset button
Yes
Operating system version
4.4.2
Operating system installed
QNAP Turbo System
Noise level
21.3 dB
Management protocols
SNMP
Buzzer
Yes
Access Control List (ACL)
Yes
Third-party support
Yes
Snapshot
Yes
USB copy function
Yes
Cooling
Cooling type
Active
Fan diameter
9 cm
Fan voltage
12 V
Number of fans
2 fan(s)
Security
Cable lock slot type
Kensington
Security algorithms
256-bit AES-FIPS 140-2-HTTPS
Cable lock slot
Yes
Access Control List (ACL)
Yes
Software
Windows operating systems supported
Windows 10-Windows 10 Education-Windows 10 Education x64-Windows 10 Enterprise-Windows 10 Enterprise x64-Windows 10 Home-Windows 10 Home x64-Windows 10 Pro-Windows 10 Pro x64-Windows 10 x64-Windows 7-Windows 7 Enterprise-Windows 7 Enterprise x64-Windows 7 Home Basic-Windows 7 Home Basic x64-Windows 7 Home Premium-Windows 7 Home Premium x64-Windows 7 Professional-Windows 7 Professional x64-Windows 7 Starter-Windows 7 Starter x64-Windows 7 Ultimate-Windows 7 Ultimate x64-Windows 7 x64-Windows 8-Windows 8 Enterprise-Windows 8 Enterprise x64-Windows 8 Pro-Windows 8 Pro x64-Windows 8 x64
Server operating systems supported
Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016-Windows Server 2019
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Operating system version
4.4.2
Operating system installed
QNAP Turbo System
Management features
On/off switch
Yes
Web-based management
Yes
Reset button
Yes
Management protocols
SNMP
Power
Power supply location
External
Power supply unit (PSU) capacity
120 W
Fan voltage
12 V
AC input voltage
100 - 240 V
Power consumption (typical)
35.437 W
Power consumption (sleep)
18.634 W
External power adapter
Yes
Weight & dimensions
Width
235 mm
Depth
226 mm
Height
168 mm
Weight
2.87 kg
Package weight
4.56 kg
Packaging content
External power adapter
Yes
Cables included
AC- LAN (RJ-45)
Processor special features
UART
Yes
Thermal Monitoring Technologies
Yes
Number of execution units
12
Maximum number of PCI Express lanes
6
Intel® Turbo Boost Technology
No
Intel® Smart Response Technology
No
Intel® Secure Key
Yes
Intel® Quick Sync Video Technology
Yes
Intel® OS Guard
Yes
Intel® Identity Protection Technology (Intel® IPT)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
No
Intel® Anti-Theft Technology (Intel® AT)
No
Intel® AES New Instructions (Intel® AES-NI)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel 64
Yes
Idle States
Yes
Execute Disable Bit
Yes
Enhanced Intel SpeedStep Technology
Yes
Embedded options available
No
Memory types supported by processor
DDR4-SDRAM-LPDDR4-SDRAM
System requirements
Windows operating systems supported
Windows 10-Windows 10 Education-Windows 10 Education x64-Windows 10 Enterprise-Windows 10 Enterprise x64-Windows 10 Home-Windows 10 Home x64-Windows 10 Pro-Windows 10 Pro x64-Windows 10 x64-Windows 7-Windows 7 Enterprise-Windows 7 Enterprise x64-Windows 7 Home Basic-Windows 7 Home Basic x64-Windows 7 Home Premium-Windows 7 Home Premium x64-Windows 7 Professional-Windows 7 Professional x64-Windows 7 Starter-Windows 7 Starter x64-Windows 7 Ultimate-Windows 7 Ultimate x64-Windows 7 x64-Windows 8-Windows 8 Enterprise-Windows 8 Enterprise x64-Windows 8 Pro-Windows 8 Pro x64-Windows 8 x64
Server operating systems supported
Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016-Windows Server 2019
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
5 - 95%
Packaging data
Package weight
4.56 kg
Cables included
AC- LAN (RJ-45)
Other features
Processor ARK ID
197305
QNAP TS-653D NAS Tower Ethernet LAN Black J4125
| Length | 22.60 cm |
| Width | 23.50 cm |
| Height | 16.80 cm |
| Weight | 2.870000 kgs |
