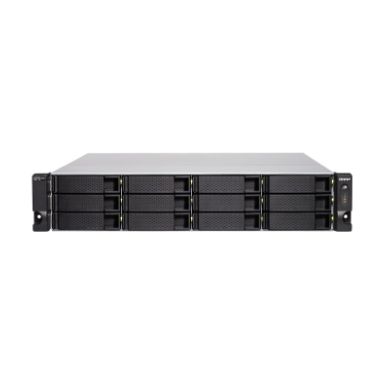

QNAP TS-h1283XU-RP NAS Rack (2U) Ethernet LAN Black, Grey E-2236
In Stock
|
Call For Price
(0808 189 1246)
Storage
Total installed storage capacity
144 TB
Online RAID migration
Yes
Online RAID expansion
Yes
Bad block scan
Yes
Auto-rebuild
Yes
Storage drives installed
Yes
Installed storage drive type
HDD
Number of storage drives installed
12
Supported storage drive types
HDD & SSD
Number of storage drives supported
12
Hot-swap drive bays
Yes
RAID support
Yes
Supported file systems
FAT32-HFS+-NTFS-ZFS-exFAT-ext3-ext4
RAID levels
0-1-2-5-6-10-50-60
Supported storage drive interfaces
Serial ATA II- Serial ATA III
Storage drive sizes supported
2.5-3.5"
RAID rebuild
Yes
Processor
Processor manufacturer
Intel
Tjunction
100 °C
Thermal Design Power (TDP)
80 W
Tcase
73 °C
Scalability
1S
Processor threads
12
Processor socket
LGA 1151 (Socket H4)
Processor package size
37.5 x 37.5 mm
Processor operating modes
64-bit
Processor lithography
14 nm
Processor codename
Coffee Lake
Processor cache
12 MB
Processor boost frequency
4.8 GHz
PCI Express slots version
3.0
PCI Express configurations
1x16-2x8-1x8+2x4
On-board graphics adapter model
Not available
CPU configuration (max)
1
Maximum internal memory supported by processor
128 GB
Processor ARK ID
191040
Processor frequency
3.4 GHz
Processor family
Intel® Xeon®
Processor model
E-2236
Processor cores
6
Memory
Internal memory type
DDR4
Maximum RAM supported
128 GB
Memory slots
4
Flash memory
5000 MB
Memory form factor
UDIMM
Network
Load balancing system
Yes
Link aggregation
Yes
Ethernet LAN data rate supported (max)
10000 Mbit/s
Dynamic DNS (DDNS)
Yes
Ethernet LAN
Yes
Ethernet LAN data rates
1000-10000 Mbit/s
Wake-on-LAN ready
Yes
Jumbo frames support
Yes
iSCSI support
Yes
DHCP server
Yes
DHCP client
Yes
Ports & interfaces
USB port
Yes
PCI Express x8 (Gen 3.x) slots
1
PCI Express x4 (Gen 3.x) slots
2
Fiber ports quantity
2
Fiber optic connector
SFP+
Ethernet LAN (RJ-45) ports
6
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
Hard drive
RAID support
Yes
Supported file systems
FAT32-HFS+-NTFS-ZFS-exFAT-ext3-ext4
RAID levels
0-1-2-5-6-10-50-60
Graphics
On-board graphics adapter model
Not available
Design
Cooling type
Active
Fan diameter
6 cm
Product colour
Black- Grey
Number of fans
2 fan(s)
LED indicators
HDD- LAN- Status
Chassis type
Rack (2U)
Technical details
Type
NAS
Device class
Small & Medium Business
Backup function
Yes
Backup features
Cloud- USB drive- iSCSI LUN
Product colour
Black- Grey
Multilingual support
Yes
LED indicators
HDD- LAN- Status
Chassis type
Rack (2U)
Number of fans
2 fan(s)
Performance
Built-in UPnP AV media server
Yes
Built-in FTP server
Yes
System log
Yes
Hot spare
Yes
Built-in BitTorrent client
Yes
Type
NAS
Device class
Small & Medium Business
Backup function
Yes
Backup features
Cloud- USB drive- iSCSI LUN
Windows operating systems supported
Windows 10-Windows 7-Windows 8
Server operating systems supported
Windows Server 2008 R2-Windows Server 2008 R2 x64-Windows Server 2012-Windows Server 2012 R2-Windows Server 2012 R2 x64-Windows Server 2012 x64-Windows Server 2016-Windows Server 2016 x64-Windows Server 2019
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Web-based management
Yes
Security algorithms
256-bit AES
Operating system version
4.5.0
Operating system installed
QNAP Turbo System
Multilingual support
Yes
Access Control List (ACL)
Yes
Third-party support
Yes
Snapshot
Yes
Cooling
Cooling type
Active
Fan diameter
6 cm
Fan voltage
12 V
Number of fans
2 fan(s)
Security
Security algorithms
256-bit AES
Access Control List (ACL)
Yes
Software
Windows operating systems supported
Windows 10-Windows 7-Windows 8
Server operating systems supported
Windows Server 2008 R2-Windows Server 2008 R2 x64-Windows Server 2012-Windows Server 2012 R2-Windows Server 2012 R2 x64-Windows Server 2012 x64-Windows Server 2016-Windows Server 2016 x64-Windows Server 2019
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Operating system version
4.5.0
Operating system installed
QNAP Turbo System
Management features
Web-based management
Yes
Power
Power supply location
Built-in
Power supply unit (PSU) capacity
300 W
Fan voltage
12 V
AC input voltage
100 - 240 V
Redundant power supply (RPS) support
Yes
Power consumption (typical)
105.12 W
Number of power supply units
2
Weight & dimensions
Width
482 mm
Depth
562 mm
Height
88.3 mm
Packaging content
Number of screws
84
Cables included
AC- LAN (RJ-45)
Processor special features
Thermal Monitoring Technologies
Yes
Maximum number of PCI Express lanes
16
Intel® Turbo Boost Technology
2.0
Intel® Secure Key
Yes
Intel® Quick Sync Video Technology
No
Intel® OS Guard
Yes
Intel® InTru⢠3D Technology
No
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel® Clear Video HD Technology (Intel® CVT HD)
No
Intel® AES New Instructions (Intel® AES-NI)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel TSX-NI
Yes
Intel Trusted Execution Technology
Yes
Intel Clear Video Technology
No
Intel 64
Yes
Idle States
Yes
Execute Disable Bit
Yes
Enhanced Intel SpeedStep Technology
Yes
Embedded options available
No
Memory types supported by processor
DDR4-SDRAM
System requirements
Windows operating systems supported
Windows 10-Windows 7-Windows 8
Server operating systems supported
Windows Server 2008 R2-Windows Server 2008 R2 x64-Windows Server 2012-Windows Server 2012 R2-Windows Server 2012 R2 x64-Windows Server 2012 x64-Windows Server 2016-Windows Server 2016 x64-Windows Server 2019
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
5 - 95%
Packaging data
Cables included
AC- LAN (RJ-45)
Other features
Processor ARK ID
191040
Digital Living Network Alliance (DLNA) certified
Yes
