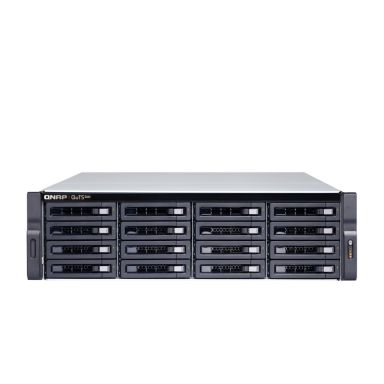

QNAP TS-H1677XU-RP-3700X-32G/224TB-EXOS NAS/storage server Rack (3U) Ethernet LAN Black
In Stock
|
Call For Price
(0808 189 1246)
Storage
Total installed storage capacity
224 TB
Online RAID migration
Yes
Online RAID expansion
Yes
Disk roaming
Yes
Bad block scan
Yes
Storage drives installed
Yes
Installed storage drive type
HDD
Number of storage drives installed
16
Supported storage drive types
HDD & SSD
Number of storage drives supported
16
Storage drive interface
Serial ATA II- Serial ATA III
Hot-swap drive bays
Yes
RAID support
Yes
Supported file systems
FAT32- HFS+- NTFS- ZFS- exFAT- ext3- ext4
RAID levels
0- 1- 5- 6- 10- 50- 60- JBOD
Supported storage drive interfaces
Serial ATA II- Serial ATA III
Storage drive sizes supported
2.5-3.5"
RAID rebuild
Yes
Processor
Processor manufacturer
AMD
Processor threads
16
Processor boost frequency
4.4 GHz
Processor frequency
3.6 GHz
Processor family
AMD Ryzen⢠7
Processor model
3700X
Processor cores
8
Memory
Internal memory type
DDR4
Internal memory
32 GB
Maximum RAM supported
128 GB
Memory slots
4
Flash memory
5000 MB
Memory form factor
UDIMM
Network
Load balancing system
Yes
Link aggregation
Yes
Ethernet LAN data rate supported (max)
10000 Mbit/s
Dynamic DNS (DDNS)
Yes
Ethernet LAN
Yes
Ethernet LAN data rates
1000-10000 Mbit/s
Wake-on-LAN ready
Yes
Jumbo frames support
Yes
iSCSI support
Yes
DHCP server
Yes
Ports & interfaces
USB port
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
PCI Express x8 (Gen 3.x) slots
2
PCI Express x4 (Gen 3.x) slots
2
Fiber ports quantity
2
Fiber optic connector
SFP+
Ethernet LAN (RJ-45) ports
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Hard drive
RAID support
Yes
Supported file systems
FAT32- HFS+- NTFS- ZFS- exFAT- ext3- ext4
RAID levels
0- 1- 5- 6- 10- 50- 60- JBOD
Design
Cooling type
Active
Fan diameter
9.2 cm
Product colour
Black
Number of fans
4 fan(s)
LED indicators
HDD- LAN- Status
Chassis type
Rack (3U)
Technical details
Type
NAS
Device class
Small & Medium Business
Backup function
Yes
Backup features
Cloud- iSCSI LUN
Product colour
Black
Noise level
46.6 dB
Multilingual support
Yes
LED indicators
HDD- LAN- Status
Chassis type
Rack (3U)
Buzzer
Yes
Number of fans
4 fan(s)
Harmonized System (HS) code
84714100
Performance
Built-in FTP server
Yes
System log
Yes
Share folder access right management
Yes
S.M.A.R.T. support
Yes
Password authentication
Yes
Hot spare
Yes
Browser supported
Microsoft Internet Explorer 10+- Google Chrome- Apple Safari 7
Universal Plug and Play (UPnP)
Yes
Type
NAS
Device class
Small & Medium Business
Backup function
Yes
Backup features
Cloud- iSCSI LUN
On/off switch
Yes
Windows operating systems supported
Windows 10- Windows 7- Windows 8- Windows 8.1
Server operating systems supported
Windows Server 2008 R2- Windows Server 2012- Windows Server 2012 R2- Windows Server 2016- Windows Server 2019
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Web-based management
Yes
Security algorithms
256-bit AES- FIPS 140-2- HTTPS- SSH
Reset button
Yes
Operating system version
4.5
Noise level
46.6 dB
Multilingual support
Yes
Buzzer
Yes
Third-party support
Yes
Snapshot
Yes
Cooling
Cooling type
Active
Fan diameter
9.2 cm
Fan voltage
12 V
Number of fans
4 fan(s)
Security
Security algorithms
256-bit AES- FIPS 140-2- HTTPS- SSH
Software
Windows operating systems supported
Windows 10- Windows 7- Windows 8- Windows 8.1
Server operating systems supported
Windows Server 2008 R2- Windows Server 2012- Windows Server 2012 R2- Windows Server 2016- Windows Server 2019
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Operating system version
4.5
Management features
On/off switch
Yes
Web-based management
Yes
Reset button
Yes
Power
Power supply location
Built-in
Power supply unit (PSU) capacity
500 W
Fan voltage
12 V
AC input voltage
100-240 V
Redundant power supply (RPS) support
Yes
Power consumption (typical)
136.45 W
Number of power supply units
2
Weight & dimensions
Width
481 mm
Depth
573.5 mm
Height
130 mm
Weight
15.3 kg
Packaging content
Number of screws
128
Cables included
AC- LAN (RJ-45)
Power cables quantity
2
System requirements
Windows operating systems supported
Windows 10- Windows 7- Windows 8- Windows 8.1
Server operating systems supported
Windows Server 2008 R2- Windows Server 2012- Windows Server 2012 R2- Windows Server 2016- Windows Server 2019
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Operational conditions
Storage temperature (T-T)
-20 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
5 - 95%
Packaging data
Cables included
AC- LAN (RJ-45)
QNAP TS-H1677XU-RP-3700X-32G/224TB-EXOS NAS/storage server Rack (3U) Ethernet LAN Black
