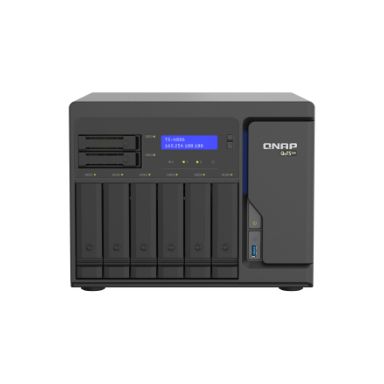

QNAP TS-H886 D-1622 Ethernet LAN Desktop Black, Grey NAS
In Stock
|
Call For Price
(0808 189 1246)
Storage
Total installed storage capacity
72 TB
Online RAID migration
Yes
Online RAID expansion
Yes
Disk roaming
Yes
Bad block scan
Yes
Storage drives installed
Yes
Installed storage drive type
HDD
Number of storage drives installed
8
Supported storage drive types
HDD & SSD
Number of storage drives supported
8
Hot-swap drive bays
Yes
RAID support
Yes
Supported file systems
FAT32-HFS+-NTFS-ZFS-ext3-ext4
RAID levels
0-1-5-6-10-50-60
Supported storage drive interfaces
Serial ATA II- Serial ATA III
Storage drive sizes supported
2.5-3.5"
Number of M.2 (M & B) slots
2
RAID rebuild
Yes
Processor
Processor manufacturer
Intel
Tjunction
105 °C
Thermal Design Power (TDP)
40 W
Tcase
83 °C
Scalability
1S
Processor threads
8
Processor package size
37.5 x 37.5 mm
Processor operating modes
64-bit
Processor lithography
14 nm
Processor cache
6 MB
Processor boost frequency
3.2 GHz
PCI Express slots version
2.0-3.0
On-board graphics adapter model
Not available
CPU configuration (max)
1
Maximum internal memory supported by processor
128 GB
Processor ARK ID
193687
Processor frequency
2.6 GHz
Processor family
Intel® Xeon® D
Processor model
D-1622
Processor cores
4
Memory
Internal memory type
DDR4
Internal memory
16 GB
Maximum RAM supported
128 GB
Flash memory
5000 MB
Memory form factor
UDIMM
Network
Ethernet LAN
Yes
Ethernet LAN data rates
10-100-1000-2500 Mbit/s
Supported network protocols
TCP/IP- HTTP/HTTPS
Jumbo frames support
Yes
DHCP server
Yes
DHCP client
Yes
Ports & interfaces
USB port
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
PCI Express x8 (Gen 3.x) slots
2
Ethernet LAN (RJ-45) ports
4
Hard drive
RAID support
Yes
Supported file systems
FAT32-HFS+-NTFS-ZFS-ext3-ext4
RAID levels
0-1-5-6-10-50-60
Graphics
On-board graphics adapter model
Not available
Design
Fan diameter 2
9.7 cm
Cooling type
Active
Fan diameter
8 cm
Built-in display
Yes
Cable lock slot type
Kensington
Product colour
Black- Grey
Number of fans
3 fan(s)
LED indicators
HDD- SSD- Status
Chassis type
Desktop
Cable lock slot
Yes
Technical details
Type
NAS
Device class
Small & Medium Business
Backup function
Yes
Backup features
Cloud- iSCSI LUN
Built-in display
Yes
Product colour
Black- Grey
Noise level
20.4 dB
Multilingual support
Yes
LED indicators
HDD- SSD- Status
Chassis type
Desktop
Buzzer
Yes
Number of fans
3 fan(s)
Performance
Built-in FTP server
Yes
System log
Yes
Share folder
CIFS/SMB
S.M.A.R.T. support
Yes
Hot spare
Yes
Browser supported
Apple Safari 7+- Google Chrome- Microsoft Internet Explorer 10+- Mozilla Firefox
Universal Plug and Play (UPnP)
Yes
Type
NAS
Device class
Small & Medium Business
Backup function
Yes
Backup features
Cloud- iSCSI LUN
On/off switch
Yes
Windows operating systems supported
Windows 10-Windows 7-Windows 8
Server operating systems supported
Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016-Windows Server 2019
Mac operating systems supported
Mac OS X 10.10 Yosemite- Mac OS X 10.11 El Capitan- Mac OS X 10.12 Sierra- Mac OS X 10.13 High Sierra- Mac OS X 10.14 Mojave- Mac OS X 10.15 Catalina
Linux operating systems supported
Yes
Web-based management
Yes
Security algorithms
256-bit AES-AES-FIPS 140-2-HTTPS-SSH-SSL/TLS
Reset button
Yes
Operating system version
4.5.0
Operating system installed
QNAP Turbo System
Noise level
20.4 dB
Multilingual support
Yes
Buzzer
Yes
Access Control List (ACL)
Yes
Snapshot
Yes
USB copy function
Yes
Cooling
Cooling type
Active
Fan diameter
8 cm
Number of fans
3 fan(s)
Security
Cable lock slot type
Kensington
Security algorithms
256-bit AES-AES-FIPS 140-2-HTTPS-SSH-SSL/TLS
Cable lock slot
Yes
Access Control List (ACL)
Yes
Software
Windows operating systems supported
Windows 10-Windows 7-Windows 8
Server operating systems supported
Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016-Windows Server 2019
Mac operating systems supported
Mac OS X 10.10 Yosemite- Mac OS X 10.11 El Capitan- Mac OS X 10.12 Sierra- Mac OS X 10.13 High Sierra- Mac OS X 10.14 Mojave- Mac OS X 10.15 Catalina
Linux operating systems supported
Yes
Operating system version
4.5.0
Operating system installed
QNAP Turbo System
Management features
On/off switch
Yes
Web-based management
Yes
Reset button
Yes
Power
Power supply location
Built-in
Power supply unit (PSU) capacity
250 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
75.79 W
Number of power supply units
1
Weight & dimensions
Width
292.9 mm
Depth
319.8 mm
Height
231.9 mm
Weight
8.5 kg
Packaging content
Number of screws
32
Cables included
AC- LAN (RJ-45)
Processor special features
Thermal Monitoring Technologies
Yes
Maximum number of PCI Express lanes
32
Intel® Turbo Boost Technology
2.0
Intel® Secure Key
Yes
Intel® OS Guard
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel TSX-NI
Yes
Intel Trusted Execution Technology
Yes
Intel QuickAssist Technology
No
Intel 64
Yes
Idle States
Yes
Execute Disable Bit
Yes
Enhanced Intel SpeedStep Technology
Yes
Embedded options available
No
Memory types supported by processor
DDR3-SDRAM-DDR4-SDRAM
System requirements
Windows operating systems supported
Windows 10-Windows 7-Windows 8
Server operating systems supported
Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016-Windows Server 2019
Mac operating systems supported
Mac OS X 10.10 Yosemite- Mac OS X 10.11 El Capitan- Mac OS X 10.12 Sierra- Mac OS X 10.13 High Sierra- Mac OS X 10.14 Mojave- Mac OS X 10.15 Catalina
Linux operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 35 °C
Operating relative humidity (H-H)
5 - 95%
Packaging data
Cables included
AC- LAN (RJ-45)
Other features
Processor ARK ID
193687
QNAP TS-H886 D-1622 Ethernet LAN Desktop Black, Grey NAS
| Length | 31.98 cm |
| Width | 29.29 cm |
| Height | 23.19 cm |
| Weight | 8.500000 kgs |
