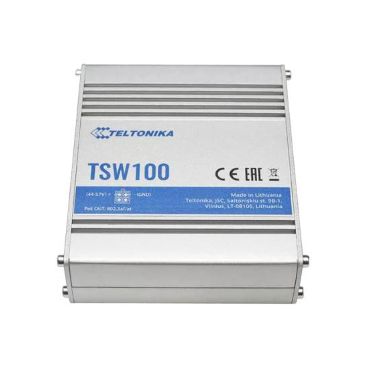

Teltonika TSW100 5-Port Unmanaged Desktop Gigabit PoE+ Switch (120W)
In Stock
|
$66.69
$80.03 (Inc. VAT)
Performance
Packet buffer memory
0.128 MB
Harmonized System (HS) code
85176990
Technical details
Product colour
Blue, Metallic
Housing material
Aluminium
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Network
Networking standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Auto MDI/MDI-X
Yes
Data transmission
Jumbo frames
9216
Packet buffer memory
0.128 MB
MAC address table
2000 entries
Certificates
Certification
CE/RED, EAC, RoHS, WEEE
Draft ETSI EN 301 489-1 V2.2.0, Draft EN 301 489-19 V2.1.0, Draft ETSI EN 301 489-52 V1.1.0
EN 61000-4-2:2009
EN 300 511 V12.5.1, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 908-2 V11.1.2, ETSI EN 301 908-13 V11.1.2
EN 61000-4-3:2006 + A1:2008 + A2:2010
EN 61000-4-4:2012
EN 61000-4-5:2014
EN 61000-4-6:2014
EN 61000-4-11:2004
Memory
Packet buffer memory
0.128 MB
Design
Product colour
Blue, Metallic
LED indicators
Power, Status
Housing material
Aluminium
Certification
CE/RED, EAC, RoHS, WEEE
Draft ETSI EN 301 489-1 V2.2.0, Draft EN 301 489-19 V2.1.0, Draft ETSI EN 301 489-52 V1.1.0
EN 61000-4-2:2009
EN 300 511 V12.5.1, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 908-2 V11.1.2, ETSI EN 301 908-13 V11.1.2
EN 61000-4-3:2006 + A1:2008 + A2:2010
EN 61000-4-4:2012
EN 61000-4-5:2014
EN 61000-4-6:2014
EN 61000-4-11:2004
Indication
LED indicators
Power, Status
Power
Power consumption (max)
129 W
DC input voltage
7 - 58 V
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
120 W
Power over Ethernet (PoE) ports quantity
4
Power over Ethernet (PoE)
Yes
Operational conditions
Operating temperature (T-T)
-40 - 75 °C
Operating relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
115 mm
Depth
95 mm
Height
32 mm
Logistics data
Harmonized System (HS) code
85176990
Teltonika TSW100 5-Port Unmanaged Desktop Gigabit PoE+ Switch (120W)
