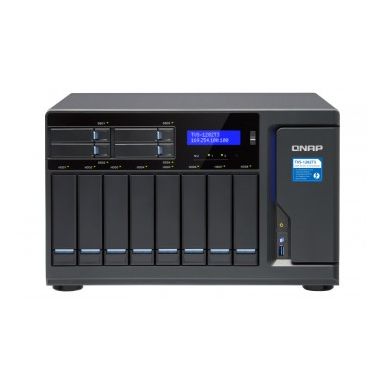

QNAP TVS-1282T3 Ethernet LAN Tower Black NAS
In Stock
|
Call For Price
(0808 189 1246)
Storage
Total installed storage capacity
96 TB
Online RAID migration
Yes
Online RAID expansion
Yes
Disk roaming
Yes
Bad block scan
Yes
Storage drives installed
Yes
Installed storage drive type
HDD
Supported storage drive types
HDD & SSD
Number of storage drives supported
12
Storage drive interface
Serial ATA
Hot-swap drive bays
Yes
RAID support
Yes
Supported file systems
FAT32-HFS+-NTFS-exFAT-ext3-ext4
RAID levels
0-1-5+S-5-6-6+HS-10+HS-10-JBOD
Supported storage drive interfaces
M.2- Serial ATA
Storage drive sizes supported
2.5-3.5-M.2
Number of M.2 (M & B) slots
2
Processor
Processor manufacturer
Intel
Tjunction
100 °C
Thermal Design Power (TDP)
65 W
System bus rate
8 GT/s
Stepping
B0
Scalability
1S
Processor threads
4
Processor socket
LGA 1151 (Socket H4)
Processor series
Intel Core i5-7500 Desktop Series
Processor package size
37.5 x 37.5 mm
Processor operating modes
64-bit
Processor lithography
14 nm
Processor codename
Kaby Lake
Processor code
SR335
Processor cache type
Smart Cache
Processor cache
6 MB
Processor boost frequency
3.8 GHz
PCI Express slots version
3.0
PCI Express configurations
1x16-1x8+2x4-2x8
On-board graphics adapter model
Intel® HD Graphics 630
ECC supported by processor
No
CPU configuration (max)
1
Bus type
DMI3
Maximum internal memory supported by processor
64 GB
Conflict-Free processor
Yes
Processor ARK ID
97123
Processor frequency
3.4 GHz
Processor family
7th gen Intel® Core⢠i5
Processor model
i5-7500
Processor cores
4
Memory
Internal memory type
DDR4
Internal memory
16 GB
Memory clock speed
2133 MHz
Maximum RAM supported
64 GB
Memory slots
4x DIMM
Flash memory
512 MB
Network
Link aggregation
Yes
Ethernet LAN data rate supported (max)
10000 Mbit/s
Dynamic DNS (DDNS)
Yes
Ethernet LAN
Yes
Ethernet LAN data rates
10-100-1000-10000 Mbit/s
Wi-Fi
No
Wake-on-LAN ready
Yes
Supported network protocols
CIFS/SMB- AFP (v3.3)- NFS(v3)- FTP- FTPS- SFTP- TFTP- HTTP(S)- Telnet- SSH- iSCSI- SNMP- SMTP- SMSC
Jumbo frames support
Yes
iSCSI support
Yes
DHCP server
Yes
DHCP client
Yes
WLAN adapter supported
Yes
Ports & interfaces
USB port
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
5
Thunderbolt 3 ports quantity
4
PCI Express x8 (Gen 3.x) slots
1
PCI Express x4 (Gen 3.x) slots
2
6.35 mm (1â4-inch) input
2
3.5 mm (1/8-inch) out
Yes
HDMI ports quantity
3
Ethernet LAN (RJ-45) ports
6
Hard drive
RAID support
Yes
Supported file systems
FAT32-HFS+-NTFS-exFAT-ext3-ext4
RAID levels
0-1-5+S-5-6-6+HS-10+HS-10-JBOD
Graphics
On-board graphics adapter OpenGL version
4.4
On-board graphics adapter model
Intel® HD Graphics 630
On-board graphics adapter ID
5912
On-board graphics adapter dynamic frequency (max)
1100 MHz
On-board graphics adapter DirectX version
12.0
On-board graphics adapter base frequency
350 MHz
Maximum on-board graphics adapter memory
64 GB
Number of displays supported (on-board graphics)
3
Design
Number of built-in speakers
2
Built-in speaker(s)
Yes
Fan diameter 2
9 cm
Cooling type
Active
Fan diameter
8 cm
Built-in display
Yes
Display type
LCD
Cable lock slot type
Kensington
Product colour
Black
Number of fans
5 fan(s)
LED indicators
HDD- SSD- Status
Chassis type
Tower
Cable lock slot
Yes
Technical details
Type
NAS
Device class
Small & Medium Business
Backup function
Yes
Backup features
Cloud- USB drive- iSCSI LUN
Built-in display
Yes
Display type
LCD
Product colour
Black
Number of users
4096 user(s)
Noise level
21.6 dB
Multilingual support
Yes
LED indicators
HDD- SSD- Status
Chassis type
Tower
Buzzer
Yes
Number of fans
5 fan(s)
Performance
Built-in iTunes server
Yes
Built-in FTP server
Yes
System log
Yes
Share folder access right management
Yes
Share folder
512
S.M.A.R.T. support
Yes
Hot spare
Yes
Browser supported
Apple Safari 7+- Google Chrome- Microsoft Internet Explorer 10+- Mozilla Firefox
Remotely operated
Yes
Backup button
Yes
Universal Plug and Play (UPnP)
Yes
Type
NAS
Device class
Small & Medium Business
Backup function
Yes
Backup features
Cloud- USB drive- iSCSI LUN
On/off switch
Yes
Windows operating systems supported
Windows 10-Windows 10 Education-Windows 10 Education x64-Windows 10 Enterprise-Windows 10 Enterprise x64-Windows 10 Home-Windows 10 Home x64-Windows 10 IOT Core-Windows 10 Pro-Windows 10 Pro x64-Windows 7-Windows 7 Enterprise-Windows 7 Enterprise x64-Windows 7 Home Basic-Windows 7 Home Basic x64-Windows 7 Home Premium-Windows 7 Home Premium x64-Windows 7 Professional-Windows 7 Professional x64-Windows 7 Starter-Windows 7 Starter x64-Windows 7 Ultimate-Windows 7 Ultimate x64-Windows 7 x64-Windows 8-Windows 8 Enterprise-Windows 8 Enterprise x64-Windows 8 Pro-Windows 8 Pro x64-Windows 8 x64
Server operating systems supported
Windows Server 2003-Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016
Mac operating systems supported
Mac OS X 10.7 Lion-Mac OS X 10.8 Mountain Lion-Mac OS X 10.9 Mavericks
Linux operating systems supported
Yes
Web-based management
Yes
Security algorithms
256-bit AES-FIPS 140-2-HTTPS-SSH
Reset button
Yes
Operating system version
4.3
Operating system installed
QNAP Turbo System
Number of users
4096 user(s)
Noise level
21.6 dB
Multilingual support
Yes
Management protocols
SNMP
Buzzer
Yes
Third-party support
Yes
Snapshot
Yes
USB copy function
Yes
Cooling
Cooling type
Active
Fan diameter
8 cm
Number of fans
5 fan(s)
Security
Cable lock slot type
Kensington
Security algorithms
256-bit AES-FIPS 140-2-HTTPS-SSH
Cable lock slot
Yes
Software
Windows operating systems supported
Windows 10-Windows 10 Education-Windows 10 Education x64-Windows 10 Enterprise-Windows 10 Enterprise x64-Windows 10 Home-Windows 10 Home x64-Windows 10 IOT Core-Windows 10 Pro-Windows 10 Pro x64-Windows 7-Windows 7 Enterprise-Windows 7 Enterprise x64-Windows 7 Home Basic-Windows 7 Home Basic x64-Windows 7 Home Premium-Windows 7 Home Premium x64-Windows 7 Professional-Windows 7 Professional x64-Windows 7 Starter-Windows 7 Starter x64-Windows 7 Ultimate-Windows 7 Ultimate x64-Windows 7 x64-Windows 8-Windows 8 Enterprise-Windows 8 Enterprise x64-Windows 8 Pro-Windows 8 Pro x64-Windows 8 x64
Server operating systems supported
Windows Server 2003-Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016
Mac operating systems supported
Mac OS X 10.7 Lion-Mac OS X 10.8 Mountain Lion-Mac OS X 10.9 Mavericks
Linux operating systems supported
Yes
Operating system version
4.3
Operating system installed
QNAP Turbo System
Management features
On/off switch
Yes
Web-based management
Yes
Reset button
Yes
Management protocols
SNMP
Power
Power supply location
Built-in
Power supply unit (PSU) capacity
250 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Number of power supply units
1
Weight & dimensions
Width
369.9 mm
Depth
319.8 mm
Height
234.6 mm
Weight
11.6 kg
Package weight
13.7 kg
Packaging content
Number of screws
26
Handheld remote control
Yes
Quick installation guide
Yes
Cables included
AC- LAN (RJ-45)
Processor special features
Thermal solution specification
PCG 2015C
Thermal Monitoring Technologies
Yes
Maximum number of PCI Express lanes
16
Intel® Turbo Boost Technology
2.0
Intel® Secure Key
Yes
Intel® Quick Sync Video Technology
Yes
Intel® OS Guard
Yes
Intel® InTru⢠3D Technology
Yes
Intel® Identity Protection Technology (Intel® IPT)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
Yes
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel TSX-NI version
1.00
Intel TSX-NI
Yes
Intel Trusted Execution Technology
Yes
Intel Stable Image Platform Program (SIPP) version
1.00
Intel Stable Image Platform Program (SIPP)
Yes
Intel Secure Key Technology version
1.00
Intel Identity Protection Technology version
1.00
Intel Enhanced Halt State
Yes
Intel Clear Video Technology
Yes
Intel 64
Yes
Idle States
Yes
Execute Disable Bit
Yes
Enhanced Intel SpeedStep Technology
Yes
Embedded options available
Yes
Memory channels supported by processor
Dual
Memory types supported by processor
DDR3L-SDRAM-DDR4-SDRAM
Memory voltage supported by processor
1.35 V
System requirements
Windows operating systems supported
Windows 10-Windows 10 Education-Windows 10 Education x64-Windows 10 Enterprise-Windows 10 Enterprise x64-Windows 10 Home-Windows 10 Home x64-Windows 10 IOT Core-Windows 10 Pro-Windows 10 Pro x64-Windows 7-Windows 7 Enterprise-Windows 7 Enterprise x64-Windows 7 Home Basic-Windows 7 Home Basic x64-Windows 7 Home Premium-Windows 7 Home Premium x64-Windows 7 Professional-Windows 7 Professional x64-Windows 7 Starter-Windows 7 Starter x64-Windows 7 Ultimate-Windows 7 Ultimate x64-Windows 7 x64-Windows 8-Windows 8 Enterprise-Windows 8 Enterprise x64-Windows 8 Pro-Windows 8 Pro x64-Windows 8 x64
Server operating systems supported
Windows Server 2003-Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016
Mac operating systems supported
Mac OS X 10.7 Lion-Mac OS X 10.8 Mountain Lion-Mac OS X 10.9 Mavericks
Linux operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
5 - 95%
Packaging data
Package weight
13.7 kg
Cables included
AC- LAN (RJ-45)
Other features
Processor ARK ID
97123
QNAP TVS-1282T3 Ethernet LAN Tower Black NAS
| Length | 31.98 cm |
| Width | 36.99 cm |
| Height | 23.46 cm |
| Weight | 11.600000 kgs |
