Storage | |
---|---|
Total installed storage capacity | 12 TB |
Online RAID migration | Yes |
Online RAID expansion | Yes |
Bad block scan | Yes |
Storage drives installed | Yes |
Installed storage drive type | HDD |
Supported storage drive types | HDD & SSD |
Number of storage drives supported | 4 |
Hot-swap drive bays | Yes |
RAID support | Yes |
Supported file systems | FAT32-HFS+-NTFS-exFAT-ext3-ext4 |
RAID levels | 0-1-5-6-10-JBOD |
Supported storage drive interfaces | M.2- Serial ATA III |
Storage drive sizes supported | 2.5-3.5-M.2 |
Number of M.2 (M & B) slots | 2 |
RAID rebuild | Yes |
Processor | |
Processor manufacturer | Intel |
Thermal Design Power (TDP) | 35 W |
System bus rate | 8 GT/s |
Scalability | 1S |
Processor threads | 4 |
Processor socket | LGA 1151 (Socket H4) |
Processor package size | 37.5 x 37.5 mm |
Processor operating modes | 64-bit |
Processor lithography | 14 nm |
Processor codename | Coffee Lake |
Processor cache type | Smart Cache |
Processor cache | 4 MB |
PCI Express slots version | 3.0 |
PCI Express configurations | 1x8+2x4-1x16-2x8 |
On-board graphics adapter model | Intel® UHD Graphics 610 |
CPU configuration (max) | 1 |
Configurable TDP-down frequency | 2.1 GHz |
Bus type | DMI3 |
Maximum internal memory supported by processor | 64 GB |
Memory bandwidth supported by processor (max) | 37.5 GB/s |
Processor ARK ID | 129949 |
Processor frequency | 3.1 GHz |
Processor family | Intel® Pentium® |
Processor model | G5400T |
Processor cores | 2 |
Memory | |
Internal memory type | DDR4 |
Internal memory | 4 GB |
Maximum RAM supported | 32 GB |
Memory slots | 2 x SODIMM |
Flash memory | 4000 MB |
Network | |
Load balancing system | Yes |
Link aggregation | Yes |
Ethernet LAN data rate supported (max) | 10000 Mbit/s |
Dynamic DNS (DDNS) | Yes |
Ethernet LAN | Yes |
Ethernet LAN data rates | 10-100-1000-1200-2500-5000-10000 Mbit/s |
Wi-Fi | No |
Wake-on-LAN ready | Yes |
Supported network protocols | TCP/IP- IPv4- IPv6 |
Jumbo frames support | Yes |
iSCSI support | Yes |
DHCP server | Yes |
DHCP client | Yes |
WLAN adapter supported | Yes |
Ports & interfaces | |
USB port | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
HDMI version | 2.0 |
Thunderbolt 3 ports quantity | 2 |
PCI Express x4 (Gen 3.x) slots | 1 |
3.5 mm (1/8-inch) out | Yes |
Microphone in | Yes |
HDMI ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 3 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
Hard drive | |
RAID support | Yes |
Supported file systems | FAT32-HFS+-NTFS-exFAT-ext3-ext4 |
RAID levels | 0-1-5-6-10-JBOD |
Graphics | |
On-board graphics adapter OpenGL version | 4.5 |
On-board graphics adapter model | Intel® UHD Graphics 610 |
On-board graphics adapter ID | 0x3E90/x93 |
On-board graphics adapter dynamic frequency (max) | 1050 MHz |
On-board graphics adapter DirectX version | 12.0 |
On-board graphics adapter base frequency | 350 MHz |
Maximum on-board graphics adapter memory | 64 GB |
Number of displays supported (on-board graphics) | 3 |
Design | |
Number of built-in speakers | 1 |
Built-in speaker(s) | Yes |
Fan diameter 2 | 6 cm |
Cooling type | Active |
Fan diameter | 12 cm |
Built-in display | Yes |
Cable lock slot type | Kensington |
Product colour | Black |
Number of fans | 3 fan(s) |
LED indicators | HDD- LAN- Status- USB |
Chassis type | Tower |
Cable lock slot | Yes |
Technical details | |
Type | NAS |
Device class | Home & Home Office |
Backup function | Yes |
Backup features | iSCSI LUN |
Built-in display | Yes |
Product colour | Black |
Multilingual support | Yes |
LED indicators | HDD- LAN- Status- USB |
Chassis type | Tower |
Buzzer | Yes |
Number of fans | 3 fan(s) |
Performance | |
Built-in iTunes server | Yes |
Built-in FTP server | Yes |
System log | Yes |
Share folder access right management | Yes |
Share folder | CIFS/SMB |
S.M.A.R.T. support | Yes |
Hot spare | Yes |
Browser supported | Apple Safari 7- Google Chrome- Microsoft Internet Explorer 10- Mozilla Firefox |
Universal Plug and Play (UPnP) | Yes |
Type | NAS |
Device class | Home & Home Office |
Backup function | Yes |
Backup features | iSCSI LUN |
On/off switch | Yes |
Windows operating systems supported | Windows 10-Windows 10 Education-Windows 10 Education x64-Windows 10 Enterprise-Windows 10 Enterprise x64-Windows 10 Home-Windows 10 Home x64-Windows 10 IOT Core-Windows 10 Pro-Windows 10 Pro x64-Windows 7-Windows 7 Enterprise-Windows 7 Enterprise x64-Windows 7 Home Basic-Windows 7 Home Basic x64-Windows 7 Home Premium-Windows 7 Home Premium x64-Windows 7 Professional-Windows 7 Professional x64-Windows 7 Starter-Windows 7 Starter x64-Windows 7 Ultimate-Windows 7 Ultimate x64-Windows 7 x64-Windows 8-Windows 8 Enterprise-Windows 8 Enterprise x64-Windows 8 Pro-Windows 8 Pro x64-Windows 8 x64 |
Server operating systems supported | Windows Server 2003-Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016 |
Mac operating systems supported | Mac OS X 10.10 Yosemite- Mac OS X 10.11 El Capitan- Mac OS X 10.12 Sierra- Mac OS X 10.13 High Sierra- Mac OS X 10.14 Mojave- Mac OS X 10.7 Lion- Mac OS X 10.8 Mountain Lion- Mac OS X 10.9 Mavericks |
Linux operating systems supported | Yes |
Web-based management | Yes |
Security algorithms | 256-bit AES-HTTPS-SSH-SSL/TLS |
Reset button | Yes |
Operating system version | 4.4.0 |
Operating system installed | QNAP Turbo System |
Multilingual support | Yes |
Buzzer | Yes |
Access Control List (ACL) | Yes |
Snapshot | Yes |
Cooling | |
Cooling type | Active |
Fan diameter | 12 cm |
Fan voltage | 12 V |
Number of fans | 3 fan(s) |
Security | |
Cable lock slot type | Kensington |
Security algorithms | 256-bit AES-HTTPS-SSH-SSL/TLS |
Cable lock slot | Yes |
Access Control List (ACL) | Yes |
Software | |
Windows operating systems supported | Windows 10-Windows 10 Education-Windows 10 Education x64-Windows 10 Enterprise-Windows 10 Enterprise x64-Windows 10 Home-Windows 10 Home x64-Windows 10 IOT Core-Windows 10 Pro-Windows 10 Pro x64-Windows 7-Windows 7 Enterprise-Windows 7 Enterprise x64-Windows 7 Home Basic-Windows 7 Home Basic x64-Windows 7 Home Premium-Windows 7 Home Premium x64-Windows 7 Professional-Windows 7 Professional x64-Windows 7 Starter-Windows 7 Starter x64-Windows 7 Ultimate-Windows 7 Ultimate x64-Windows 7 x64-Windows 8-Windows 8 Enterprise-Windows 8 Enterprise x64-Windows 8 Pro-Windows 8 Pro x64-Windows 8 x64 |
Server operating systems supported | Windows Server 2003-Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016 |
Mac operating systems supported | Mac OS X 10.10 Yosemite- Mac OS X 10.11 El Capitan- Mac OS X 10.12 Sierra- Mac OS X 10.13 High Sierra- Mac OS X 10.14 Mojave- Mac OS X 10.7 Lion- Mac OS X 10.8 Mountain Lion- Mac OS X 10.9 Mavericks |
Linux operating systems supported | Yes |
Operating system version | 4.4.0 |
Operating system installed | QNAP Turbo System |
Management features | |
On/off switch | Yes |
Web-based management | Yes |
Reset button | Yes |
Power | |
Power supply unit (PSU) capacity | 250 W |
Fan voltage | 12 V |
AC input voltage | 100 - 240 V |
Weight & dimensions | |
Width | 199.3 mm |
Depth | 279.6 mm |
Height | 188.2 mm |
Packaging content | |
Quick installation guide | Yes |
Cables included | AC- LAN (RJ-45) |
Processor special features | |
Thermal solution specification | PCG 2015A |
Thermal Monitoring Technologies | Yes |
Maximum number of PCI Express lanes | 16 |
Intel® Turbo Boost Technology | No |
Intel® Secure Key | Yes |
Intel® Quick Sync Video Technology | Yes |
Intel® OS Guard | Yes |
Intel® InTru™ 3D Technology | Yes |
Intel® Identity Protection Technology (Intel® IPT) | Yes |
Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
Intel® AES New Instructions (Intel® AES-NI) | Yes |
Intel VT-x with Extended Page Tables (EPT) | Yes |
Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Intel Virtualization Technology (VT-x) | Yes |
Intel TSX-NI version | 0.00 |
Intel TSX-NI | No |
Intel Trusted Execution Technology | No |
Intel Stable Image Platform Program (SIPP) version | 0.00 |
Intel Stable Image Platform Program (SIPP) | No |
Intel Secure Key Technology version | 1.00 |
Intel Identity Protection Technology version | 1.00 |
Intel Enhanced Halt State | Yes |
Intel Clear Video Technology | Yes |
Intel 64 | Yes |
Idle States | Yes |
Execute Disable Bit | Yes |
Enhanced Intel SpeedStep Technology | Yes |
Embedded options available | Yes |
Memory types supported by processor | DDR4-SDRAM |
System requirements | |
Windows operating systems supported | Windows 10-Windows 10 Education-Windows 10 Education x64-Windows 10 Enterprise-Windows 10 Enterprise x64-Windows 10 Home-Windows 10 Home x64-Windows 10 IOT Core-Windows 10 Pro-Windows 10 Pro x64-Windows 7-Windows 7 Enterprise-Windows 7 Enterprise x64-Windows 7 Home Basic-Windows 7 Home Basic x64-Windows 7 Home Premium-Windows 7 Home Premium x64-Windows 7 Professional-Windows 7 Professional x64-Windows 7 Starter-Windows 7 Starter x64-Windows 7 Ultimate-Windows 7 Ultimate x64-Windows 7 x64-Windows 8-Windows 8 Enterprise-Windows 8 Enterprise x64-Windows 8 Pro-Windows 8 Pro x64-Windows 8 x64 |
Server operating systems supported | Windows Server 2003-Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016 |
Mac operating systems supported | Mac OS X 10.10 Yosemite- Mac OS X 10.11 El Capitan- Mac OS X 10.12 Sierra- Mac OS X 10.13 High Sierra- Mac OS X 10.14 Mojave- Mac OS X 10.7 Lion- Mac OS X 10.8 Mountain Lion- Mac OS X 10.9 Mavericks |
Linux operating systems supported | Yes |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 °C |
Operating relative humidity (H-H) | 5 - 95% |
Packaging data | |
Cables included | AC- LAN (RJ-45) |
Other features | |
Processor ARK ID | 129949 |

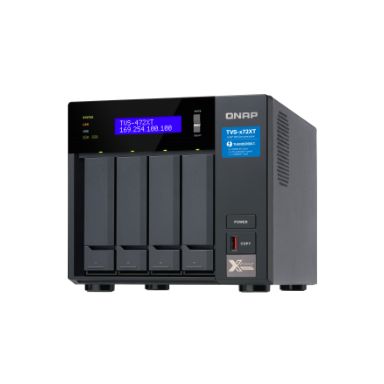

QNAP TVS-472XT G5400T Ethernet LAN Tower Black NAS
