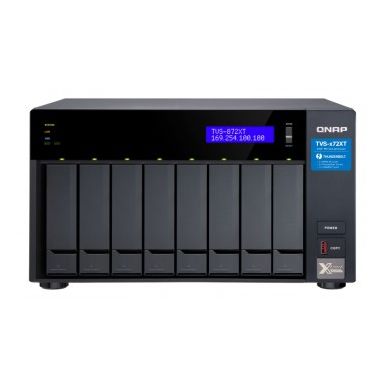

QNAP TVS-872XT i5-8400T Ethernet LAN Tower Black NAS
In Stock
|
Call For Price
(0808 189 1246)
Storage
Total installed storage capacity
128 TB
Online RAID migration
Yes
Online RAID expansion
Yes
Bad block scan
Yes
Storage drives installed
Yes
Installed storage drive type
HDD
Number of storage drives installed
8
Number of storage drives supported
8
Storage drive capacity
16000 GB
Hot-swap drive bays
Yes
RAID support
Yes
Supported file systems
FAT32-HFS+-NTFS-ext3-ext4
RAID levels
0-1-5-6-10-50-60-JBOD
Supported storage drive interfaces
Serial ATA III
Storage drive sizes supported
2.5-3.5"
Number of M.2 (M & B) slots
2
RAID rebuild
Yes
Processor
Processor manufacturer
Intel
Tjunction
100 °C
Thermal Design Power (TDP)
35 W
System bus rate
8 GT/s
Stepping
U0
Scalability
1S
Processor threads
6
Processor socket
LGA 1151 (Socket H4)
Processor package size
37.5 x 37.5 mm
Processor operating modes
64-bit
Processor lithography
14 nm
Processor codename
Coffee Lake
Processor code
SR3X6
Processor cache type
Smart Cache
Processor cache
9 MB
Processor boost frequency
3.3 GHz
PCI Express slots version
3.0
PCI Express configurations
1x16-1x8+2x4-2x8
On-board graphics adapter model
Intel® UHD Graphics 630
CPU configuration (max)
1
Configurable TDP-down frequency
1.2 GHz
Bus type
DMI3
Maximum internal memory supported by processor
64 GB
Memory bandwidth supported by processor (max)
41.6 GB/s
Conflict-Free processor
Yes
Processor ARK ID
129940
Processor frequency
1.7 GHz
Processor family
8th gen Intel® Core⢠i5
Processor model
i5-8400T
Processor cores
6
Memory
Internal memory type
DDR4
Internal memory
16 GB
Maximum RAM supported
32 GB
Memory slots
2
Flash memory
5000 MB
Network
Ethernet LAN data rate supported (max)
10000 Mbit/s
Dynamic DNS (DDNS)
Yes
Ethernet LAN
Yes
Ethernet LAN data rates
10-100-1000-10000 Mbit/s
Wake-on-LAN ready
Yes
Supported network protocols
TCP/IP- IPv4- IPv6
Jumbo frames support
Yes
iSCSI support
Yes
DHCP server
Yes
DHCP client
Yes
WLAN adapter supported
Yes
Ports & interfaces
USB port
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
HDMI version
2.0
Thunderbolt 3 ports quantity
2
PCI Express x4 (Gen 3.x) slots
1
3.5 mm (1/8-inch) out
Yes
Microphone in
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
Hard drive
RAID support
Yes
Supported file systems
FAT32-HFS+-NTFS-ext3-ext4
RAID levels
0-1-5-6-10-50-60-JBOD
Graphics
On-board graphics adapter OpenGL version
4.5
On-board graphics adapter model
Intel® UHD Graphics 630
On-board graphics adapter ID
0x3E92
On-board graphics adapter dynamic frequency (max)
1050 MHz
On-board graphics adapter DirectX version
12.0
On-board graphics adapter base frequency
350 MHz
Maximum on-board graphics adapter memory
64 GB
Number of displays supported (on-board graphics)
3
Design
Number of built-in speakers
1
Built-in speaker(s)
Yes
Fan diameter 2
6 cm
Cooling type
Active
Fan diameter
12 cm
Built-in display
Yes
Cable lock slot type
Kensington
Product colour
Black
Number of fans
4 fan(s)
LED indicators
HDD- LAN- USB
Chassis type
Tower
Cable lock slot
Yes
Technical details
Type
NAS
Device class
Small & Medium Business
Backup function
Yes
Backup features
Cloud- iSCSI LUN
Built-in display
Yes
Product colour
Black
Noise level
24.2 dB
Multilingual support
Yes
LED indicators
HDD- LAN- USB
Chassis type
Tower
Buzzer
Yes
Number of fans
4 fan(s)
Performance
Built-in iTunes server
Yes
Built-in FTP server
Yes
System log
Yes
Share folder
CIFS/SMB
S.M.A.R.T. support
Yes
Hot spare
Yes
Browser supported
Apple Safari 7+- Google Chrome- Microsoft Internet Explorer 10+- Mozilla Firefox
Universal Plug and Play (UPnP)
Yes
Type
NAS
Device class
Small & Medium Business
Backup function
Yes
Backup features
Cloud- iSCSI LUN
On/off switch
Yes
Windows operating systems supported
Windows 10-Windows 7-Windows 8
Server operating systems supported
Windows Server 2003-Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016
Mac operating systems supported
Mac OS X 10.10 Yosemite- Mac OS X 10.11 El Capitan- Mac OS X 10.12 Sierra- Mac OS X 10.13 High Sierra- Mac OS X 10.14 Mojave- Mac OS X 10.7 Lion- Mac OS X 10.8 Mountain Lion- Mac OS X 10.9 Mavericks
Linux operating systems supported
Yes
Web-based management
Yes
Security algorithms
256-bit AES-FIPS 140-2-HTTPS-SNMPv3-SSH-SSL/TLS
Reset button
Yes
Operating system version
4.4.0
Operating system installed
QNAP Turbo System
Noise level
24.2 dB
Multilingual support
Yes
Buzzer
Yes
Access Control List (ACL)
Yes
USB copy function
Yes
Cooling
Cooling type
Active
Fan diameter
12 cm
Fan voltage
12 V
Number of fans
4 fan(s)
Security
Cable lock slot type
Kensington
Security algorithms
256-bit AES-FIPS 140-2-HTTPS-SNMPv3-SSH-SSL/TLS
Cable lock slot
Yes
Access Control List (ACL)
Yes
Software
Windows operating systems supported
Windows 10-Windows 7-Windows 8
Server operating systems supported
Windows Server 2003-Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016
Mac operating systems supported
Mac OS X 10.10 Yosemite- Mac OS X 10.11 El Capitan- Mac OS X 10.12 Sierra- Mac OS X 10.13 High Sierra- Mac OS X 10.14 Mojave- Mac OS X 10.7 Lion- Mac OS X 10.8 Mountain Lion- Mac OS X 10.9 Mavericks
Linux operating systems supported
Yes
Operating system version
4.4.0
Operating system installed
QNAP Turbo System
Management features
On/off switch
Yes
Web-based management
Yes
Reset button
Yes
Power
Power consumption (HDD standby)
41.47 W
Power supply location
Built-in
Power supply unit (PSU) capacity
250 W
Fan voltage
12 V
AC input voltage
100 - 240 V
Power consumption (typical)
65.03 W
Number of power supply units
1
Weight & dimensions
Width
329.3 mm
Depth
279.6 mm
Height
188.2 mm
Packaging content
Cables included
AC- LAN (RJ-45)
Processor special features
Thermal solution specification
PCG 2015A
Thermal Monitoring Technologies
Yes
Maximum number of PCI Express lanes
16
Intel® Turbo Boost Technology
2.0
Intel® Secure Key
Yes
Intel® Quick Sync Video Technology
Yes
Intel® OS Guard
Yes
Intel® InTru⢠3D Technology
Yes
Intel® Identity Protection Technology (Intel® IPT)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
Yes
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel TSX-NI version
0.00
Intel TSX-NI
No
Intel Trusted Execution Technology
No
Intel Stable Image Platform Program (SIPP) version
0.00
Intel Stable Image Platform Program (SIPP)
No
Intel Secure Key Technology version
1.00
Intel Identity Protection Technology version
1.00
Intel Enhanced Halt State
Yes
Intel Clear Video Technology
Yes
Intel 64
Yes
Idle States
Yes
Execute Disable Bit
Yes
Enhanced Intel SpeedStep Technology
Yes
Embedded options available
No
Memory types supported by processor
DDR4-SDRAM
System requirements
Windows operating systems supported
Windows 10-Windows 7-Windows 8
Server operating systems supported
Windows Server 2003-Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016
Mac operating systems supported
Mac OS X 10.10 Yosemite- Mac OS X 10.11 El Capitan- Mac OS X 10.12 Sierra- Mac OS X 10.13 High Sierra- Mac OS X 10.14 Mojave- Mac OS X 10.7 Lion- Mac OS X 10.8 Mountain Lion- Mac OS X 10.9 Mavericks
Linux operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
5 - 95%
Packaging data
Cables included
AC- LAN (RJ-45)
Other features
Processor ARK ID
129940
Digital Living Network Alliance (DLNA) certified
Yes
