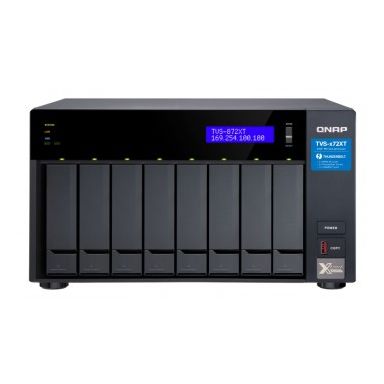

QNAP TVS-872XT-i5-16G 80TB 8x10TB Seagate Exos 8 Bay NAS Desktop Ethernet LAN Tower Black

Online RAID migration

Yes

Online RAID expansion

Yes

Bad block scan

Yes

Storage drives installed

Yes

Installed storage drive type

HDD

Supported storage drive types

HDD & SSD

Number of storage drives supported

8

Hot-swap drive bays

Yes

RAID support

Yes

Supported file systems

FAT32-HFS+-NTFS-ext3-ext4

RAID levels

0-1-5-6-10-50-60-JBOD

Supported storage drive interfaces

Serial ATA III

Storage drive sizes supported

2.5-3.5"

Number of M.2 (M & B) slots

2

RAID rebuild

Yes

Tjunction

100 °C

Thermal Design Power (TDP)

35 W

System bus rate

8 GT/s

Stepping

U0

Scalability

1S

Processor package size

37.5 x 37.5 mm

Processor operating modes

64-bit

Processor lithography

14 nm

Processor code

SR3X6

Processor cache type

Smart Cache

Processor cache

9 MB

Processor boost frequency

3.3 GHz

PCI Express slots version

3.0

PCI Express configurations

1x16-1x8+2x4-2x8

ECC supported by processor

No

CPU configuration (max)

1

Configurable TDP-down frequency

1.2 GHz

Bus type

DMI3

Maximum internal memory supported by processor

64 GB

Memory bandwidth supported by processor (max)

41.6 GB/s

Conflict-Free processor

Yes

Processor frequency

1.7 GHz

Internal memory type

DDR4

Internal memory

16 GB

Maximum RAM supported

32 GB

Memory slots

2

Flash memory

4000 MB

Ethernet LAN data rate supported (max)

10000 Mbit/s

Dynamic DNS (DDNS)

Yes

Ethernet LAN

Yes

Ethernet LAN data rates

10-100-1000-10000 Mbit/s

Wi-Fi

No

Wake-on-LAN ready

Yes

Supported network protocols

TCP/IP- IPv4- IPv6

Jumbo frames support

Yes

iSCSI support

Yes

DHCP server

Yes

DHCP client

Yes

WLAN adapter supported

Yes

USB port

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

Thunderbolt 3 ports quantity

2

PCI Express x4 (Gen 3.x) slots

1

3.5 mm (1/8-inch) out

Yes

Microphone in

Yes

HDMI ports quantity

1

Ethernet LAN (RJ-45) ports

3

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

2

RAID support

Yes

Supported file systems

FAT32-HFS+-NTFS-ext3-ext4

RAID levels

0-1-5-6-10-50-60-JBOD

On-board graphics adapter ID

0x3E92

On-board graphics adapter dynamic frequency (max)

1050 MHz

On-board graphics adapter base frequency

350 MHz

Maximum on-board graphics adapter memory

64 GB

Number of displays supported (on-board graphics)

3

Number of built-in speakers

1

Built-in speaker(s)

Yes

Fan diameter 2

6 cm

Cooling type

Active

Fan diameter

12 cm

Built-in display

Yes

Cable lock slot type

Kensington

Product colour

Black

Number of fans

4 fan(s)

LED indicators

HDD- LAN- USB

Chassis type

Tower

Cable lock slot

Yes

Type

NAS

Device class

Small & Medium Business

Backup function

Yes

Backup features

Cloud- iSCSI LUN

Built-in display

Yes

Product colour

Black

Multilingual support

Yes

LED indicators

HDD- LAN- USB

Chassis type

Tower

Buzzer

Yes

Number of fans

4 fan(s)

Built-in iTunes server

Yes

Built-in FTP server

Yes

System log

Yes

Share folder

CIFS/SMB

S.M.A.R.T. support

Yes

Hot spare

Yes

Browser supported

Apple Safari 7+- Google Chrome- Microsoft Internet Explorer 10+- Mozilla Firefox

Universal Plug and Play (UPnP)

Yes

Type

NAS

Device class

Small & Medium Business

Backup function

Yes

Backup features

Cloud- iSCSI LUN

On/off switch

Yes

Windows operating systems supported

Windows 10-Windows 7-Windows 8

Server operating systems supported

Windows Server 2003-Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016

Mac operating systems supported

Mac OS X 10.10 Yosemite- Mac OS X 10.11 El Capitan- Mac OS X 10.12 Sierra- Mac OS X 10.13 High Sierra- Mac OS X 10.14 Mojave- Mac OS X 10.7 Lion- Mac OS X 10.8 Mountain Lion- Mac OS X 10.9 Mavericks

Linux operating systems supported

Yes

Web-based management

Yes

Security algorithms

256-bit AES-FIPS 140-2-HTTPS-SNMPv3-SSH-SSL/TLS

Reset button

Yes

Operating system version

4.4.0

Multilingual support

Yes

Buzzer

Yes

Access Control List (ACL)

Yes

USB copy function

Yes

Cooling type

Active

Fan diameter

12 cm

Fan voltage

12 V

Number of fans

4 fan(s)

Cable lock slot type

Kensington

Security algorithms

256-bit AES-FIPS 140-2-HTTPS-SNMPv3-SSH-SSL/TLS

Cable lock slot

Yes

Access Control List (ACL)

Yes

Windows operating systems supported

Windows 10-Windows 7-Windows 8

Server operating systems supported

Windows Server 2003-Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016

Mac operating systems supported

Mac OS X 10.10 Yosemite- Mac OS X 10.11 El Capitan- Mac OS X 10.12 Sierra- Mac OS X 10.13 High Sierra- Mac OS X 10.14 Mojave- Mac OS X 10.7 Lion- Mac OS X 10.8 Mountain Lion- Mac OS X 10.9 Mavericks

Linux operating systems supported

Yes

Operating system version

4.4.0

On/off switch

Yes

Web-based management

Yes

Reset button

Yes

Power supply location

Built-in

Power supply unit (PSU) capacity

250 W

Fan voltage

12 V

AC input voltage

100 - 240 V

Number of power supply units

1

Width

329.3 mm

Depth

279.6 mm

Height

188.2 mm

Weight

7.06 kg

Quick installation guide

Yes

Cables included

AC- LAN (RJ-45)

Thermal solution specification

PCG 2015A

Thermal Monitoring Technologies

Yes

Maximum number of PCI Express lanes

16

Intel® Turbo Boost Technology

2.0

Intel® Secure Key

Yes

Intel® Quick Sync Video Technology

Yes

Intel® OS Guard

Yes

Intel® InTru™ 3D Technology

Yes

Intel® Identity Protection Technology (Intel® IPT)

Yes

Intel® Hyper Threading Technology (Intel® HT Technology)

No

Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)

Yes

Intel® Clear Video HD Technology (Intel® CVT HD)

Yes

Intel® AES New Instructions (Intel® AES-NI)

Yes

Intel VT-x with Extended Page Tables (EPT)

Yes

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Intel Virtualization Technology (VT-x)

Yes

Intel TSX-NI version

0.00

Intel TSX-NI

No

Intel Trusted Execution Technology

No

Intel Stable Image Platform Program (SIPP)

No

Intel Secure Key Technology version

1.00

Intel Identity Protection Technology version

1.00

Intel Enhanced Halt State

Yes

Intel Clear Video Technology

Yes

Intel 64

Yes

Idle States

Yes

Execute Disable Bit

Yes

Enhanced Intel SpeedStep Technology

Yes

Embedded options available

No

Memory channels supported by processor

Dual

Memory types supported by processor

DDR4-SDRAM

Windows operating systems supported

Windows 10-Windows 7-Windows 8

Server operating systems supported

Windows Server 2003-Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016

Mac operating systems supported

Mac OS X 10.10 Yosemite- Mac OS X 10.11 El Capitan- Mac OS X 10.12 Sierra- Mac OS X 10.13 High Sierra- Mac OS X 10.14 Mojave- Mac OS X 10.7 Lion- Mac OS X 10.8 Mountain Lion- Mac OS X 10.9 Mavericks

Linux operating systems supported

Yes

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

5 - 95%

Cables included

AC- LAN (RJ-45)

Digital Living Network Alliance (DLNA) certified

Yes
