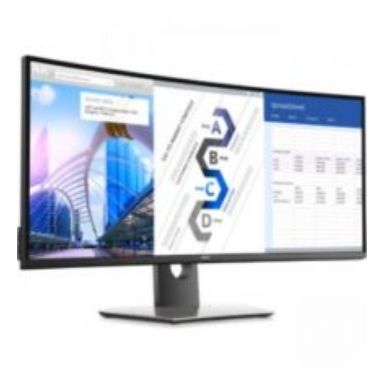

DELL UltraSharp U3417W LED display 34.14" 3440 x 1440 pixels UltraWide Quad HD LCD Black
In Stock
|
Call For Price
(0808 189 1246)
Display
Display
LED
Display brightness (typical)
300 cd/m²
Screen shape
Curved
Display number of colours
1.073 billion colors
Native aspect ratio
0.88125
Pixel density
109 ppi
Maximum refresh rate
60 Hz
Display surface
Matt
HD type
UltraWide Quad HD
Display technology
LCD
Contrast ratio (typical)
41.667361111111
Contrast ratio (dynamic)
5000000:1
Viewing angle horizontal
178°
Viewing angle vertical
178°
Pixel pitch
0.00917 x 0.00917" (0.233 x 0.233 mm)
Horizontal scan range
30 - 134 kHz
Vertical scan range
48 - 76 Hz
Aspect ratio
0.88125
Viewable size horizontal
31.5" (80 cm)
Viewable size vertical
13.2" (33.5 cm)
Viewable size diagonal
34.1" (86.7 cm)
3D
No
Supported graphics resolutions
3440 x 1440
Backlight type
Edge LED
Display resolution
3440 x 1440 pixels
Response time
8 ms
Display diagonal
34.14"
SmartResponse
5 ms
Panel type
IPS
RGB colour space
sRGB
Audio
Built-in speaker(s)
Yes
RMS rated power
18 W
Performance
Dell E-Value Code
U3417W
Built-in speaker(s)
Yes
RMS rated power
18 W
Built-in camera
No
AMD FreeSync
No
NVIDIA G-SYNC
No
Camera
Built-in camera
No
TV tuner
TV tuner integrated
No
Technical details
Height (without stand)
14.3" (36.4 cm)
Depth (without stand)
2.3" (5.84 cm)
Width (without stand)
32" (81.4 cm)
Cable lock slot
Yes
On/off switch
Yes
HDMI
Yes
Product colour
Black
SmartResponse
5 ms
Quantity per pallet
10 pc(s)
Number of layers per pallet
2
Number of cartons per pallet
10
Master (outer) case width
9.96" (25.3 cm)
Master (outer) case height
19.2" (48.7 cm)
Weight (with stand)
22 lbs (10 kg)
Master (outer) case weight
34 lbs (15.4 kg)
Indication
LED indicators
Yes
Multimedia
Number of speakers
2
Built-in speaker(s)
Yes
RMS rated power
18 W
TV tuner integrated
No
Built-in camera
No
Design
Market positioning
Business
Dell E-Value Code
U3417W
Certification
RoHS BFR/PVC Free
Product colour
Black
Ports & interfaces
Built-in USB hub
Yes
USB hub version
3.2 Gen 1 (3.1 Gen 1)
Number of upstream ports
2
USB Type-A downstream ports quantity
4
USB version
3.2 Gen 1 (3.1 Gen 1)
Headphone out
No
DVI port
No
HDMI ports quantity
2
Mini DisplayPorts quantity
1
DisplayPorts quantity
2
Audio input
No
Audio output
Yes
PC Audio out
Yes
HDMI
Yes
AC (power) in
Yes
HDMI version
2
DisplayPort version
1.2
Ergonomics
VESA mounting
Yes
Cable lock slot
Yes
Panel mounting interface
100 x 100 mm
LED indicators
Yes
Swivelling
Yes
Swivel angle range
-30 - 30°
Tilt angle range
-5 - 21°
Height adjustment
4.53" (11.5 cm)
On/off switch
Yes
Height adjustment
Yes
Tiltable
Yes
Thin Client
Thin client installed
No
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
130 W
Power consumption (standby)
0.5 W
Power consumption (typical)
50 W
Annual energy consumption
63 kWh
Energy efficiency class
A
Power consumption (off)
0.5 W
Input current
1.5 A
Energy efficiency scale
A++ to E
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
10 - 80%
Storage relative humidity (H-H)
5 - 90%
Operating altitude
0 - 196850.4" (0 - 5000 m)
Non-operating altitude
0 - 479960.6" (0 - 12191 m)
Weight & dimensions
Height (without stand)
14.3" (36.4 cm)
Depth (without stand)
2.3" (5.84 cm)
Width (without stand)
32" (81.4 cm)
Width (with stand)
32" (813.6 mm)
Depth (with stand)
8.91" (226.3 mm)
Height (with stand)
20.9" (531.9 mm)
Package width
9.96" (253 mm)
Package depth
37.9" (962.9 mm)
Package height
19.2" (486.9 mm)
Package weight
34 lbs (15.4 kg)
Weight (with stand)
22 lbs (10 kg)
Weight (without stand)
17 lbs (7.7 kg)
Packaging data
Stand included
Yes
Package width
9.96" (253 mm)
Package depth
37.9" (962.9 mm)
Package height
19.2" (486.9 mm)
Package weight
34 lbs (15.4 kg)
Quick start guide
Yes
Recycling data
Corrugated cardboard content per package
8.99 lbs (4.08 kg)
Expanded polyethylene (EPE) foam content per package
2.82 oz (80 g)
Low-density polyethylene (LDPE) content per package
2.82 oz (80 g)
Paper molded pulp content per package
2.73 lbs (1.24 kg)
Polyethylene terephthalate (PET) content per package
1.87 oz (53 g)
Polyethylene (PE) content per bag
1.89 oz (53.5 g)
Logistics data
Quantity per pallet
10 pc(s)
Number of layers per pallet
2
Number of cartons per pallet
10
Master (outer) case width
9.96" (25.3 cm)
Master (outer) case height
19.2" (48.7 cm)
Master (outer) case weight
34 lbs (15.4 kg)
Pallet width
40" (101.6 cm)
Pallet length
48" (121.9 cm)
Pallet height
43.1" (109.4 cm)
Pallet weight
383.6 lbs (174 kg)
Quantity per pallet layer
5 pc(s)
Master (outer) case length
37.9" (96.3 cm)
Quantity per master (outer) case
1 pc(s)
Other features
Dell E-Value Code
U3417W
Height (without stand)
14.3" (36.4 cm)
Depth (without stand)
2.3" (5.84 cm)
Width (without stand)
32" (81.4 cm)
Display
LED
Power consumption (max)
130 W
Quick start guide
Yes
On/off switch
Yes
HDMI
Yes
TV tuner integrated
No
Energy efficiency scale
A++ to E
SmartResponse
5 ms
Quantity per pallet
10 pc(s)
Number of layers per pallet
2
Number of cartons per pallet
10
Master (outer) case width
9.96" (25.3 cm)
Master (outer) case height
19.2" (48.7 cm)
Certificates
Certification
RoHS BFR/PVC Free
Packaging content
Stand included
Yes
Quick start guide
Yes
DELL UltraSharp U3417W LED display 34.14" 3440 x 1440 pixels UltraWide Quad HD LCD Black
| Length | 5.84 cm |
| Width | 81.40 cm |
| Height | 36.40 cm |
| Weight | 9.980000 kgs |
