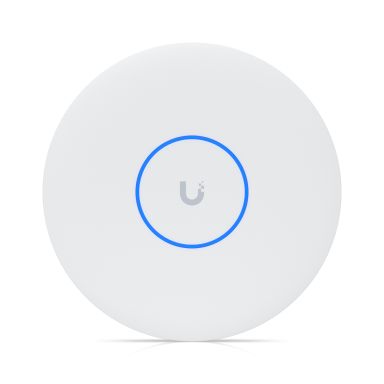

Ubiquiti U7-Pro-XG Access Point

Ethernet LAN data rates

1000,2500,5000,10000 Mbit/s

Maximum data transfer rate

5800 Mbit/s

2.4 GHz

Yes

5 GHz

Yes

Reset button

Yes

Frequency band

2.4, 5, 6 GHz

Number of users

300 user(s)

VLAN support

Yes

Rate limiting

Yes

Networking standards

IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v

Ethernet LAN data rates

1000,2500,5000,10000 Mbit/s

Maximum data transfer rate

5800 Mbit/s

MIMO type

Multi User MIMO

MIMO

Yes

Band steering

Yes

Frequency band

2.4, 5, 6 GHz

Number of users

300 user(s)

Networking standards

IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v

VLAN support

Yes

Rate limiting

Yes

Access point management

Wi-Fi schedule

6 GHz

Yes

2.4 GHz

Yes

5 GHz

Yes

Frequency band

2.4, 5, 6 GHz

Number of users

300 user(s)

VLAN support

Yes

Rate limiting

Yes

Networking standards

IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v

Ethernet LAN data rates

1000,2500,5000,10000 Mbit/s

Maximum data transfer rate

5800 Mbit/s

Fast roaming

Yes

MIMO type

Multi User MIMO

MIMO

Yes

Band steering

Yes

Maximum data transfer rate (2.4 GHz)

688 Mbit/s

Maximum data transfer rate (5 GHz)

4300 Mbit/s

Fit AP mode features

Hotspot 2.0

Maximum data transfer rate (6 GHz)

5800 Mbit/s

Spatial streams

6

Coverage area

Wireless meshing

Yes

Maximum Tx power (2.4 GHz)

23 dBmW

Maximum Tx power (5 GHz)

26 dBmW

Maximum Tx power (6 GHz)

24 dBmW

Security algorithms

PPSK

Ethernet LAN (RJ-45) ports

1

Power consumption (max)

22 W

Power over Ethernet (PoE)

Yes

Power over Ethernet (PoE) type supported

PoE+

Housing material

Metal, Polycarbonate (PC)

Placement

Ceiling, Wall

Product colour

White

Reset button

Yes

LED indicators

Status

Antenna type

Internal

Antenna gain level (max)

6 dBi

Reset button

Yes

Compliance certificates

CE, Federal Communications Commission (FCC), Industry Canada (IC)

Compliance certificates

CE, Federal Communications Commission (FCC), Industry Canada (IC)

LED indicators

Status

Fast roaming

Yes

Width

206 mm

Depth

32.5 mm

Weight

750 g

Height

206 mm

Mounting kit

Yes

Mounting kit

Yes

Quantity per pack

1 pc(s)

Operating relative humidity (H-H)

5 - 95%

Operating temperature (T-T)

Quantity per pack

1 pc(s)
