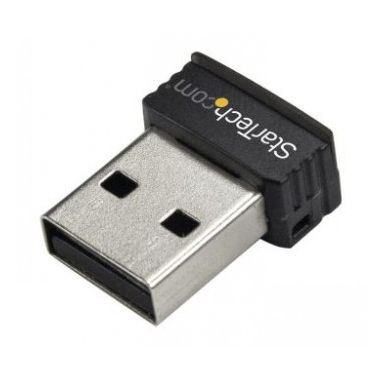

StarTech.com USB 150Mbps Mini Wireless N Network Adapter - 802.11n/g 1T1R

Internal

No

USB version

2.0

Interface

WLAN

Host interface

USB

Connectivity technology

Wireless

Full duplex

Yes

Maximum data transfer rate

150 Mbit/s

Wi-Fi band

Single-band (2.4 GHz)

Top Wi-Fi standard

Wi-Fi 4 (802.11n)

Wi-Fi standards

802.11b-802.11g-Wi-Fi 4 (802.11n)

Wi-Fi

Yes

Maximum indoor range

100 m

Maximum outdoor range

300 m

WLAN data transfer rates supported

11-54-150 Mbit/s

Chipset

Realtek - RTL8188EUS

Wi-Fi band

Single-band (2.4 GHz)

Top Wi-Fi standard

Wi-Fi 4 (802.11n)

Wi-Fi standards

802.11b-802.11g-Wi-Fi 4 (802.11n)

Wi-Fi

Yes

Security algorithms

128-bit WEP-64-bit WEP-TKIP-WPA-WPA-AES-WPA2

Networking standards

IEEE 802.11b-IEEE 802.11g-IEEE 802.11n

Maximum indoor range

100 m

Maximum outdoor range

300 m

WLAN data transfer rates supported

11-54-150 Mbit/s

Maximum operating distance

300 m

Full duplex

Yes

Maximum data transfer rate

150 Mbit/s

Product colour

Black

Plug and Play

Yes

Mean time between failures (MTBF)

44000 h

Sustainability certificates

RoHS

Windows operating systems supported

Windows 10-Windows 10 Education-Windows 10 Education x64-Windows 10 Enterprise-Windows 10 Enterprise x64-Windows 10 Home-Windows 10 Home x64-Windows 10 IOT Core-Windows 10 Pro-Windows 10 Pro x64-Windows 10 x64-Windows 7-Windows 7 Enterprise-Windows 7 Enterprise x64-Windows 7 Home Basic-Windows 7 Home Basic x64-Windows 7 Home Premium-Windows 7 Home Premium x64-Windows 7 Professional-Windows 7 Professional x64-Windows 7 Starter-Windows 7 Starter x64-Windows 7 Ultimate-Windows 7 Ultimate x64-Windows 7 x64-Windows 8-Windows 8 Enterprise-Windows 8 Enterprise x64-Windows 8 Pro-Windows 8 Pro x64-Windows 8 x64-Windows 8.1-Windows 8.1 Enterprise-Windows 8.1 Enterprise x64-Windows 8.1 Pro-Windows 8.1 Pro x64-Windows 8.1 x64-Windows Vista Business-Windows Vista Business x64-Windows Vista Enterprise-Windows Vista Enterprise x64-Windows Vista Home Basic-Windows Vista Home Basic x64-Windows Vista Home Premium-Windows Vista Home Premium x64-Windows Vista Ultimate-Windows Vista Ultimate x64-Windows Vista x64-Windows XP-Windows XP Home-Windows XP Home x64-Windows XP Professional-Windows XP Professional x64

Mac operating systems supported

Mac OS X 10.10 Yosemite- Mac OS X 10.11 El Capitan- Mac OS X 10.12 Sierra- Mac OS X 10.13 High Sierra- Mac OS X 10.14 Mojave- Mac OS X 10.5 Leopard- Mac OS X 10.6 Snow Leopard- Mac OS X 10.7 Lion- Mac OS X 10.8 Mountain Lion- Mac OS X 10.9 Mavericks

Linux operating systems supported

Yes

Security algorithms

128-bit WEP-64-bit WEP-TKIP-WPA-WPA-AES-WPA2

Server operating systems supported

Windows Server 2003-Windows Server 2008 R2-Windows Server 2012-Windows Server 2016-Windows Server 2019

Security algorithms

128-bit WEP-64-bit WEP-TKIP-WPA-WPA-AES-WPA2

Plug and Play

Yes

Windows operating systems supported

Windows 10-Windows 10 Education-Windows 10 Education x64-Windows 10 Enterprise-Windows 10 Enterprise x64-Windows 10 Home-Windows 10 Home x64-Windows 10 IOT Core-Windows 10 Pro-Windows 10 Pro x64-Windows 10 x64-Windows 7-Windows 7 Enterprise-Windows 7 Enterprise x64-Windows 7 Home Basic-Windows 7 Home Basic x64-Windows 7 Home Premium-Windows 7 Home Premium x64-Windows 7 Professional-Windows 7 Professional x64-Windows 7 Starter-Windows 7 Starter x64-Windows 7 Ultimate-Windows 7 Ultimate x64-Windows 7 x64-Windows 8-Windows 8 Enterprise-Windows 8 Enterprise x64-Windows 8 Pro-Windows 8 Pro x64-Windows 8 x64-Windows 8.1-Windows 8.1 Enterprise-Windows 8.1 Enterprise x64-Windows 8.1 Pro-Windows 8.1 Pro x64-Windows 8.1 x64-Windows Vista Business-Windows Vista Business x64-Windows Vista Enterprise-Windows Vista Enterprise x64-Windows Vista Home Basic-Windows Vista Home Basic x64-Windows Vista Home Premium-Windows Vista Home Premium x64-Windows Vista Ultimate-Windows Vista Ultimate x64-Windows Vista x64-Windows XP-Windows XP Home-Windows XP Home x64-Windows XP Professional-Windows XP Professional x64

Mac operating systems supported

Mac OS X 10.10 Yosemite- Mac OS X 10.11 El Capitan- Mac OS X 10.12 Sierra- Mac OS X 10.13 High Sierra- Mac OS X 10.14 Mojave- Mac OS X 10.5 Leopard- Mac OS X 10.6 Snow Leopard- Mac OS X 10.7 Lion- Mac OS X 10.8 Mountain Lion- Mac OS X 10.9 Mavericks

Linux operating systems supported

Yes

Mean time between failures (MTBF)

44000 h

Housing material

Plastic

Product colour

Black

Chipset

Realtek - RTL8188EUS

Certification

CE- FCC- REACH

Plug and Play

Yes

Internal

No

Mean time between failures (MTBF)

44000 h

Component for

PC/notebook

Output voltage

5 V

USB powered

Yes

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 75 °C

Operating relative humidity (H-H)

10 - 90%

Manual

Yes

Drivers included

Yes

Server operating systems supported

Windows Server 2003-Windows Server 2008 R2-Windows Server 2012-Windows Server 2016-Windows Server 2019

Windows operating systems supported

Windows 10-Windows 10 Education-Windows 10 Education x64-Windows 10 Enterprise-Windows 10 Enterprise x64-Windows 10 Home-Windows 10 Home x64-Windows 10 IOT Core-Windows 10 Pro-Windows 10 Pro x64-Windows 10 x64-Windows 7-Windows 7 Enterprise-Windows 7 Enterprise x64-Windows 7 Home Basic-Windows 7 Home Basic x64-Windows 7 Home Premium-Windows 7 Home Premium x64-Windows 7 Professional-Windows 7 Professional x64-Windows 7 Starter-Windows 7 Starter x64-Windows 7 Ultimate-Windows 7 Ultimate x64-Windows 7 x64-Windows 8-Windows 8 Enterprise-Windows 8 Enterprise x64-Windows 8 Pro-Windows 8 Pro x64-Windows 8 x64-Windows 8.1-Windows 8.1 Enterprise-Windows 8.1 Enterprise x64-Windows 8.1 Pro-Windows 8.1 Pro x64-Windows 8.1 x64-Windows Vista Business-Windows Vista Business x64-Windows Vista Enterprise-Windows Vista Enterprise x64-Windows Vista Home Basic-Windows Vista Home Basic x64-Windows Vista Home Premium-Windows Vista Home Premium x64-Windows Vista Ultimate-Windows Vista Ultimate x64-Windows Vista x64-Windows XP-Windows XP Home-Windows XP Home x64-Windows XP Professional-Windows XP Professional x64

Mac operating systems supported

Mac OS X 10.10 Yosemite- Mac OS X 10.11 El Capitan- Mac OS X 10.12 Sierra- Mac OS X 10.13 High Sierra- Mac OS X 10.14 Mojave- Mac OS X 10.5 Leopard- Mac OS X 10.6 Snow Leopard- Mac OS X 10.7 Lion- Mac OS X 10.8 Mountain Lion- Mac OS X 10.9 Mavericks

Linux operating systems supported

Yes

Package width

111 mm

Package depth

172 mm

Package height

14 mm

Package weight

42 g

Width

15 mm

Depth

19 mm

Height

8 mm

Drivers included

Yes

Package width

111 mm

Package depth

172 mm

Package height

14 mm

Package weight

42 g

Manual

Yes

Certification

CE- FCC- REACH

Housing material

Plastic

Chipset

Realtek - RTL8188EUS

Manual

Yes
