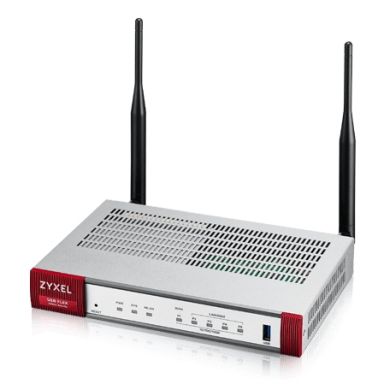

Zyxel USG FLEX 100AX hardware firewall 0.9 Gbit/s

IPS/IDS throughput

540 Mbit/s

Firewall throughput

0.9 Gbit/s

VPN throughput

0.27 Gbit/s

Firewall throughput

900 Mbit/s

VPN throughput

270 Mbit/s

Antennas quantity

2

Antenna gain level (max)

3 dBi

Heat dissipation

55.37 BTU/h

Antenna design

External

Detachable antenna(s)

Yes

Wi-Fi

Yes

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Number of VLANs

8

Wi-Fi band

Dual-band (2.4 GHz / 5 GHz)

VPN support

IKEv2, IPSec, SSL, L2TP/IPSec

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

Connectivity technology

Wireless

WAN connection

Ethernet (RJ-45)

Ethernet LAN (RJ-45) ports

4

Input current

2.5 A

Power consumption (max)

24.3 W

DC input voltage

12 V

Compliance certificates

BSMI, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD)

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

10 - 90%

Weight

1 kg

Width

216 mm

Depth

149.3 mm

Height

33 mm

Package width

284 mm

Package height

190 mm

Package depth

100 mm

Package weight

1.53 kg

Cables included

Power

Heat dissipation

55.37 BTU/h

Compliance certificates

BSMI, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD)

Antennas quantity

2

Antenna gain level (max)

3 dBi

Firewall throughput

900 Mbit/s

VPN throughput

270 Mbit/s
