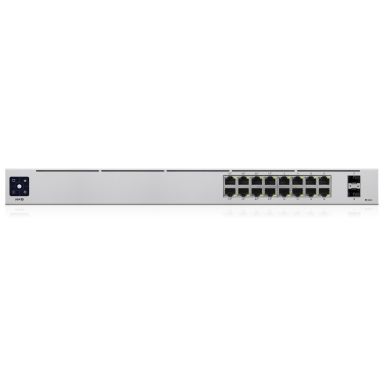

Ubiquiti UniFi 16-Port PoE Switch (USW-16-POE)
In Stock
|
$283.97
$340.76 (Inc. VAT)
Virtual LAN features
VLAN support
Yes
Technical details
Form factor
1U
Product colour
Silver
Rack mounting
Yes
Management features
Switch type
Managed
Switch layer
L2/L3
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
2
Network
Auto-sensing
Yes
Networking standards
IEEE 802.3afIEEE 802.3at
Full duplex
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Port mirroring
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
Data transmission
Throughput
18000 Mpps
Switching capacity
36 Gbit/s
Jumbo frames support
Yes
Static route
Yes
Forwarding rate
26.78 Mpps
Security
Authentication type
IEEE 802.1xRADIUS
Certificates
Certification
CE FCC IC
Design
Form factor
1U
Product colour
Silver
LED indicators
ActivityLinkPoESpeedSystem
Certification
CE FCC IC
Rack mounting
Yes
Indication
LED indicators
ActivityLinkPoESpeedSystem
Power
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
DC input voltage
44 - 57 V
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
32 W
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
48 W
Power over Ethernet (PoE)
Yes
Operational conditions
Operating temperature (T-T)
-5 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
17.4" (442.4 mm)
Depth
7.87" (200 mm)
Height
1.72" (43.7 mm)
Weight
6.17 lbs (2.8 kg)
Ubiquiti UniFi 16-Port PoE Switch (USW-16-POE)
| Length | 20.00 cm |
| Width | 44.24 cm |
| Height | 4.37 cm |
| Weight | 2.800000 kgs |
