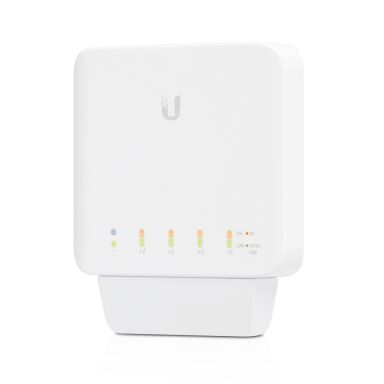

Ubiquiti Networks USW-Flex UniFi Managed L2 Power over Ethernet (PoE)

Ubiquiti Networks USW-Flex UniFi Managed L2 Power over Ethernet (PoE)

Suitable for providing versatile switching performance for computers, access points, NAS enclosures, and other wired network devices. Flexible 5-port, Layer 2 PoE switch for indoor and outdoor use, that can be powered with PoE++.

Ubiquiti USW-Flex Specifications:

• Up to 46W PoE budget

• 4 GbE PoE+ out LAN/WAN RJ45 Ports

• 1 GbE PoE++ in RJ45 port

• Compact desktop, wall, and pole mount

• 16 Gbps switching capacity with 7 Mpps forward rate

• Layer 2 features

• Outdoor ready

Here is an in-depth description of Ubiquiti USW-Flex UK.

Port Density:

The UniFi Flex switch UK is provided with 4 GbE PoE+ out LAN/WAN RJ45 Ports for high bandwidth applications. This makes this managed network switch a perfect network switch for homes, businesses, small offices, remote locations, challenging environments, industrial use, outdoor Wi-Fi, and a perfect network switch for security cameras.

Switching Performance:

This managed switch is capable of delivering 10 Gbps switching capacity, 5 Gbps total Non-Blocking Throughput, and it can support up to 7 Mpps forwarding rate. What’s more, it can support 1000 VLANs, and it comes with a 2000 MAC Address Table Size.

Power over Ethernet or PoE:

This is a managed L2 PoE switch that supports Power over Ethernet with up to 46W PoE budget, with 4 ports featuring PoE+ and one PoE++ capability. Each PoE+ port can support up to 25W output, allowing users to power access points, IP cameras, switches, VoIP phones, and the like.

Layer 2 Features:

This is a UniFi Flex for home networking that comes with Layer 2 switching capabilities. For instance:

• Egress Rate Limit

• Flow Control

• Port Isolation

• Port Mirroring

• Jumbo Frames

UniFi Network Application:

This compact PoE switch that is suitable for home networking and surveillance cameras is compatible with the UniFi Network App with version 5.10.3 and later. You can thus configure, deploy, control, manage, and troubleshoot this switch with ease and confidence.
