Ubiquiti Networks UniFi USW-PRO-24 network switch Managed L2/L3 Gigabit Ethernet

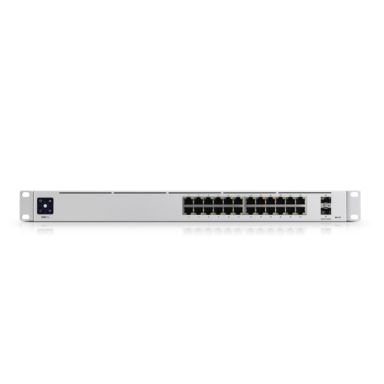

Ubiquiti Networks UniFi USW-PRO-24 L2/L3 Gigabit Managed Network Switch

Designed for enterprise and advanced home networks, Ubiquiti USW-PRO-24 UK is a 24-port, Layer 3 switch supporting 10G SFP+ connections with fanless cooling.

Key Ubiquiti USW-PRO-24 Specifications:

• 24 GbE RJ45 ports plus 2 10G SFP+ ports

• 1.3" touchscreen with AR Management

• 88 Gbps switching capacity with 65 Mbps forwarding rate.

• Layer 3 features

• Quiet, Fanless Design

• Supports UniFi Network Controller

Here is an in-depth description of the key features of the 24-port managed Gigabit switch UK.

Professional-Grade Port Configuration:

Ubiquiti USW-PRO-24 is a professional-grade managed switch, featuring 24 RJ45 ports. In addition, there are also 2 10G SFP+ ports for fiber uplinks. You can thus provide gigabit Ethernet connections to IP cameras, access points, and other networking devices in your network. This makes this Ubiquiti Managed switch suitable for 6 GHz WiFi access points.

Up to 10 Gbps uplink speed makes the enterprise PoE switch a perfect network switch for data centers, enterprise, high-speed networks, network upgrades, and high bandwidth.

Switching Performance:

The UniFi managed switch 24-port is capable of delivering 88 Gbps switching capacity with a 65 Mbps forwarding rate. It supports 44 Gbps total Non-Blocking Throughput. What’s more, it can support 1000 VLANs and comes with a 1600 MAC Address Table Size.

Managed Switch with Touchscreen Display:

It is a managed switch that is equipped with a 1.3" touchscreen with AR switch management, helping network administrators access various vital stats regarding the health of the network for quick diagnosis and troubleshooting.

On top of that, it comes with support for UniFi Network App with version 5.12.11 and later. You can configure, deploy, control, monitor, and troubleshoot this network switch from anywhere and at any time.

L2/L3 Gigabit PoE switch:

It is a layer 3 managed switch, offering cutting-edge layer 3 features such as a DHCP server, a DHCP relay, inter-VLAN routing, and static routing.

In addition, Layer 2 switching features have also been incorporated, including:

• LACP Port Aggregation

• STP & RSTP

• QoS (DSCP)

• Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)

• Advanced IGMP Configuration (Querier, Fast Leave, Router Port)

• IGMP Snooping

• 802.1X Control

• MAC-Based ACLs & Device Isolation

• DHCP Snooping & Guarding

• Egress Rate Limit

• Flow Control

• Storm Control

• Multicast & Broadcast Rate Limiting

• MAC Address Blocking

• IP-Based ACLs & Network Isolation

• MAC-Based Port Restriction

• Port Isolation

• Port Mirroring

• Jumbo Frames

• LLDP-MED

• Voice VLAN

• Loop Protection
