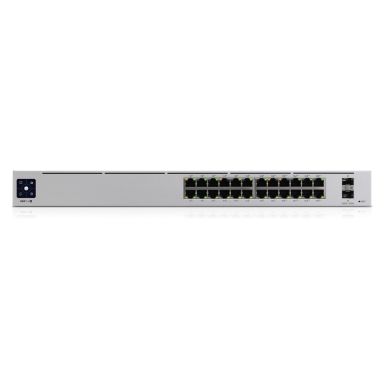

Ubiquiti Networks UniFi Pro 24-Port PoE L2/L3 Gigabit Managed Power over Ethernet Switch

Ubiquiti Networks UniFi Pro 24-Port PoE L2/L3 Gigabit Managed Power over Ethernet Switch

Designed for high-performance enterprise environments, Ubiquiti USW-Pro-24-POE in the UK, A 24-port, Layer 3 switch capable of high-power PoE++ output, featuring 24 Gigabit Ethernet ports and 2 high-speed 10G SFP+ uplink ports, and more.

Key USW-Pro-24-POE Specifications:

• 24 RJ45 ports including 16 GbE PoE+ ports, 8 GbE PoE++ ports

• 2 10G SFP+ ports

• 1.3" touchscreen with AR switch management

• 400W PoE output

• Layer 3 switching

• 88 Gbps switching capacity with 65 Mbps forwarding rate.

Here is a detailed description of the UniFi 24-port managed switch UK.

Port Density for Professional-Grade Network:

24-port PoE+ switch is a professional-grade managed switch, featuring 22 24 RJ45 ports including 16 GbE PoE+ ports, 8 GbE PoE++ ports. In addition, there are also 4 10G SFP+ ports for fiber uplinks. You can thus provide gigabit Ethernet connections to IP cameras, access points, and other networking devices in your network. This makes this Ubiquiti Managed switch suitable for 6 GHz WiFi access points.

Up to 10 Gbps uplink speed makes the enterprise PoE switch a perfect network switch for data centers, enterprises, high-speed networks, network upgrades, and high bandwidth.

UniFi PoE+ Managed Switch:

This is a PoE++-managed switch of Ubiquiti that is provided with PoE++ ports with a 400W PoE++ budget. It is provided with 16 PoE+ ports, each supporting up to 30W output, whereas, remaining 8 are PoE++ ports, each delivering 64W output.

You can thus power your downstream IP cameras, access points, and hubs, allowing you to save costs and space as you would be able to transmit data and power through one network cable.

Switching Performance:

The UniFi managed switch 24-port is capable of delivering 88 Gbps switching capacity with a 65 Mbps forwarding rate. It supports 44 Gbps total Non-Blocking Throughput. What’s more, it can support 1000 VLANs and comes with a 1600 MAC Address Table Size.

L2/L3 Gigabit PoE switch:

It is a layer 3 managed switch, offering cutting-edge layer 3 features such as a DHCP server, a DHCP relay, inter-VLAN routing, and static routing.

In addition, Layer 2 switching features have also been incorporated, including:

• LACP Port Aggregation

• STP & RSTP

• QoS (DSCP)

• Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)

• Advanced IGMP Configuration (Querier, Fast Leave, Router Port)

• IGMP Snooping

• 802.1X Control

• MAC-Based ACLs & Device Isolation

• DHCP Snooping & Guarding

• Egress Rate Limit

• Flow Control

• Storm Control

• Multicast & Broadcast Rate Limiting

• MAC Address Blocking

• IP-Based ACLs & Network Isolation

• MAC-Based Port Restriction

• Port Isolation

• Port Mirroring

• Jumbo Frames

• LLDP-MED

• Voice VLAN

• Loop Protection

Managed Switch with Touchscreen Display:

It is a managed switch that is equipped with a 1.3" touchscreen with AR switch management, helping network administrators access various vital stats regarding the health of the network for quick diagnosis and troubleshooting.

On top of that, it comes with support for UniFi Network App with version 5.10.5 and later. You can configure, deploy, control, monitor, and troubleshoot this network switch from anywhere and at any time.
