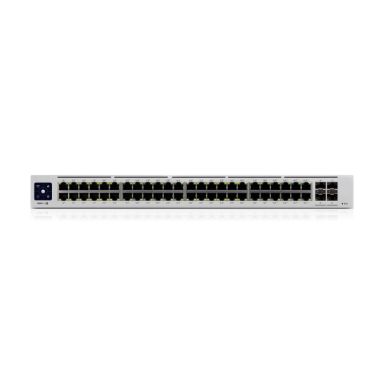

Ubiquiti Networks Networks UniFi Pro 48-Port PoE Managed L2/L3 Gigabit Ethernet 1U Power over Ethernet (PoE)
In Stock
|
Call For Price
(0808 189 1246)
Technical details
Form factor
1U
Product colour
Silver
Rack mounting
Yes
Management features
Switch type
Managed
Switch layer
L2/L3
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity
4
Network
Auto-sensing
Yes
Networking standards
IEEE 802.3af- IEEE 802.3at
Full duplex
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Port mirroring
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
Yes
Data transmission
Throughput
88000 Mpps
Switching capacity
176 Gbit/s
Jumbo frames support
Yes
Static route
Yes
Forwarding rate
130.944 Mpps
Security
Authentication type
IEEE 802.1x- RADIUS
DHCP features
DHCP server
Certificates
Certification
CE- FCC- IC
Design
Form factor
1U
Product colour
Silver
Certification
CE- FCC- IC
Rack mounting
Yes
Performance
Harmonized System (HS) code
85176990
Power
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Number of power supply units
1
Input current
11.54 A
DC input voltage
44 - 57 V
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
64 W
Power over Ethernet plus (PoE+) ports quantity
40
Total Power over Ethernet (PoE) budget
600 W
Power over Ethernet (PoE)
Yes
Operational conditions
Operating temperature (T-T)
-5 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
442.4 mm
Depth
399.6 mm
Height
43.7 mm
Weight
6.25 kg
Ubiquiti Networks Networks UniFi Pro 48-Port PoE Managed L2/L3 Gigabit Ethernet 1U Power over Ethernet (PoE)
| Length | 39.96 cm |
| Width | 44.24 cm |
| Height | 4.37 cm |
| Weight | 6.250000 kgs |
