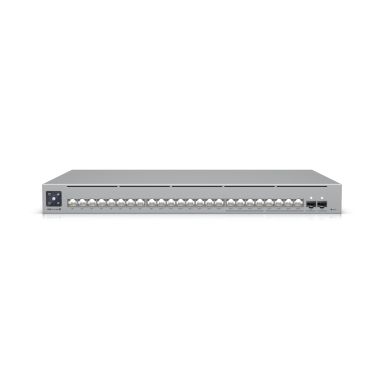

Ubiquiti USW-Pro-Max-24-PoE L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Grey

Ubiquiti USW-Pro-Max-24-PoE L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Grey

Recommended for modern enterprise, campus, and professional networking environments, UniFi Pro Max 24 PoE 2.5G switch UK is a 24-port, Layer 3 Etherlighting™ switch capable of high-power PoE++ output, making it suitable for powering high-bandwidth UniFi access points, cameras, and VoIP devices.

Key Features of Ubiquiti USW-Pro-Max-24-PoE UK:

• 24 High-speed Gigabit Ethernet ports plus 2 10G SFP+ ports

• 400W PoE output

• 112 Gbps switching capacity

• Layer 3 managed switch

• 1.3" touchscreen

• Etherlighting™

• Support UniFi Network

Here is the detailed breakdown of the USW-PRO-MAX-24-POE specifications UK.

Enterprise-Grade Port Density:

Ubiquiti 24-port Layer 3 PoE++ switch with 24 GbE RJ45 ports, including 16 1G RJ45 and 8 2.5G RJ45 ports for multigigabit LAN connectivity. In addition, there are also two additional 10 G SFP+ ports that can help you establish high-speed fiber uplinks for bandwidth-intensive applications.

This enterprise-grade port density makes the 10G SFP+ uplinks switch a perfect network switch for homes, enterprise-level offices, industrial network needs, outdoor WiFi needs, and IP security cameras.

Switching Performance:

The UniFi managed switch 24-port is capable of delivering 112 Gbps switching capacity with an 83 Mbps forwarding rate. It supports 56 Gbps total Non-Blocking Throughput. What’s more, it can support 1000 VLANs and comes with a 1600 MAC Address Table Size.

UniFi Switch with Etherlightning Ports:

This is a cutting-edge feature that has been introduced in the Professional Max network switch series of Ubiquiti. The Etherlighting ports are designed to illuminate, indicating port location, speed, link, and native VLAN/network.

It helps you identify native VLAN with a glance, differentiate ports by speed as they appear in different colors, and you can find any device in a second. You can thus ensure effective network and cable management to boost the productivity of your network infrastructure.

24-port Layer 3 PoE++ Switch:

This Gigabit Ethernet PoE switch is provided with 8 GbE PoE+ and 16 PoE++ ports, with each PoE+ providing 32W and PoE++ supporting 64W max PoE wattage per port. Overall, it can provide 400 W PoE output, allowing you to power your IP cameras, access points, VoIP, and other networking devices.

Rack-mountable 1U Layer 3 Switch:

It is a layer 3 managed switch, offering cutting-edge layer 3 features such as a DHCP server, a DHCP relay, inter-VLAN routing, and static routing.

In addition, Layer 2 switching features have also been incorporated, including:

• LACP Port Aggregation

• STP & RSTP

• QoS (DSCP)

• Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)

• Advanced IGMP Configuration (Querier, Fast Leave, Router Port)

• IGMP Snooping

• 802.1X Control

• MAC-Based ACLs & Device Isolation

• DHCP Snooping & Guarding

• Egress Rate Limit

• Flow Control

• Storm Control

• Multicast & Broadcast Rate Limiting

• MAC Address Blocking

• IP-Based ACLs & Network Isolation

• MAC-Based Port Restriction

• Port Isolation

• Port Mirroring

• Jumbo Frames

• LLDP-MED

• Voice VLAN

• Loop Protection
