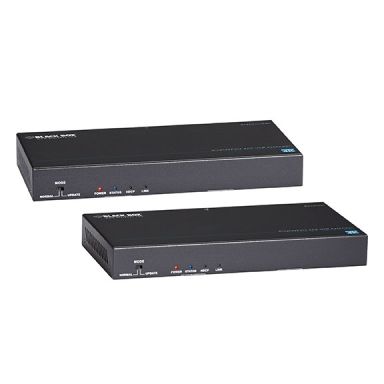

Black Box UVX-DP-TP-100M AV extender AV transmitter & receiver
In Stock
|
Call For Price
(0808 189 1246)
Features
HDCP
Yes
HDCP & EDID bypass
Yes
Electrostatic Discharge (ESD) protection
8 kV
Type
AV transmitter & receiver
Maximum resolution
3840 x 2160 pixels
Cable types supported
Cat5e, Cat6, Cat6a, Cat7
Maximum transfer distance
100 m
Supported video modes
1080p, 2160p
Supported graphics resolutions
1280 x 720 (HD 720), 1280 x 800 (WXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160
LED indicators
Link, Power, Status
Cable length
1.8 m
Bandwidth
10.2 Gbit/s
Product colour
Black
Technical details
HDCP
Yes
HDCP & EDID bypass
Yes
Electrostatic Discharge (ESD) protection
8 kV
Type
AV transmitter & receiver
Maximum resolution
3840 x 2160 pixels
Cable types supported
Cat5e, Cat6, Cat6a, Cat7
Maximum transfer distance
100 m
Supported video modes
1080p, 2160p
Supported graphics resolutions
1280 x 720 (HD 720), 1280 x 800 (WXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160
Cable length
1.8 m
Bandwidth
10.2 Gbit/s
Product colour
Black
Connector(s)
IEC320, C14
Ports & interfaces
HDBaseT port
Yes
USB ports quantity
3
USB version
2.0
USB connector type
USB Type-A, USB Type-B
Audio output
2
Audio input
2
DC-in jack
Yes
Power
Input current
1.5 A
Output current
2 A
AC input voltage
100-240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
14.2 W
Operating voltage
12 V
Indication
LED indicators
Link, Power, Status
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-20 - 70 °C
Operating temperature (T-T)
0 - 45 °C
Weight & dimensions
Receiver weight
500 g
Transmitter weight
500 g
Transmitter dimensions (WxDxH)
200.9 x 100.3 x 25.1 mm
Receiver dimensions (WxDxH)
200.9 x 100.3 x 25.1 mm
Packaging content
Mounting brackets included
Yes
AC adapter included
Yes
Manual
Yes
Black Box UVX-DP-TP-100M AV extender AV transmitter & receiver
