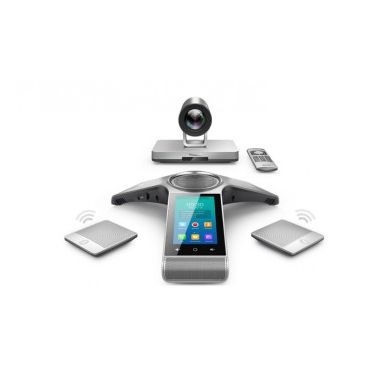

Yealink VC800 video conferencing system Ethernet LAN Group
In Stock
|
Call For Price
(0808 189 1246)
Technical details
Product type
Group video conferencing system
Tilt angle range
-30 - 30°
Pan range
-100 - 100°
Product colour
Black- Silver
PTZ control
Yes
Sustainability certificates
REACH- RoHS
Video
HD type
Full HD
Optical zoom
12x
Video formats supported
H.263-H.264-H.265
Video codecs
H.265- H.264 High Profile- H.264- H.263
Supported video modes
360p-480p-720p-1080p
Supported graphics resolutions
1920 x 1080 (HD 1080)
Maximum frame rate
60 fps
Picture-in-Picture
Yes
Call recording
Yes
Audio
Voice codecs
AJB-CNG-G.711-G.722.1-G.722.1C-PLC
Built-in speaker(s)
Yes
Audio formats supported
G.711
File formats
Video formats supported
H.263-H.264-H.265
Ports & interfaces
Line-out
Yes
USB connector type
USB Type-A
DC-in jack
Yes
USB 2.0 ports quantity
2
Line-in
Yes
HDMI ports quantity
2
Ethernet LAN (RJ-45) ports
1
Interface module
Interface module HDMI ports quantity
1
Interface module USB 2.0 ports quantity
1
Interface module RJ-45 ports quantity
2
Network
Ethernet LAN
Yes
Ethernet LAN data rates
10-100-1000 Mbit/s
Web-based management
Yes
Supported network protocols
IPv4- IPv6- 802.1p/q- VLAN- IEEE802.1X- LLDP-MED
Security algorithms
128-bit AES-SRTP-TTLS
Management protocols
HTTP/HTTPS
Data link protocols
H.323 / SIP
Camera
Horizontal field of view
70°
Display
Built-in display
Yes
Display diagonal
12.7 cm (5")
Display resolution
1280 x 720 pixels
Touchscreen
Yes
Microphone
Microphone mute
Yes
Security
Security algorithms
128-bit AES-SRTP-TTLS
Management features
Web-based management
Yes
Management protocols
HTTP/HTTPS
Features
Cable lock slot
Yes
Operational conditions
Storage temperature (T-T)
-30 - 70 °C
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 95%
Power
Power consumption (max)
21 W
DC input voltage
48 V
AC input voltage
100 - 240 V
Current
0.7 A
Power consumption (typical)
17 W
Certificates
Certification
CE- FCC- ISO 9001
Weight & dimensions
Camera dimensions (WxDxH)
235 x 172 x 169 mm
Packaging content
Number of microphones included
2
Mounting kit
Yes
External interface module included
Yes
Camera control unit included
Yes
User guide
Yes
Microphone included
Yes
Handheld remote control
Yes
Cables included
HDMI- LAN (RJ-45)- Micro-USB- Mini DisplayPort
HDMI cable length
1.8 m
