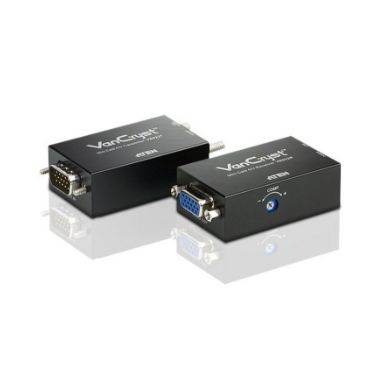

Aten VE022-AT-E AV extender AV transmitter & receiver Black
In Stock
|
Call For Price
(0808 189 1246)
Features
Impedance
75 Ω
Maximum refresh rate
60 Hz
Type
AV transmitter & receiver
Maximum resolution
1920 x 1200 pixels
Cable types supported
Cat5
Maximum transfer distance
150 m
Audio system
Mono
Supported graphics resolutions
1280 x 1024 (SXGA)-1600 x 1200 (UXGA)-1920 x 1200 (WUXGA)
Bandwidth
300 MHz
Product colour
Black
Technical details
Impedance
75 Ω
Maximum refresh rate
60 Hz
Type
AV transmitter & receiver
Maximum resolution
1920 x 1200 pixels
Cable types supported
Cat5
Maximum transfer distance
150 m
Audio system
Mono
Video out
1 x HDB-15
Video in
1 x HDB-15
Supported graphics resolutions
1280 x 1024 (SXGA)-1600 x 1200 (UXGA)-1920 x 1200 (WUXGA)
Bandwidth
300 MHz
Product colour
Black
Connectivity technology
Wired
Sustainability certificates
RoHS
Ports & interfaces
VGA (D-Sub) output ports
1
Video out
1 x HDB-15
Video in
1 x HDB-15
VGA (D-Sub) ports quantity
2
Audio output
1 x Mini Stereo
Audio input
1 x Mini Stereo
DC-in jack
Yes
Connectivity technology
Wired
Power
Power consumption (max)
0.88 W
Power consumption (transmitter) (max)
0.44 W
Power consumption (receiver) (max)
0.88 W
Operating voltage (transmitter)
5 V
Operating voltage (receiver)
5 V
Operating voltage
5 V
Operational conditions
Operating relative humidity (H-H)
0 - 80%
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 50 °C
Weight & dimensions
Receiver weight
50 g
Transmitter weight
50 g
Transmitter dimensions (WxDxH)
73.4 x 35.3 x 20.6 mm
Receiver dimensions (W x D x H)
64.2 x 35.3 x 20.6 mm
Packaging content
Mounting kit
Yes
Cables included
Audio (3.5mm)- DC- USB- VGA
AC adapter included
Yes
Manual
Yes
Aten VE022-AT-E AV extender AV transmitter & receiver Black
