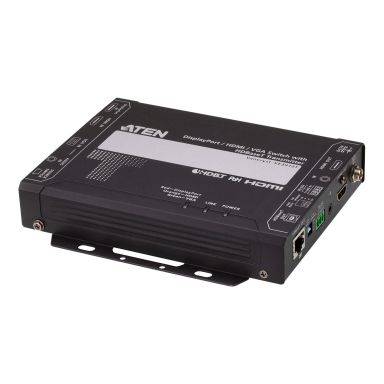

ATEN VE3912T AV extender AV transmitter Black
In Stock
|
Call For Price (0808 189 1246)
Features
Material
Metal
HDCP
Yes
Control type
Buttons
Consumer Electronics Control (CEC) support
Yes
Impedance
100 Ω
On/off switch
Yes
Power
8.77 W
Type
AV transmitter
Maximum resolution
4096 x 2160 pixels
Maximum transfer distance
100 m
Supported video modes
1080p, 2160p
Supported graphics resolutions
1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 4096 x 2160
Bandwidth
340 MHz
Bandwidth
10.2 Gbit/s
Product colour
Black
HDCP pass-through
Yes
HDCP version
2.2
Technical details
Material
Metal
HDCP
Yes
Control type
Buttons
Consumer Electronics Control (CEC) support
Yes
Impedance
100 Ω
AUX in
Yes
On/off switch
Yes
Power
8.77 W
Ethernet LAN
Yes
Type
AV transmitter
Maximum resolution
4096 x 2160 pixels
Maximum transfer distance
100 m
Video out
1 x HDMI Type A Female (Black)
Video in
1 x HDMI Type A Female (Black) 1 x HDB-15 (VGA) Female (Blue) 1 x DisplayPort Female (Black)
Supported video modes
1080p, 2160p
Supported graphics resolutions
1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 4096 x 2160
Bandwidth
340 MHz
Bandwidth
10.2 Gbit/s
Product colour
Black
Connectivity technology
Wired
Compliance certificates
RoHS
Ports & interfaces
DisplayPorts in
1
RS-232 output ports
1
AUX in
Yes
Ethernet LAN
Yes
RJ-45 input ports
1
VGA (D-Sub) input ports
1
HDMI in
1
Number of HDMI outputs
1
Video out
1 x HDMI Type A Female (Black)
Video in
1 x HDMI Type A Female (Black) 1 x HDB-15 (VGA) Female (Blue) 1 x DisplayPort Female (Black)
VGA (D-Sub) ports quantity
2
Audio input
1 x HDMI Type A Female (Black) 1 x Mini Stereo Jack Female (Green) 1 x DisplayPort Female (Black)
DC-in jack
Yes
Connectivity technology
Wired
Power
Power consumption (max)
8.77 W
External power adapter
Yes
Operational conditions
Operating relative humidity (H-H)
0 - 80%
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 40 °C
Weight & dimensions
Width
147 mm
Height
30 mm
Depth
173 mm
Weight
650 g
Packaging content
Mounting brackets included
Yes
Quick start guide
Yes
AC adapter included
Yes
ATEN VE3912T AV extender AV transmitter Black
| Length | 17.3 cm |
| Width | 14.7 cm |
| Height | 3 cm |
| Weight | 0.65 kgs |
