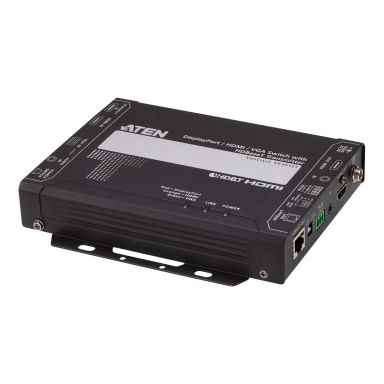

Aten Ve3912t-At-E Av Extender Av Transmitter

Material

Metal

HDCP

Yes

Control type

Buttons

Consumer Electronics Control (CEC) support

Yes

Impedance

100 Ω

On/off switch

Yes

Type

AV transmitter

Maximum resolution

4096 x 2160 pixels

Maximum transfer distance

100 m

Supported video modes

1080p-2160p

Supported graphics resolutions

1600 x 1200 (UXGA)-1920 x 1080 (HD 1080)-1920 x 1200 (WUXGA)-4096 x 2160

Bandwidth

340 MHz

Bandwidth

10.2 Gbit/s

Product colour

Black

HDCP version

2.2

Material

Metal

HDCP

Yes

Control type

Buttons

Consumer Electronics Control (CEC) support

Yes

Impedance

100 Ω

AUX in

Yes

On/off switch

Yes

Ethernet LAN

Yes

Type

AV transmitter

Maximum resolution

4096 x 2160 pixels

Maximum transfer distance

100 m

Video out

1 x HDMI Type A

Video in

1 x HDMI Type A

Supported video modes

1080p-2160p

Supported graphics resolutions

1600 x 1200 (UXGA)-1920 x 1080 (HD 1080)-1920 x 1200 (WUXGA)-4096 x 2160

Bandwidth

340 MHz

Bandwidth

10.2 Gbit/s

Product colour

Black

Connectivity technology

Wired

Quantity per pack

1 pc(s)

Sustainability certificates

RoHS

DisplayPorts in

1

RS-232 output ports

1

AUX in

Yes

Ethernet LAN

Yes

RJ-45 input ports

1

VGA (D-Sub) input ports

1

HDMI in

1

Number of HDMI outputs

1

Video out

1 x HDMI Type A

Video in

1 x HDMI Type A

VGA (D-Sub) ports quantity

2

Audio input

1 x HDMI Type A

DC-in jack

Yes

Connectivity technology

Wired

Power consumption (max)

8.77 W

External power adapter

Yes

Operating relative humidity (H-H)

0 - 80%

Storage temperature (T-T)

-20 - 60 °C

Operating temperature (T-T)

0 - 40 °C

Width

147 mm

Height

30 mm

Depth

173 mm

Weight

1.04 kg

Quantity per pack

1 pc(s)

Mounting brackets included

Yes

Quick start guide

Yes

AC adapter included

Yes
