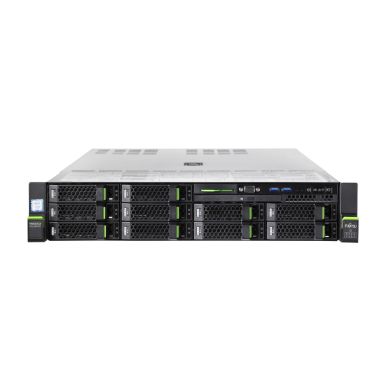

Fujitsu PRIMERGY RX2540 M5 server Rack (2U) Intel Xeon Silver 2.1 GHz 16 GB DDR4-SDRAM 800 W

Processor generation

2nd Generation Intel® Xeon® Scalable

Thermal Design Power (TDP)

85 W

Tcase

78 °C

Supported instruction sets

AVX-512

Scalability

2S

Processor threads

16

Processor package size

76.0 x 56.5 mm

Processor operating modes

64-bit

Processor lithography

14 nm

Processor codename

Cascade Lake

Memory types supported by processor

DDR4-SDRAM

Memory clock speeds supported by processor

2400 MHz

Maximum number of PCI Express lanes

48

Maximum internal memory supported by processor

1024 GB

Execute Disable Bit

Yes

Embedded options available

No

Processor cache

11 MB

Processor frequency

2.1 GHz

Processor boost frequency

3.2 GHz

Number of processors installed

1

Processor model

4208

Processor socket

LGA 3647 (Socket P)

Processor cores

8

Processor manufacturer

Intel

Motherboard chipset

Intel® C624

Processor family

Intel Xeon Silver

Internal memory

16 GB

Memory slots

24

Memory clock speed

2933 MHz

Maximum internal memory

1000 GB

Internal memory type

DDR4-SDRAM

Supported storage drive interfaces

SAS- Serial ATA- Serial ATA III

Supported HDD sizes

2.5-3.5"

RAID support

Yes

RAID levels

5- 6

Maximum storage capacity

12 TB

On-board graphics card model

Not available

Ethernet LAN

Yes

Ethernet interface type

Gigabit Ethernet

Cabling technology

10/100/1000Base-T(X)

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

5

VGA (D-Sub) ports quantity

2

USB 2.0 ports quantity

1

Serial ports quantity

1

RS-232 ports

1

Ethernet LAN (RJ-45) ports

4

PCI Express x16 (Gen 3.x) slots

3

PCI Express slots version

3.0

PCI Express x8 (Gen 3.x) slots

3

Rack rails

Yes

Rack mounting

Yes

Chassis type

Rack (2U)

Product colour

Black

Compatible operating systems

- Microsoft Hyper-V Server R2 2012 - Microsoft Windows Server 2012 R2 Datacenter - Microsoft Windows Server 2012 R2 Standard - Microsoft Windows Server 2012 R2 Essentials - Microsoft Windows Server 2012 R2 Foundation - Microsoft Windows Storage Server 2012 R2 Standard - Microsoft Hyper-V Server 2012 - Microsoft Windows Server 2012 Datacenter - Microsoft Windows Server 2012 Standard - Microsoft Windows Server 2012 Essentials - Microsoft Windows Storage Server 2012 Standard - Microsoft Hyper-V Server 2008 R2 - Microsoft Windows Server 2008 R2 Datacenter - Microsoft Windows Server 2008 R2 Enterprise - Microsoft Windows Server 2008 R2 Standard - Microsoft Windows Small Business Server 2011 Premium Add-On - Microsoft Windows Small Business Server Standard 2011 - Microsoft Windows Server 2008 Datacenter - Microsoft Windows Server 2008 Enterprise - Microsoft Windows Server 2008 Standard - VMware vSphere 5.5 Embedded - VMware vSphere 5.5 - VMware vSphere 5.0 Embedded - VMware vSphere 5.0 - VMware vSphere 4.1 - VMware vSphere 4.1 Embedded - VMware vSphere 4.1 Installable - SUSE Linux Enterprise Server 11 - Red Hat Enterprise Linux 6 - Red Hat Enterprise Linux 5 - Red Hat Enterprise Linux 5 w/XEN - Citrix XenServer

Harmonized System (HS) code

84714100

Compatible operating systems

- Microsoft Hyper-V Server R2 2012 - Microsoft Windows Server 2012 R2 Datacenter - Microsoft Windows Server 2012 R2 Standard - Microsoft Windows Server 2012 R2 Essentials - Microsoft Windows Server 2012 R2 Foundation - Microsoft Windows Storage Server 2012 R2 Standard - Microsoft Hyper-V Server 2012 - Microsoft Windows Server 2012 Datacenter - Microsoft Windows Server 2012 Standard - Microsoft Windows Server 2012 Essentials - Microsoft Windows Storage Server 2012 Standard - Microsoft Hyper-V Server 2008 R2 - Microsoft Windows Server 2008 R2 Datacenter - Microsoft Windows Server 2008 R2 Enterprise - Microsoft Windows Server 2008 R2 Standard - Microsoft Windows Small Business Server 2011 Premium Add-On - Microsoft Windows Small Business Server Standard 2011 - Microsoft Windows Server 2008 Datacenter - Microsoft Windows Server 2008 Enterprise - Microsoft Windows Server 2008 Standard - VMware vSphere 5.5 Embedded - VMware vSphere 5.5 - VMware vSphere 5.0 Embedded - VMware vSphere 5.0 - VMware vSphere 4.1 - VMware vSphere 4.1 Embedded - VMware vSphere 4.1 Installable - SUSE Linux Enterprise Server 11 - Red Hat Enterprise Linux 6 - Red Hat Enterprise Linux 5 - Red Hat Enterprise Linux 5 w/XEN - Citrix XenServer

Enhanced Intel SpeedStep Technology

Yes

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Intel VT-x with Extended Page Tables (EPT)

Yes

Intel® Turbo Boost Technology

2.0

Intel TSX-NI

Yes

Intel Trusted Execution Technology

Yes

Intel® Hyper Threading Technology (Intel® HT Technology)

Yes

Intel® AES New Instructions (Intel® AES-NI)

Yes

Intel 64

Yes

Intel Virtualization Technology (VT-x)

Yes

Processor ARK ID

193390

Number of main power supplies

1

Number of redundant power supplies installed

1

Number of redundant power supplies supported

2

Redundant power supply (RPS) support

Yes

Power supply

800 W

Operating relative humidity (H-H)

10 - 85%

Operating temperature (T-T)

5 - 40 °C

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Supported HDD sizes

2.5-3.5"

RS-232 ports

1

Rack rails

Yes

Rack mounting

Yes

Ethernet interface type

Gigabit Ethernet

Chassis type

Rack (2U)

PCI Express x8 (Gen 3.x) slots

3

Harmonized System (HS) code

84714100

Width

482.4 mm

Height

86.6 mm

Depth

770 mm
