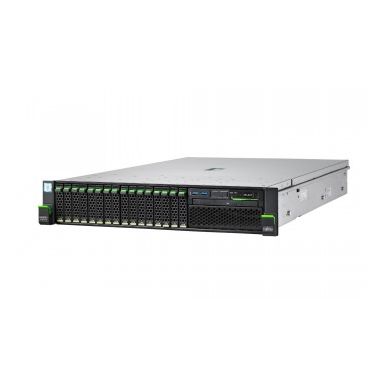

Fujitsu PRIMERGY RX2520 M5 server Intel Xeon 2.1 GHz 16 GB DDR4-SDRAM Rack
In Stock
|
Call For Price
(0808 189 1246)
Processor
Processor generation
2nd Generation Intel® Xeon® Scalable
Thermal Design Power (TDP)
85 W
Tcase
78 °C
Supported instruction sets
AVX-512
Scalability
2S
Processor threads
16
Processor package size
76.0 x 56.5 mm
Processor operating modes
64-bit
Processor lithography
14 nm
Processor codename
Cascade Lake
Memory types supported by processor
DDR4-SDRAM
Memory clock speeds supported by processor
2400 MHz
Maximum number of PCI Express lanes
48
Maximum internal memory supported by processor
1024 GB
Execute Disable Bit
Yes
Embedded options available
No
Processor cache
11 MB
Processor frequency
2.1 GHz
Processor boost frequency
3.2 GHz
Number of processors installed
1
Processor model
4208
Processor socket
LGA 3647 (Socket P)
Processor cores
8
Processor manufacturer
Intel
Motherboard chipset
Intel® C624
Maximum number of SMP processors
2
Processor family
Intel Xeon Silver
Memory
Internal memory
16 GB
Memory slots
12
Memory clock speed
2933 MHz
Maximum internal memory
384 GB
Internal memory type
DDR4-SDRAM
Storage
Hot-swap
Yes
RAID support
Yes
RAID levels
0, 1, 10
Optical drive type
DVD-RW
Number of HDDs supported
8
Hot-Plug support
Yes
Graphics
On-board graphics card model
Not available
Network
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
Cabling technology
10/100/1000Base-T(X)
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
6
VGA (D-Sub) ports quantity
1
USB 2.0 ports quantity
1
Ethernet LAN (RJ-45) ports
2
Expansion slots
PCI Express x16 (Gen 3.x) slots
1
PCI Express slots version
3.0
PCI Express x8 (Gen 3.x) slots
3
Optical drive
Optical drive type
DVD-RW
Design
Redundant fans support
Yes
Rack rails
Yes
Rack mounting
Yes
Optical drive type
DVD-RW
Chassis type
Rack (2U)
Performance
Compatible operating systems
Microsoft Hyper-V Server 2016
Microsoft Windows Server 2016 Datacenter
Microsoft Windows Server 2016 Standard
Microsoft Windows Server 2016 Essentials
Microsoft Windows Storage Server 2016 Standard
Microsoft Hyper-V Server 2012 R2
Microsoft Windows Server 2012 R2 Datacenter
Microsoft Windows Server 2012 R2 Standard
Microsoft Windows Server 2012 R2 Essentials
Microsoft Windows Storage Server 2012 R2 Standard
VMware vSphere 6.5
VMware vSphere 6.0
SUSE Linux Enterprise Server 12
Red Hat Enterprise Linux 7
Red Hat Enterprise Linux 6
Univention Corporate Server 4
Operating system installed
No
Harmonized System (HS) code
84714100
Software
Compatible operating systems
Microsoft Hyper-V Server 2016
Microsoft Windows Server 2016 Datacenter
Microsoft Windows Server 2016 Standard
Microsoft Windows Server 2016 Essentials
Microsoft Windows Storage Server 2016 Standard
Microsoft Hyper-V Server 2012 R2
Microsoft Windows Server 2012 R2 Datacenter
Microsoft Windows Server 2012 R2 Standard
Microsoft Windows Server 2012 R2 Essentials
Microsoft Windows Storage Server 2012 R2 Standard
VMware vSphere 6.5
VMware vSphere 6.0
SUSE Linux Enterprise Server 12
Red Hat Enterprise Linux 7
Red Hat Enterprise Linux 6
Univention Corporate Server 4
Operating system installed
No
Processor special features
Enhanced Intel SpeedStep Technology
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel® Turbo Boost Technology
2.0
Intel TSX-NI
Yes
Intel Trusted Execution Technology
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Intel 64
Yes
Intel Virtualization Technology (VT-x)
Yes
Processor ARK ID
193390
Power
Redundant power supply (RPS) support
Yes
Power supply
450 W
Operational conditions
Operating relative humidity (H-H)
10 - 85%
Operating temperature (T-T)
5 - 45 °C
Certificates
Certification
CB, RoHS, WEEE, GS, CE, CSAc/us, FCC Class A, ICES-003/NMB-003 Class A, VCCI:V3 Class A + JIS 61000-3-2, EAC, KC, CCC, RCM, BSMI
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Redundant fans support
Yes
Rack rails
Yes
Rack mounting
Yes
Hot-Plug support
Yes
Ethernet interface type
Gigabit Ethernet
Chassis type
Rack (2U)
PCI Express x8 (Gen 3.x) slots
3
Logistics data
Harmonized System (HS) code
84714100
Weight & dimensions
Width
482.4 mm
Weight
25 kg
Height
86.6 mm
Depth
770 mm
