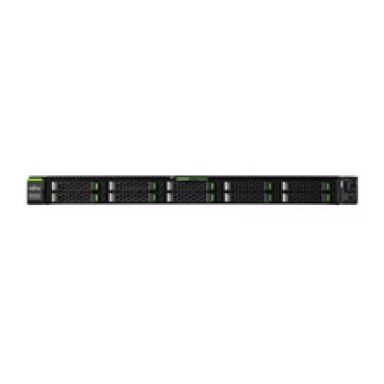

Fujitsu PRIMERGY RX2530 M5 server 2.1 GHz Intel Xeon Silver Rack (1U) 450 W
In Stock
|
Call For Price
(0808 189 1246)
Processor
Processor generation
2nd Generation Intel® Xeon® Scalable
Thermal Design Power (TDP)
85 W
Tcase
78 °C
Supported instruction sets
AVX-512
Scalability
2S
Processor threads
16
Processor package size
76.0 x 56.5 mm
Processor operating modes
64-bit
Processor lithography
14 nm
Processor codename
Cascade Lake
Memory types supported by processor
DDR4-SDRAM
Memory clock speeds supported by processor
2400 MHz
Maximum number of PCI Express lanes
48
Maximum internal memory supported by processor
1024 GB
Execute Disable Bit
Yes
Embedded options available
No
Processor cache
11 MB
Processor frequency
2.1 GHz
Processor boost frequency
3.2 GHz
Number of processors installed
1
Processor model
4208
Processor socket
LGA 3647 (Socket P)
Processor cores
8
Processor manufacturer
Intel
Processor family
Intel Xeon Silver
Memory
Internal memory
16 GB
Memory layout (slots x size)
1 x 16 GB
Memory slots
24
Memory clock speed
2933 MHz
Maximum internal memory
7680 GB
Internal memory type
DDR4-SDRAM
ECC
Yes
Storage
Supported storage drive interfaces
SAS, Serial ATA
Supported HDD sizes
2.5"
RAID support
Yes
RAID levels
0, 1
Optical drive type
No
Number of HDDs supported
8
Graphics
On-board graphics card model
Not available
Network
Ethernet LAN
Yes
Cabling technology
10/100/1000Base-T(X)
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
VGA (D-Sub) ports quantity
2
USB 2.0 ports quantity
1
Ethernet LAN (RJ-45) ports
2
Expansion slots
PCI Express x16 (Gen 3.x) slots
3
PCI Express slots version
3.0
PCI Express x8 (Gen 3.x) slots
1
Optical drive
Optical drive type
No
Design
Rack mounting
Yes
Optical drive type
No
Chassis type
Rack (1U)
Product colour
Black, Silver
Performance
Compatible operating systems
Microsoft Hyper-V Server 2016
Microsoft Windows Server 2016 Datacenter
Microsoft Windows Server 2016 Standard
Microsoft Windows Server 2016 Essentials
Microsoft Windows Storage Server 2016 Standard
Microsoft Hyper-V Server 2012 R2
Microsoft Windows Server 2012 R2 Datacenter
Microsoft Windows Server 2012 R2 Standard
Microsoft Windows Server 2012 R2 Essentials
Microsoft Windows Server 2012 R2 Foundation
Microsoft Windows Storage Server 2012 R2 Standard
VMware vSphere 6.5
VMware vSphere 6.0
SUSE Linux Enterprise Server 12
SUSE Linux Enterprise Server 11
Red Hat Enterprise Linux 7
Red Hat Enterprise Linux 6
Oracle Linux 7
Operating system installed
No
Harmonized System (HS) code
84714100
Software
Compatible operating systems
Microsoft Hyper-V Server 2016
Microsoft Windows Server 2016 Datacenter
Microsoft Windows Server 2016 Standard
Microsoft Windows Server 2016 Essentials
Microsoft Windows Storage Server 2016 Standard
Microsoft Hyper-V Server 2012 R2
Microsoft Windows Server 2012 R2 Datacenter
Microsoft Windows Server 2012 R2 Standard
Microsoft Windows Server 2012 R2 Essentials
Microsoft Windows Server 2012 R2 Foundation
Microsoft Windows Storage Server 2012 R2 Standard
VMware vSphere 6.5
VMware vSphere 6.0
SUSE Linux Enterprise Server 12
SUSE Linux Enterprise Server 11
Red Hat Enterprise Linux 7
Red Hat Enterprise Linux 6
Oracle Linux 7
Operating system installed
No
Processor special features
Enhanced Intel SpeedStep Technology
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel® Turbo Boost Technology
2.0
Intel TSX-NI
Yes
Intel Trusted Execution Technology
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Intel 64
Yes
Intel Virtualization Technology (VT-x)
Yes
Processor ARK ID
193390
Power
Power supply
450 W
Operational conditions
Operating relative humidity (H-H)
10 - 85%
Operating temperature (T-T)
5 - 45 °C
Certificates
Certification
CB, RoHS, WEEE, GS, CE, CSAc/us, FCC Class A, ICES-003 / NMB-003 Class A, VCCI:V3 Class A + JIS 61000-3-2, EAC, KC, CCC, RCM, BIS R41004006
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Supported HDD sizes
2.5"
Rack mounting
Yes
Chassis type
Rack (1U)
PCI Express x8 (Gen 3.x) slots
1
Weight & dimensions
Width
483 mm
Weight
16 kg
Height
43 mm
Depth
770.7 mm
