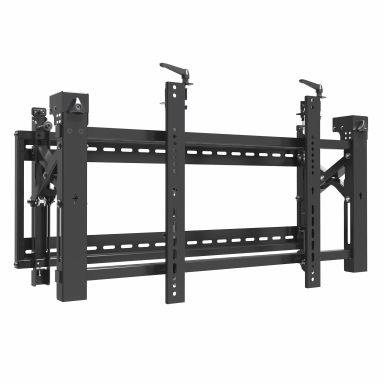

StarTech.com Video Wall Mount - Pop-Out Design - Micro-Adjustment
In Stock
|
Call For Price
(0808 189 1246)
Mounting
Minimum screen size
114.3 cm (45")
Maximum weight capacity
70 kg
Panel mounting interface
200 x 200-300 x 300-400 x 200-400 x 400-600 x 400
Number of displays supported
1
Mounting type
Wall
Minimum VESA mount
200 x 200 mm
Maximum VESA mount
600 x 400 mm
Maximum screen size
177.8 cm (70")
Ergonomics
Swivel angle range
-1.2 - 1.2°
Tilt angle range
-5 - 3°
Distance to the wall (min)
14.2 cm
Distance to the wall (max)
30.6 cm
Design
Housing material
Aluminium- Steel
Certification
CE- REACH
Product colour
Black
Accepts padlock
Yes
Weight & dimensions
Width
306 mm
Depth
934 mm
Height
483 mm
Weight
13.5 kg
Depth (max)
93.4 cm
Package width
510 mm
Package depth
1000 mm
Package height
209 mm
Package weight
16.4 kg
Packaging data
Package width
510 mm
Package depth
1000 mm
Package height
209 mm
Package weight
16.4 kg
Packaging content
Wrench type
Hexagonal wrench
Wrench included
Yes
Washers included
Yes
Spacer included
Yes
Screws included
Yes
Number of washers included
6
Number of spacers included
12
Number of screws
26
Manual
Yes
Technical details
Number of displays supported
1
Mounting type
Wall
Distance to the wall (min)
14.2 cm
Distance to the wall (max)
30.6 cm
Sustainability certificates
RoHS
Certificates
Certification
CE- REACH
Logistics data
Master (outer) case width
510 mm
Master (outer) case length
1010 mm
Master (outer) case height
209 mm
Products per master (outer) case
1 pc(s)
Harmonized System (HS) code
85299097
StarTech.com Video Wall Mount - Pop-Out Design - Micro-Adjustment
