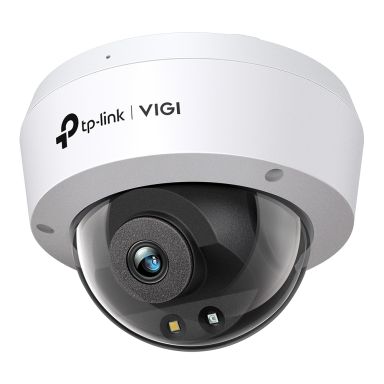

TP-Link VIGI 5MP Full-Color Dome Network Camera
In Stock
|
$119.78
$143.74 (Inc. VAT)
Performance
Infrared (IR) cut-off filter
Yes
Type
IP security camera
Connectivity technology
Wired
Placement supported
Indoor & outdoor
Day/night mode
Yes
Certification
CE, NTRA, VCCI, KC, BSMI, FCC, IC
Dynamic range
120 dB
Design
Weatherproof
Yes
IK code
IK10
Form factor
Dome
Product colour
White, Black
Mounting type
Ceiling
International Protection (IP) code
IP67
Housing material
Plastic
Camera
Minimum illumination
0.005 lx
Field of view (FOV) angle
107°
Tilt angle range
0 - 85°
Pan range
0 - 360°
Camera shutter speed
1/3 - 1/10000 s
Lens viewing angle, horizontal
90°
Lens viewing angle, vertical
48°
Lens viewing angle, diagonal
107°
Image sensor
Sensor type
CMOS
Optical sensor size
25.4 / 2.7 mm (1 / 2.7")
Number of sensors
1
Lens system
Number of lenses
1
Maximum aperture number
1.6
Detect distance
80 m
Observe distance
33 m
Recognize distance
16 m
Identify distance
8 m
Fixed focal length
4 mm
Night vision
Night vision
Yes
Night vision distance
30 m
Infra-red wavelength
850 nm
Video
Bit rate control
Variable Bit Rate (VBR)
Bit rate
256 Kbps - 6 Mbps
Maximum resolution
2880 x 1620 pixels
Video formats supported
H.264, H.264+, H.265, H.265+
Supported graphics resolutions
1280 x 720 (HD 720), 2048 x 1280, 2304 x 1296, 2688 x 1520, 1920 x 1080 (HD 1080), 2880 x 1620
Supported video modes
1080p, 720p, 2560p, 2880p
Frame rate
30 fps
Video streaming
Yes
Total megapixels
5 MP
Video recording
Yes
Audio
Voice codecs
G.711
Sample rate
8 kHz
Signal-to-Noise Ratio (SNR)
52 dB
Built-in microphone
Yes
Network
Bluetooth
No
Ethernet interface type
Fast Ethernet
Ethernet LAN
Yes
Wi-Fi
No
Supported network protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Storage
Maximum memory card size
256 GB
Built-in HDD
No
Compatible memory cards
MicroSD (TransFlash)
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
DC-in jack
Yes
Connectivity technology
Wired
Management features
Reset button
Yes
Power
Power source type
DC
Power consumption (max)
7 W
Power consumption (typical)
1.5 W
DC-in jack
Yes
Certificates
Certification
CE, NTRA, VCCI, KC, BSMI, FCC, IC
Operational conditions
Operating temperature (T-T)
-30 - 60 °C
Storage temperature (T-T)
-40 - 60 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Weight & dimensions
Package type
Box
Height
85.7 mm
Diameter
11.5 cm
Weight
280 g
Package width
153 mm
Package height
120 mm
Package depth
193 mm
Package weight
470 g
Packaging content
Number of cameras
1
Package type
Box
TP-Link VIGI 5MP Full-Color Dome Network Camera
