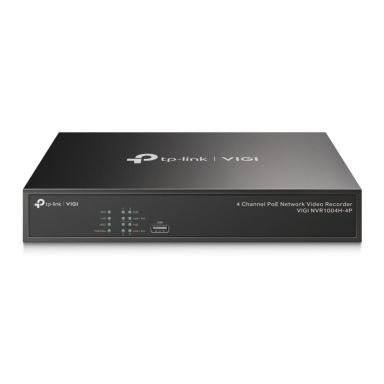

TP-Link VIGI 4 Channel PoE+ Network Video Recorder

Video input channels

4 channels

Alarm input channels

4

Alarm output channels

1

Maximum resolution

3840 x 2160 pixels

Resolution at capture speed

1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps

Video formats supported

H.264, H.264+, H.265, H.265+

Supported network protocols

TCP/IP, DHCP, DNS, NTP, UPnP

Supported resolutions

3840x2160,1920x1080, 1680x1050, 1440x900, 1280x1024, 1024x768, 1280x720

Video recording modes

720p, 1080p, 2160p

Output bandwidth

60 Mbit/s

Input bandwidth

80 Mbit/s

Wi-Fi

No

Maximum storage capacity

10 TB

HDD interface

SATA

Number of HDDs installed

0

HDD capacity

0 GB

Maximum storage capacity

10 TB

HDD interface

SATA

Number of HDDs installed

0

HDD capacity

0 GB

Ethernet LAN (RJ-45) ports

1

VGA (D-Sub) output ports

1

HDMI output

Yes

USB 2.0 ports quantity

2

Supported network protocols

TCP/IP, DHCP, DNS, NTP, UPnP

Audio RCA inputs

1

Audio RCA outputs

1

HDMI ports quantity

1

LED indicators

Yes

Product colour

Black

Output voltage

53.5 V

Output current

1.31 A

Power consumption (typical)

4.25 W

Total Power over Ethernet (PoE) budget

53 W

Operating temperature (T-T)

-10 - 55 °C

Width

246.2 mm

Depth

148.2 mm

Height

45 mm
