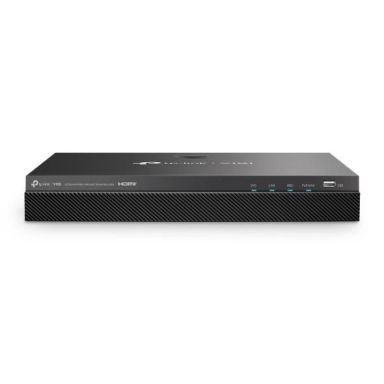

TP-Link VIGI 8 Channel PoE+ Network Video Recorder

Video input channels

8 channels

Maximum resolution

3840 x 2160 pixels

Video formats supported

H.264, H.264+, H.265, H.265+

Audio formats supported

G.711, G.711u, G.726

Ethernet LAN data rates

10,100 Mbit/s

Maximum frame rate

60 fps

Supported resolutions

3840x2160, 1920x1080, 1680x1050, 1440x900, 1280x1024, 1280x720

Video motion detection

Yes

Video loss detection

Yes

Output bandwidth

60 Mbit/s

Input bandwidth

80 Mbit/s

Wi-Fi

No

Number of HDDs supported

2

Maximum storage capacity

32 TB

HDD interface

SATA

Number of HDDs supported

2

Maximum storage capacity

32 TB

HDD interface

SATA

Ethernet LAN (RJ-45) ports

9

Power over Ethernet (PoE)

Yes

VGA (D-Sub) output ports

1

USB 2.0 ports quantity

2

eSATA

Yes

Audio RCA inputs

1

DC-in jack

Yes

Ethernet LAN data rates

10,100 Mbit/s

Audio RCA outputs

1

HDMI ports quantity

1

Storage relative humidity (H-H)

10 - 90%

LED indicators

Yes

Product colour

Black

Output voltage

53.5 V

Output current

2.43 A

Power consumption (typical)

35 W

Total Power over Ethernet (PoE) budget

93 W

Power over Ethernet (PoE) power per port

30 W

Operating temperature (T-T)

-10 - 55 °C

Operating relative humidity (H-H)

10 - 90%

Storage temperature (T-T)

-40 - 70 °C

Storage relative humidity (H-H)

10 - 90%

Width

330 mm

Depth

285 mm

Height

45 mm

Weight

2.1 kg

Package weight

4.1 kg
